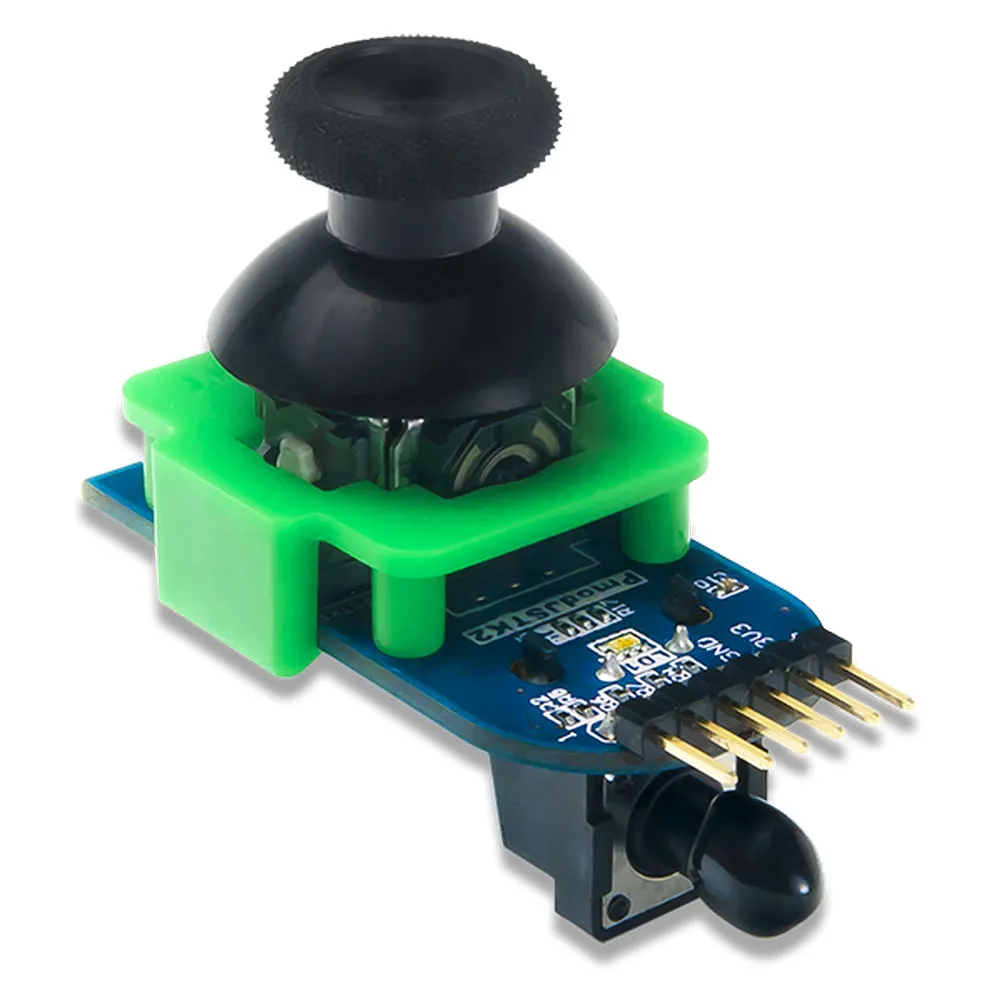

Pmod JSTK2: Two-axis Joystick Module

The Digilent Pmod JSTK2 is a versatile user input device that can be easily incorporated into a wide variety of projects. With an on-board Microchip PIC16 MCU, two-axis joystick on a center button, a trigger button, and a programmable RGB LED capable of 24-bit color, the Pmod JSTK2 is ideally suited for Digilent microcontroller or FPGA-based projects that require proportional control from the user like robotic applications.

Features

• Factory calibrated two-axis resistive joystick
• Center joystick button
• Trigger-style pushbutton
• 24-bit RGB LED
• 6-pin Pmod connector with SPI interface
• Follows Pmod Interface Specification Type 2
• Library and example code available in resource center

Shipping Contents

• One Pmod JSTK2
• Plastic motion limiter
• Custom Digilent antistatic Pmod packaging

Resources & Downloads

• Resource Center (off-site)
• Reference Manual (off-site)
• Schematic
