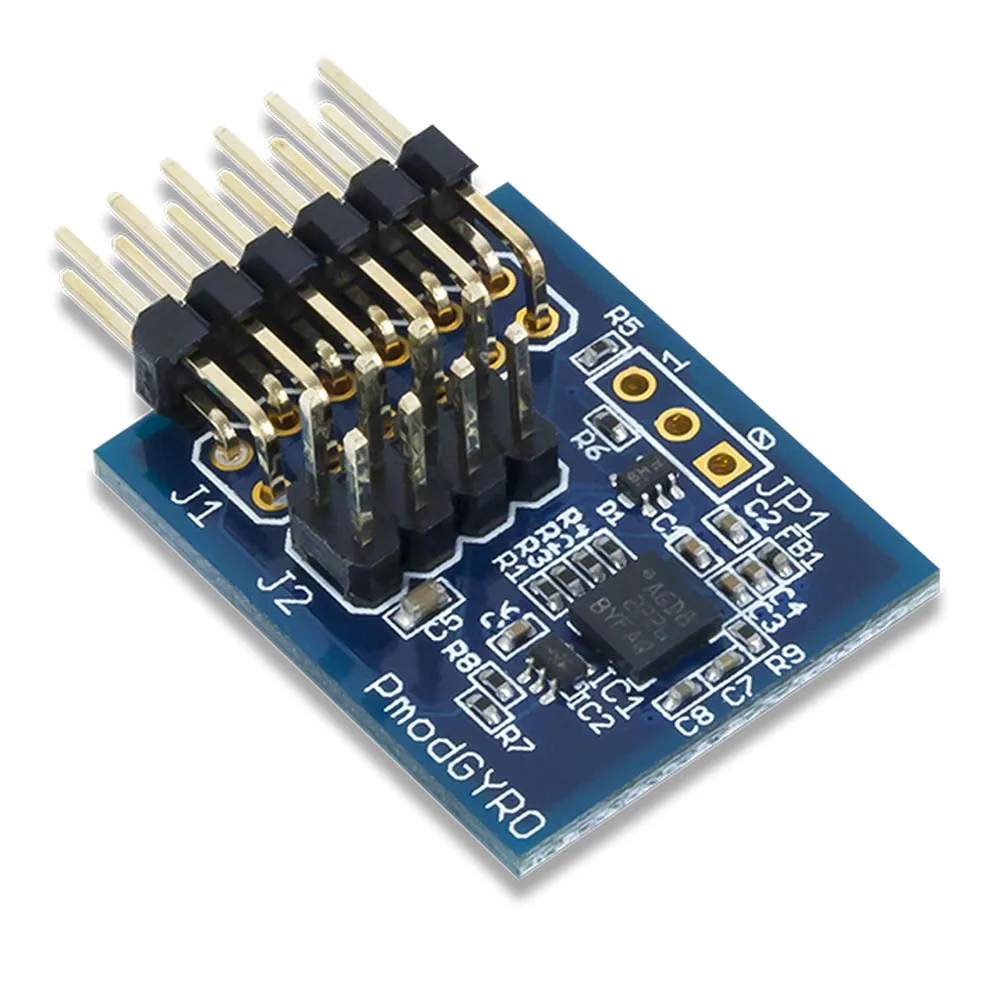

Pmod GYRO: 3-axis Digital Gyroscope Module

The Pmod GYRO is a 3-axis gyroscope powered by the ST Microelectronics L3G4200D. By communicating with the chip through SPI or I²C, users may configure the module to report angular momentum at a resolution of up to 2000 dps at an output rate up to 800Hz.

Features

• 3-axis MEMS digital gyroscope with high shock survivability
• Get angular velocity data with user selectable resolution (250/500/2000 dps)
• Two customizable interrupt pins
• User configurable signal filtering
• Power-down and Sleep modes
• Small PCB size for flexible designs 1.0 in ? 0.8 in (2.5 cm ? 2.0 cm)
• 12-pin Pmod connector with SPI interface and additional I²C interface
• Library and example code available in resource center

Shipping Contents

• One Pmod GYRO
• Custom Digilent antistatic Pmod packaging

Resources & Downloads

• Resource Center (off-site)
• Reference Manual (off-site)
• Schematic
