Pmod DIP: DIP to 12-pin Pmod Adapter Module

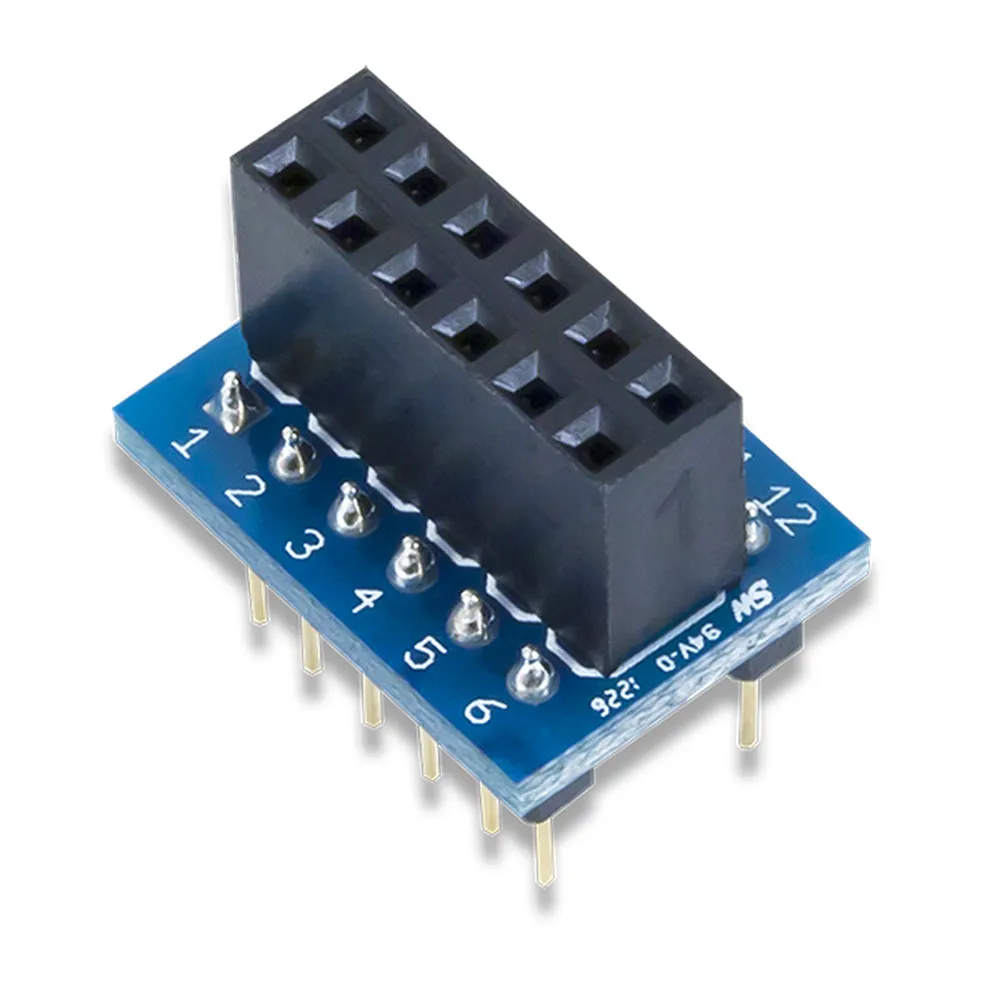

The Digilent Pmod DIP is a 12-pin dual in-line package (DIP) that also includes a 2?6 female Pmod header, allowing users to easily separate and process any signals traveling to and from their 12-pin Pmod. It allows for easy use of Digilent Pmods in DIP sockets and solderless breadboards.

Features

• 12-pin dual in-line package module
• 12-pin Pmod port for wire-free breadboard connection
• Small size 0.5" x 0.7" (1.8 cm ? 1.3 cm)

Shipping Contents

• One Pmod DIP
• Custom Digilent antistatic Pmod packaging

Resources & Downloads

• Resource Center (off-site)
• Reference Manual (off-site)
• Schematic
