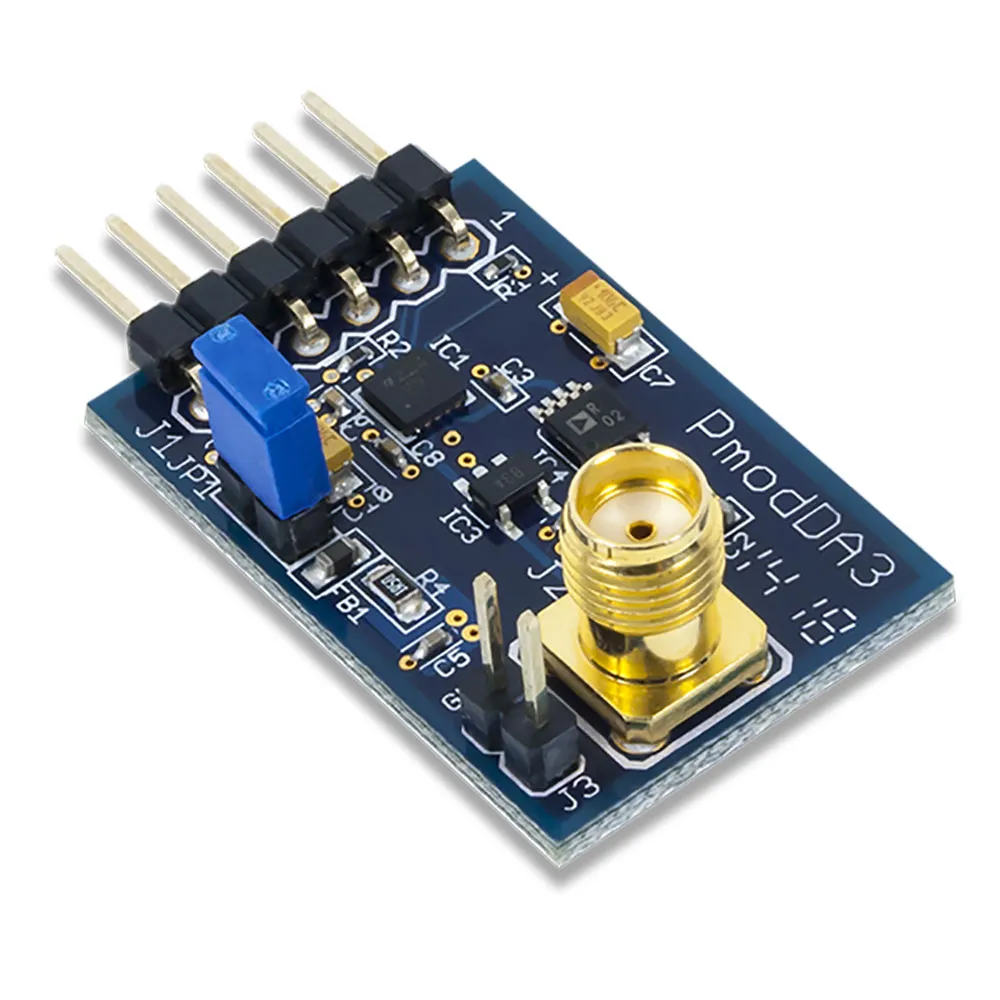

Pmod DA3: One 16-bit D/A Output

The Pmod DA3 is a 16-bit Digital-to-Analog converter powered by the Analog Devices AD5541A. The single-ended SMA output provides a clean, guaranteed monotonic analog output from the provided information given via an interface like SPI.

Features

• High resolution, 16-bit Digital-to-Analog converter
• Low noise analog output
• SMA connector
• 2.5V reference voltage
• Small PCB size for flexible designs 1.2" x 0.8" (3.0 cm x 2.0 cm)
• 6-pin Pmod connector with GPIO interface
• Follows Digilent Pmod Interface Specification Type 1

Resources & Downloads

• Reference Manual and Drawings (off-site)
• Schematic (.pdf)
• Resource Center (off-site)
