Pmod DA1: Four 8-bit D/A Outputs Module

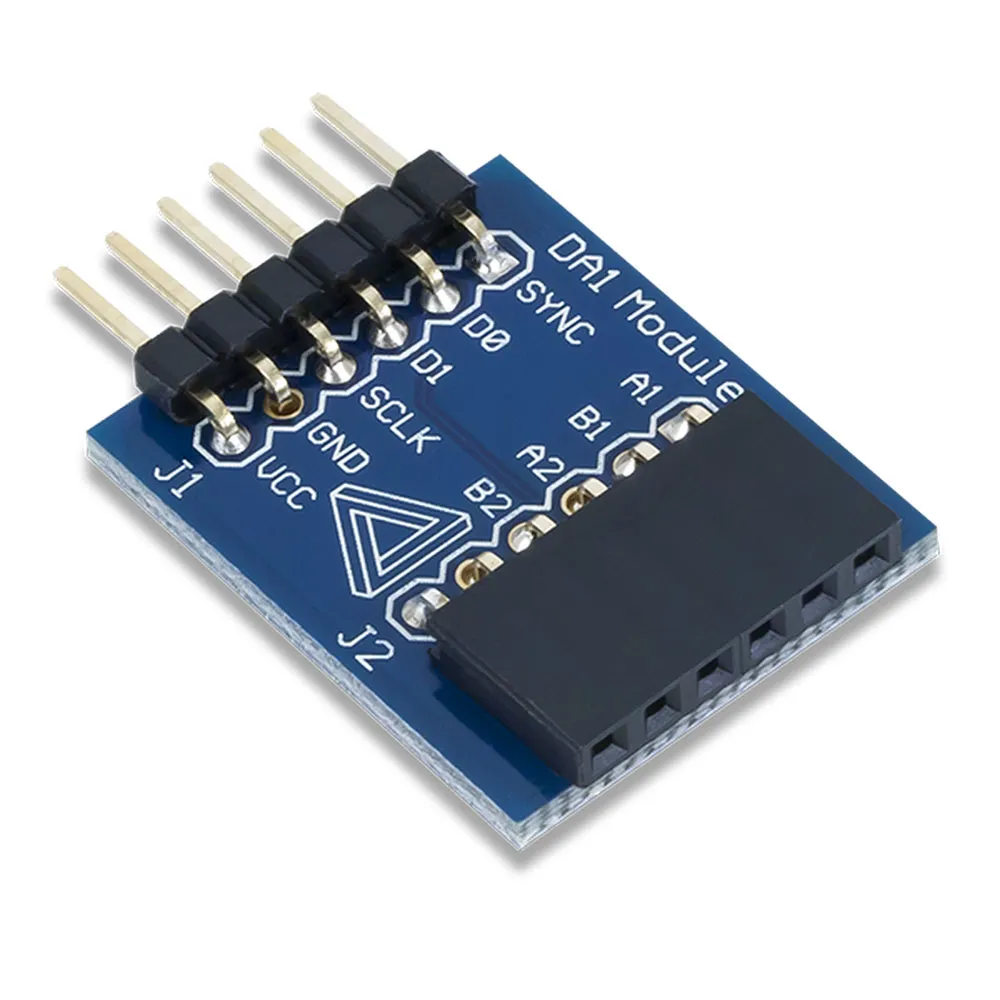

The Pmod DA1 is an 8-bit Digital-to-Analog Converter powered by two Analog Devices AD7303. With simultaneous dual outputs per single input, users can perform up to four isolated tests on the analog outputs. Users may provide data to the module through an interface like SPI.

Features

• Two 8-bit DACs
• Four D/A conversion channels
• Maximum conversion rate of 1.875 MSa
• Small PCB size for flexible designs 1.0" ? 0.8" (2.5 cm ? 2.0 cm)
• 6-pin Pmod connector with GPIO interface
• Library and example code available in resource center

Shipping Contents

• One Pmod DA1
• Custom Digilent antistatic Pmod packaging

Resources & Downloads

• Resource Center (off-site)
• Reference Manual (off-site)
• Schematic
