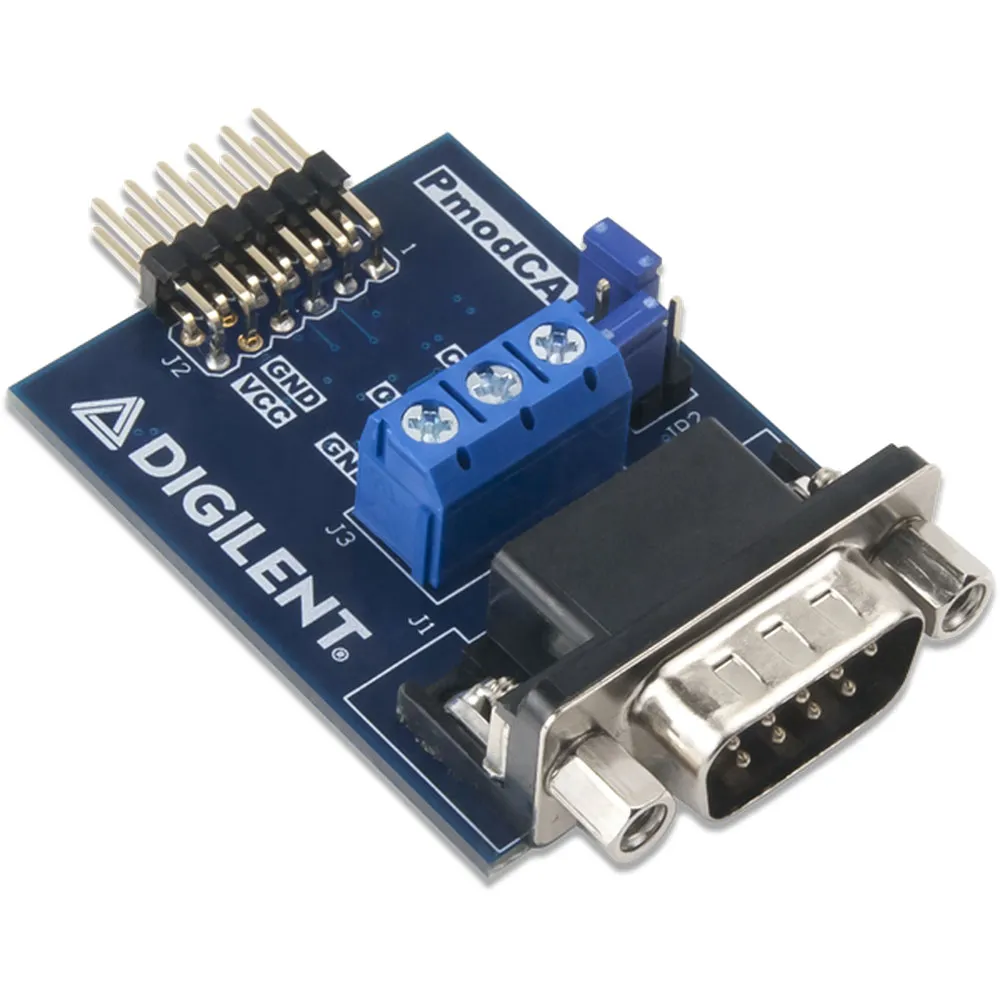

Pmod CAN: CAN 2.0B Controller with Integrated Transceiver Module

The Pmod CAN is a CAN 2.0B controller with an integrated transceiver. The embedded Microchip MCP25625 chip connects directly to the physical CAN bus and meets automotive requirements for high-speed (1 Mb/s), low quiescent current, electromagnetic compatibility, and electrostatic discharge.

Features

• CAN 2.0B controller with integrated transceiver
• Suitable for automotive applications
• Up to 1 Mb/s operation
• Up to 10 MHz SPI clock speed
• Standard DB9 connector for secure connection
• Small PCB size for flexible designs 1.4" ? 1.8" (3.6 cm ? 4.6 cm)
• 12-pin Pmod connector with SPI interface
• Follows the Digilent Pmod Interface Specification 1.1.0 type 2A
• Libraries and example code available in resource center

Shipping Contents

• One Pmod CAN
• Custom Digilent antistatic Pmod packaging

Resources & Downloads

• Resource Center (off-site)
• Reference Manual (off-site)
• Schematic
