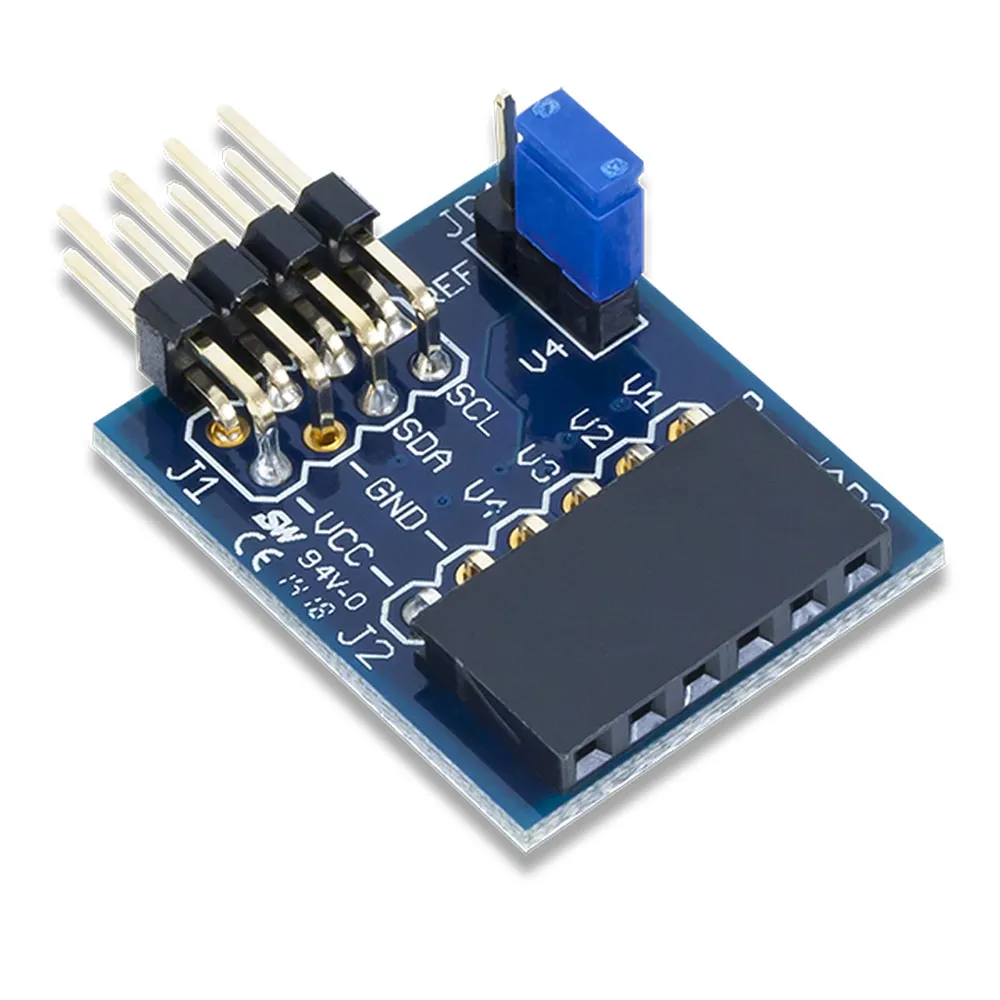

Pmod AD2: 4-channel 12-bit A/D Converter Module

The Pmod AD2 is an analog-to-digital converter powered by the Analog Devices AD7991. Users may communicate with the board through I2C to configure up to 4 conversion channels at 12 bits of resolution.

Features

• Up to four 12-bit analog-to-digital converter channels
• On-board 2.048 V voltage reference
• Jumper selectable reference input
• Small PCB size for flexible designs 1.0 in ? 0.8 in (2.5 cm ? 2.0 cm)
• Follows Digilent Pmod Interface Specification 1.0.0

Shipping Contents

• One Pmod AD2
• Custom Digilent antistatic Pmod packaging

Resources & Downloads

• Resource Center (off-site)
• Reference Manual (off-site)
• Schematic
