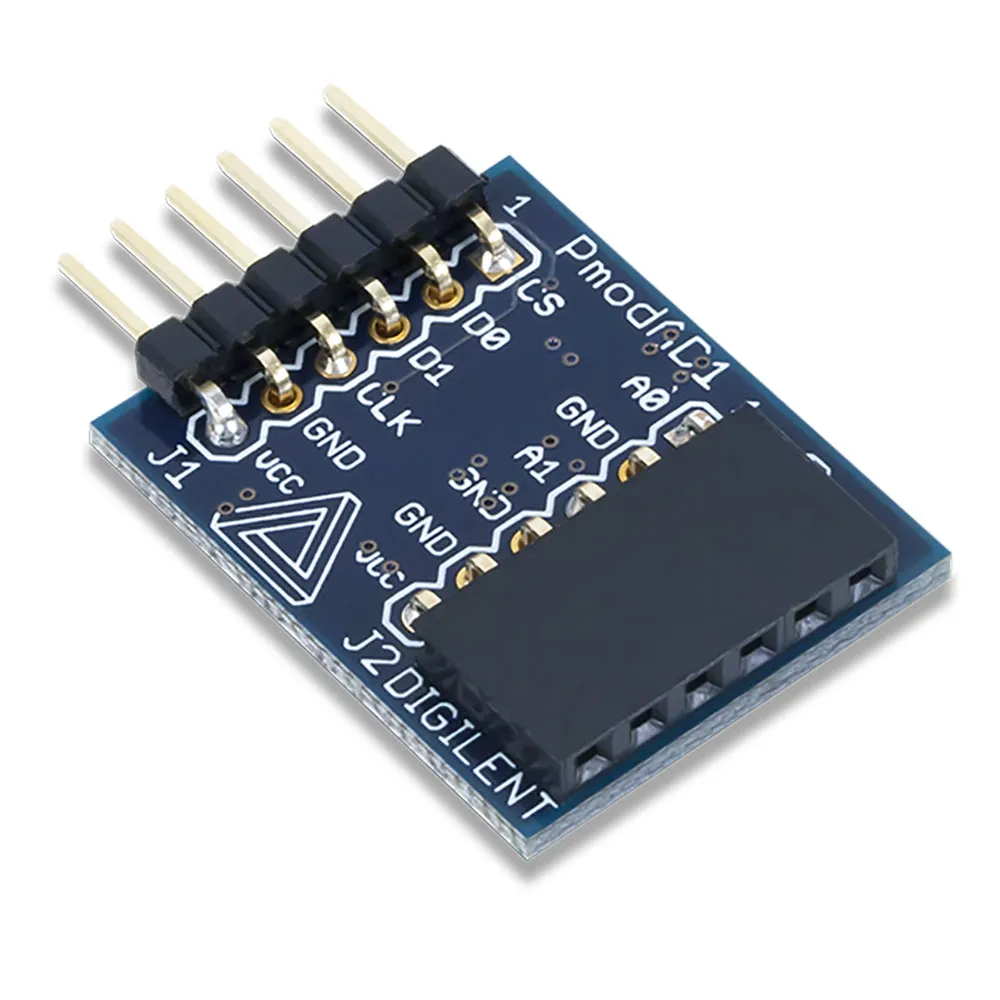

Pmod AD1: Two 12-bit A/D Inputs

The Digilent Pmod AD1 is a two channel, 12-bit analog-to-digital converter that features Analog Devices AD7476A. With a sampling rate of up to 1 million samples per second, this Pmod can excel in even the most demanding audio applications.

Features

• Two channel, 12-bit analog-to-digital converter
• Simultaneous A/D conversion at up to one MSa per channel
• Two 2-pole Sallen-Key anti-alias filters
• Small PCB size for flexible designs 0.95 in ? 0.8 in (2.4 cm ? 2.0 cm)
• 6-pin Pmod connector with SPI interface
• Library and example code available in resource center

Resources & Downloads

• Reference Manual and Drawings (off-site)
• Schematic (.pdf)
• Resource Center (off-site)
