Pmod ACL: 3-axis Accelerometer Module

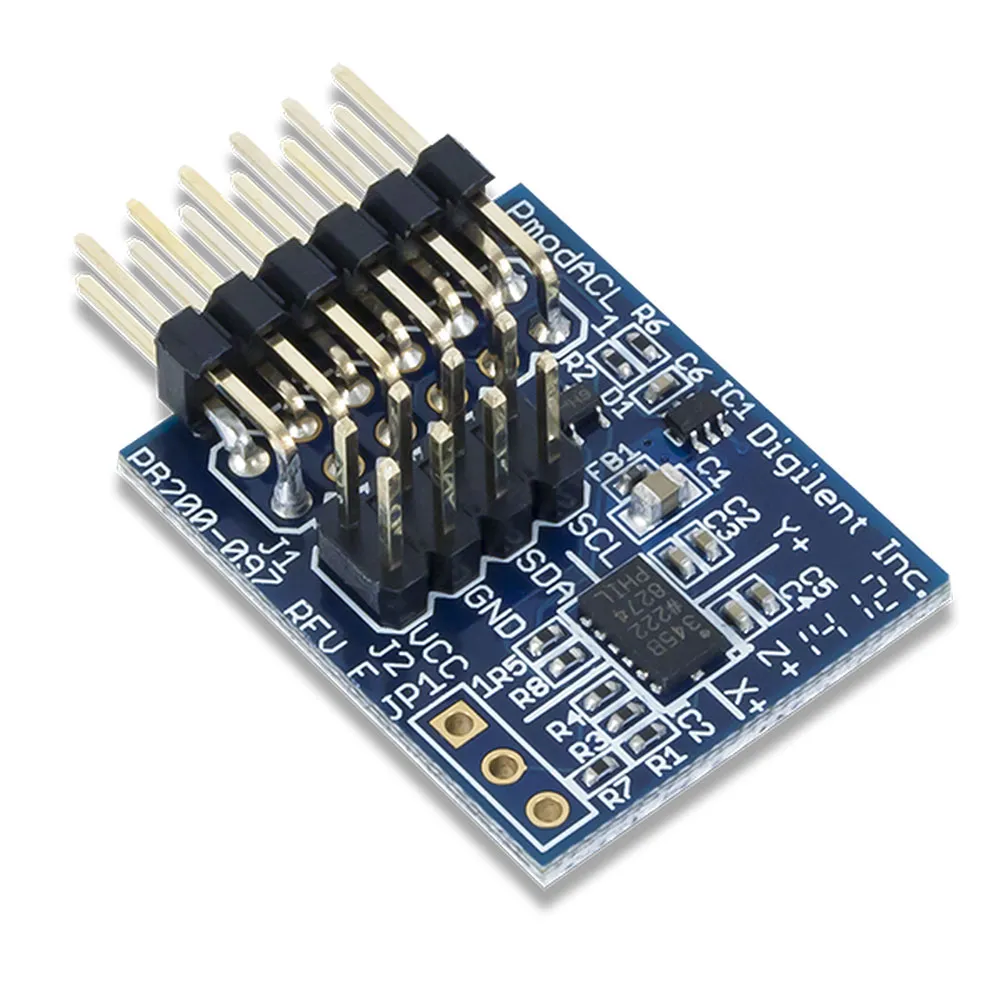

The Pmod ACL is a 3-axis digital accelerometer module that provides input to a system board. Communication via SPI or I²C with the on-board Analog Devices ADXL345 allows the user to access up to 13 bits of acceleration data, indicating the Pmod's angle of orientation.

Features

• 3-axis, ±2/4/8/16g accelerometer
• User-selectable resolution
• Activity/inactivity monitoring
• Single/double-tap and free-fall detection
• Small PCB size for flexible designs 1.0 in ? 0.8 in (2.5 cm ? 2.0 cm)
• 12-pin Pmod connector with SPI interface and 2?4-pin I²C interface
• Follows Digilent Pmod Interface Specification Type 2A

Shipping Contents

• One Pmod ACL
• Custom Digilent antistatic Pmod packaging

Resources & Downloads

• Resource Center (off-site)
• Reference Manual (off-site)
• Schematic
