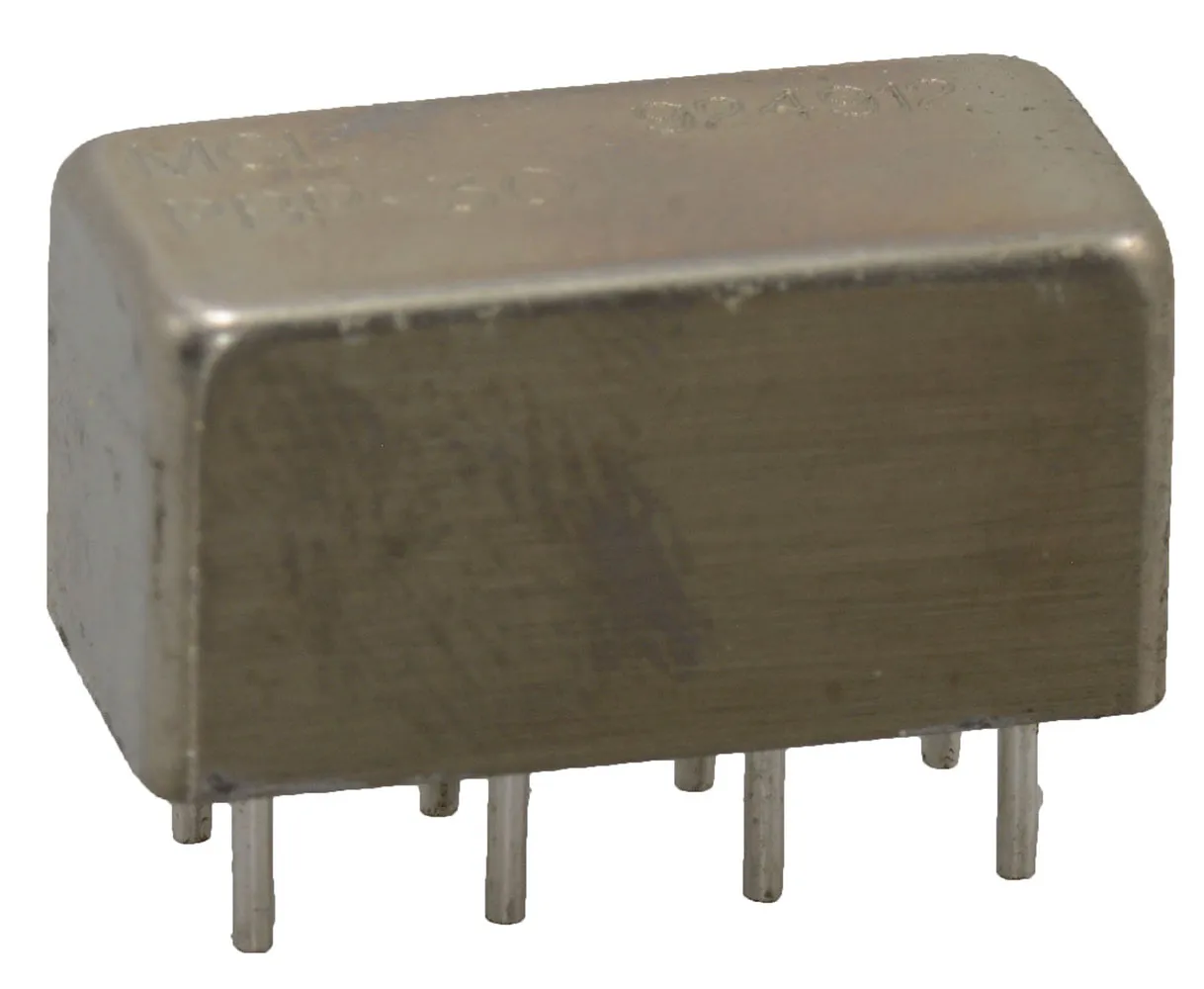

Plug-In Bandpass Filter 30Mhz Through Hole

Specifications

  • 50Ω elliptic response, 27 to 33 MHz
  • Low insertion loss, 1.5dB max.
  • Rugged shielded case, hermetically sealed
  • Mounting Type: Through Hole
  • Size: 0.8" L x 0.4" W (20.32 mm x 10.16 mm)
  • Height - Seated (Max): 0.40" (10.16 mm)
  • Operating Temperature: 0°C to 100°C

Product Identification

Product Type:Plug-In Bandpass Filter 30Mhz
Family:PBP-30

Dimensions & Appearance

Depth:10.16 mm
Height:10.16 mm
Length:20.32 mm
Mounting:Through Hole

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-55°C

Features

Case Size:A01
Frequency:30 MHz
Termination:PC Pins
,
