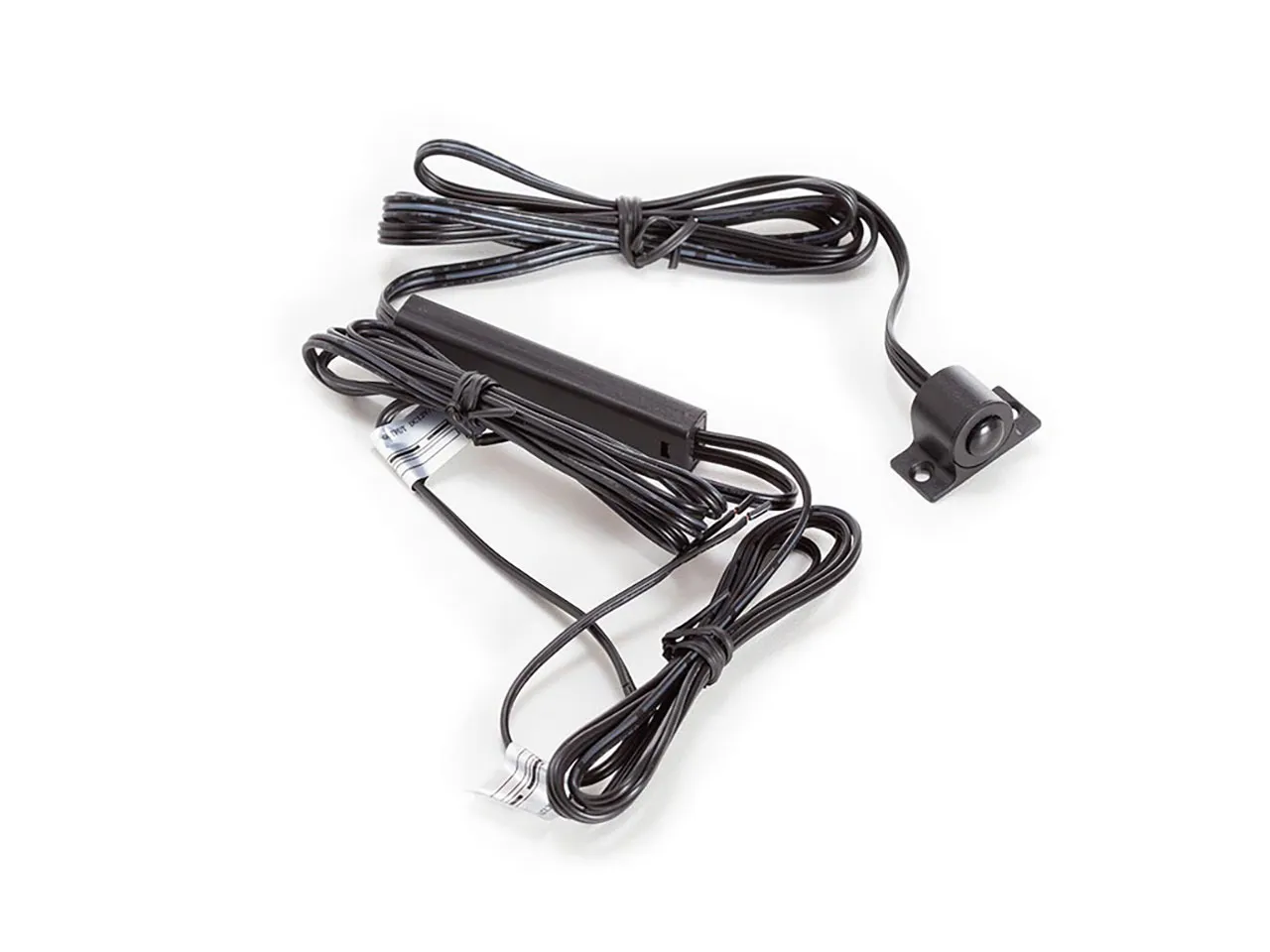

PIR Motion Detector Switch Recessed and Surface Installation 12V/24V

Features

• Primary color: Black
• Depth unit: 9 mm
• Height unit: 13 mm
• Width unit: 65 cm
• Weight unit: 44 g
• Material: ABS
• Detection Angle: 110deg;
• Maximum delay time: 50 s
• Minimum delay time: 40 s
• Maximum current rating: 3 A
• IEC protection class: Class III
• Power consumption range: 36-72 W
• Quiescent current: <1 mA
• Mounting type: Recessed, Surface mounted
• Sensor type: PIR
• Detection range: 1-3 m
• Operating temperature range: -20-45 °C
• Diameter mounting hole (mm): 13 mm
• Input voltage rating VDC range: 12-24 V

Overview

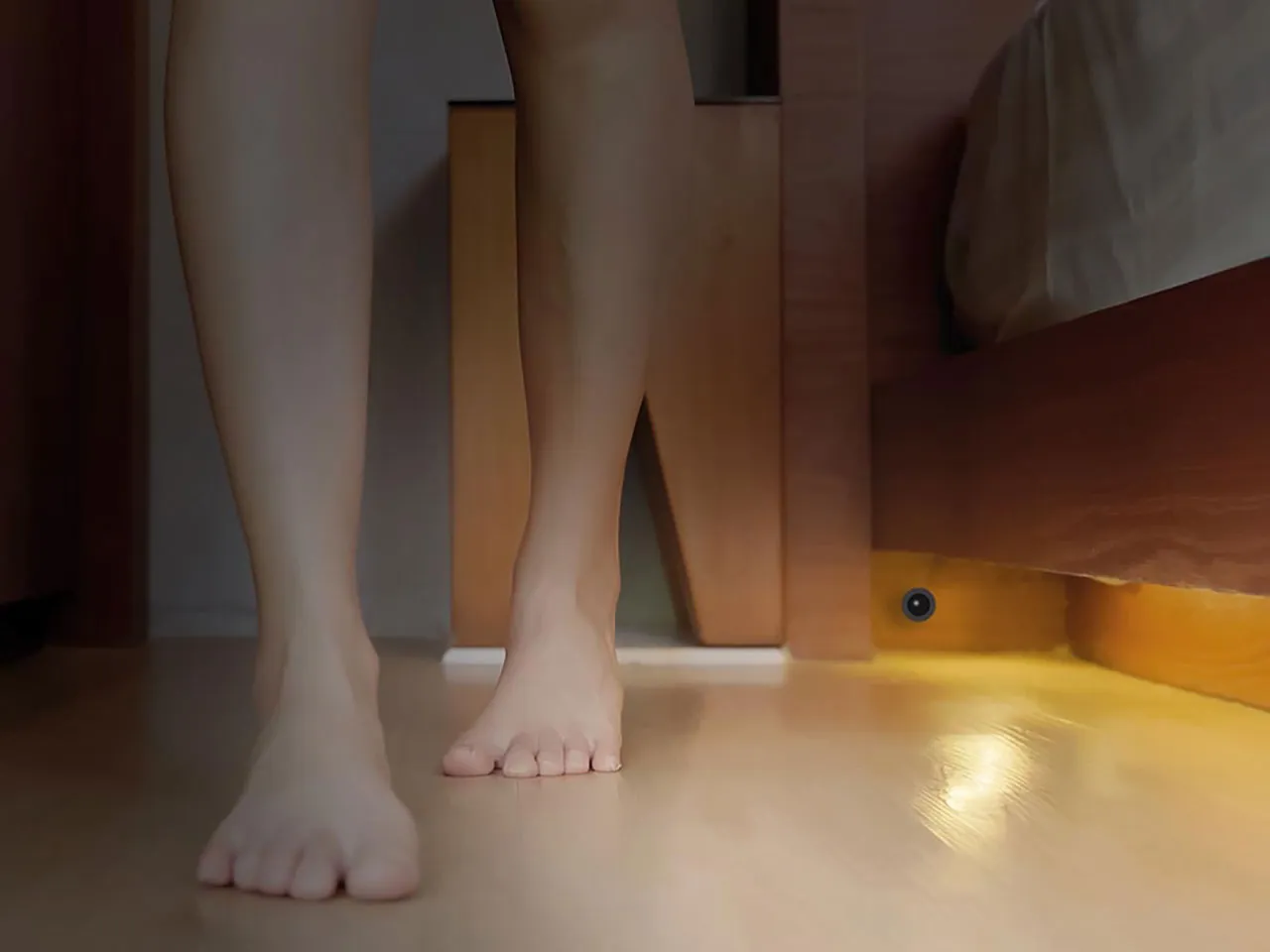

Discover the ultimate in convenience and energy efficiency with our recessed PIR motion sensor for controlling LED strips. Thanks to its compact design, this sensor can be discreetly mounted in ceilings, walls, cabinets or dressers. You have the choice of building this sensor in by simply drilling a 13mm hole or installing it as surface-mount with the included bracket. Take advantage of automatic lighting and save energy as the sensor detects motion and turns on your LED strips when needed.
