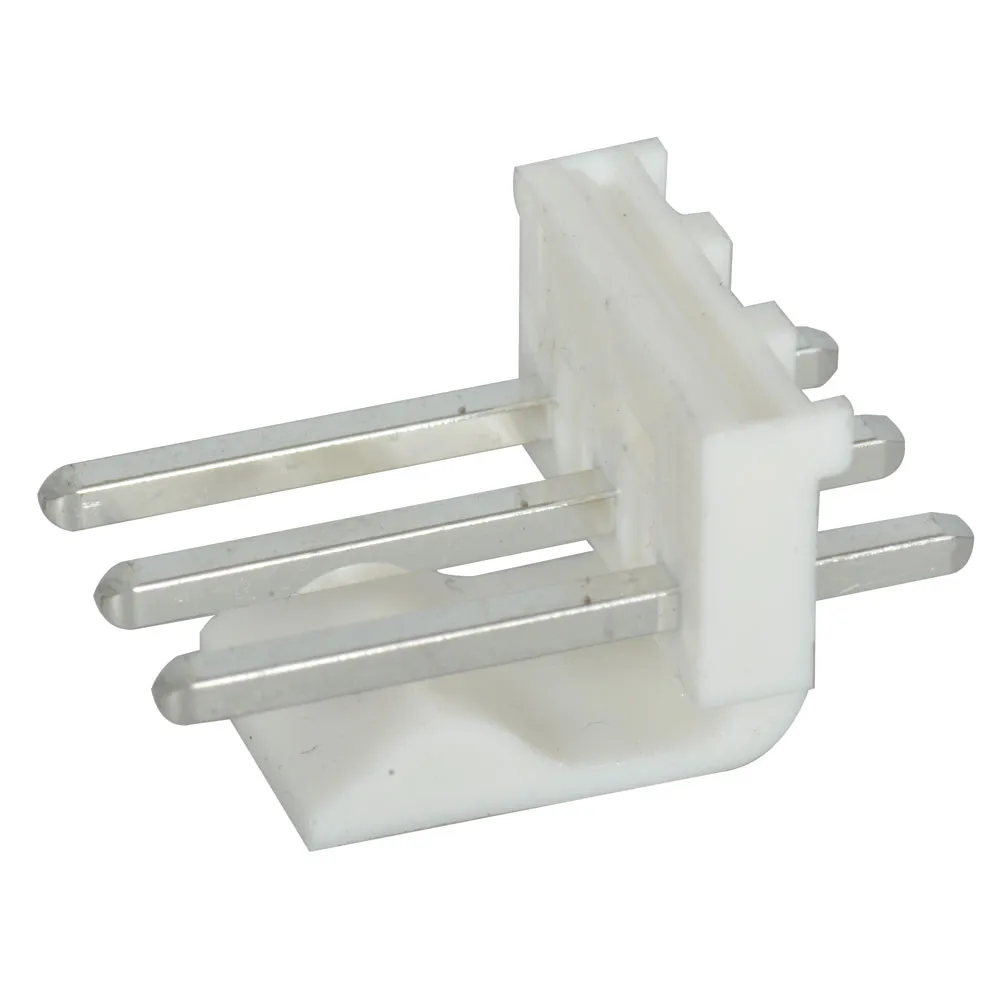

3-Position Straight Friction Lock Header

Features

  • Pitch: 3.96mm
  • Material: Brass
  • Plating: Tin over Copper

    • Product Identification

    Manufacturer Series:KK396, 41791
    Additional Feature:N/A
    Product Type:Header

    Dimensions & Appearance

    Body Orientation:Straight
    Mounting:Through Hole
    Body/Shell Style:Cable Shrouded - 1 Wall, Board to Board

    Features

    Number of Rows:1
    Fastening Method:Friction Lock
    UL Flammability Code:94 V-0
    Maximum Contact Resistance:6 mOhm
    Number of Contacts:3
    Contact Material:Brass
    Housing Color:Natural, White
    Pitch:0.156 in., 3.96 mm
    Contact Plating:Tin
    Housing Material:Polyester
    Gender:Male Pin
    Termination:Solder
    Voltage Rating:250 VAC, 250 VDC
    Current Rating:7 A
    ,
