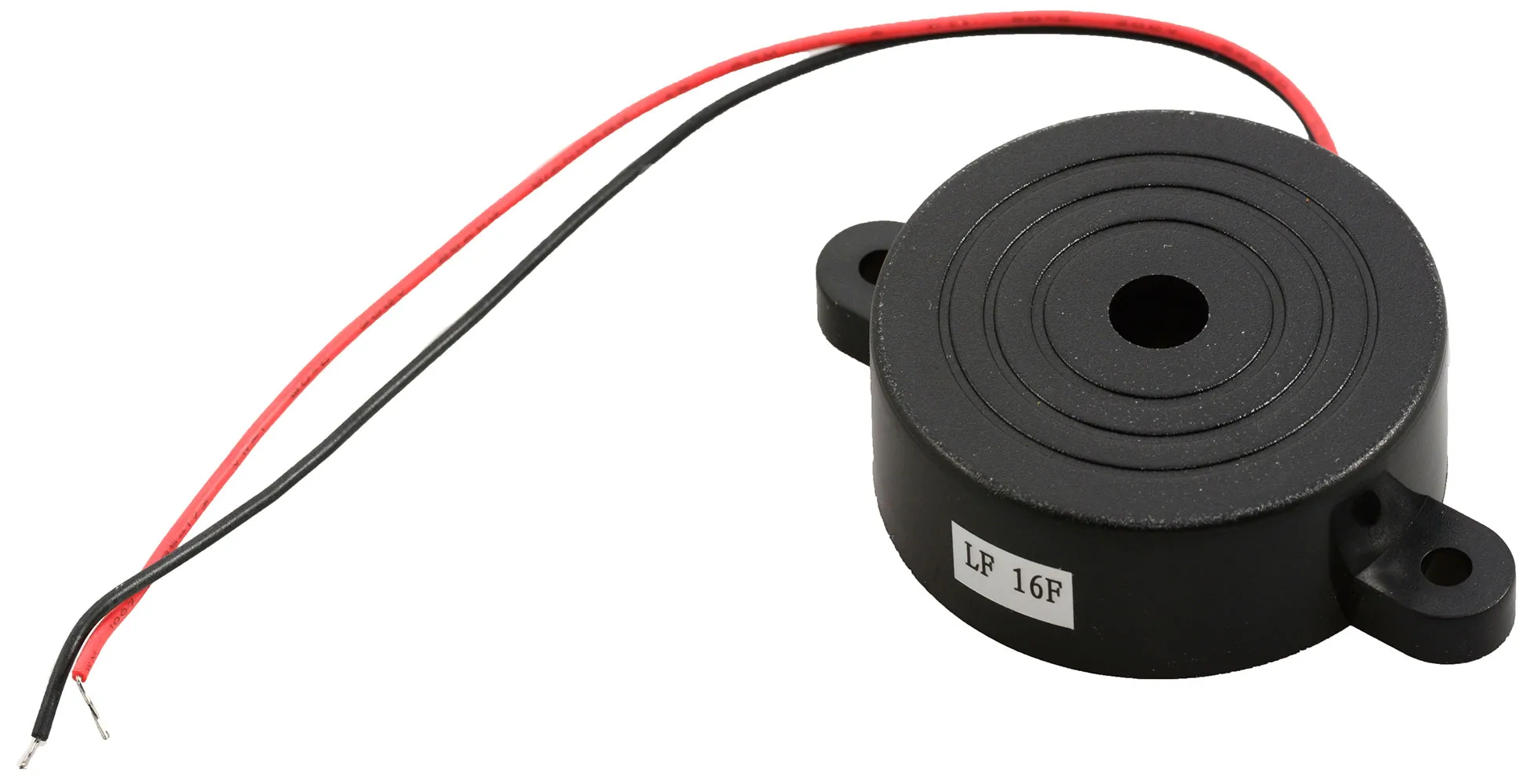

Transducer Speaker 2800 Hz 12V 7mA 100dB Panel Mount Flange Wire Leads

Specifications

  • Driver Circuitry: Transducer, Externally Driven
  • Input Type: Peak-Peak Signal
  • Voltage - Rated: 12 V
  • Voltage Range: 1 to 30 V
  • Frequency: 2.8 kHz
  • Technology: Piezo
  • Sound Pressure Level (SPL): 100 dB @ 12 V, 10 cm
  • Current - Supply: 7 mA
  • Port Location: Top
  • Operating Temperature: -20°C to 60°C
  • Mounting Type: Panel Mount, Flange
  • Termination: Wire leads
  • Size: 1.646" Dia. x 0.63"H (41.8 mm x 16 mm)

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Size (H" x Dia."):0.63 x 1.96
Mounting:Panel Mount
Diameter:1.96 in.
Height:0.63 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Voltage:12 V

Output

Output:100 dBA

Features

Voltage Range (Vp-p):1-30
Tone Mode:Transducer (External Drive)
Technology:Piezo (External Drive)
Frequency:2800 Hz
Termination Style:Wire Lead
Frequency Range:N/A
Current Rating:7 mA
,
