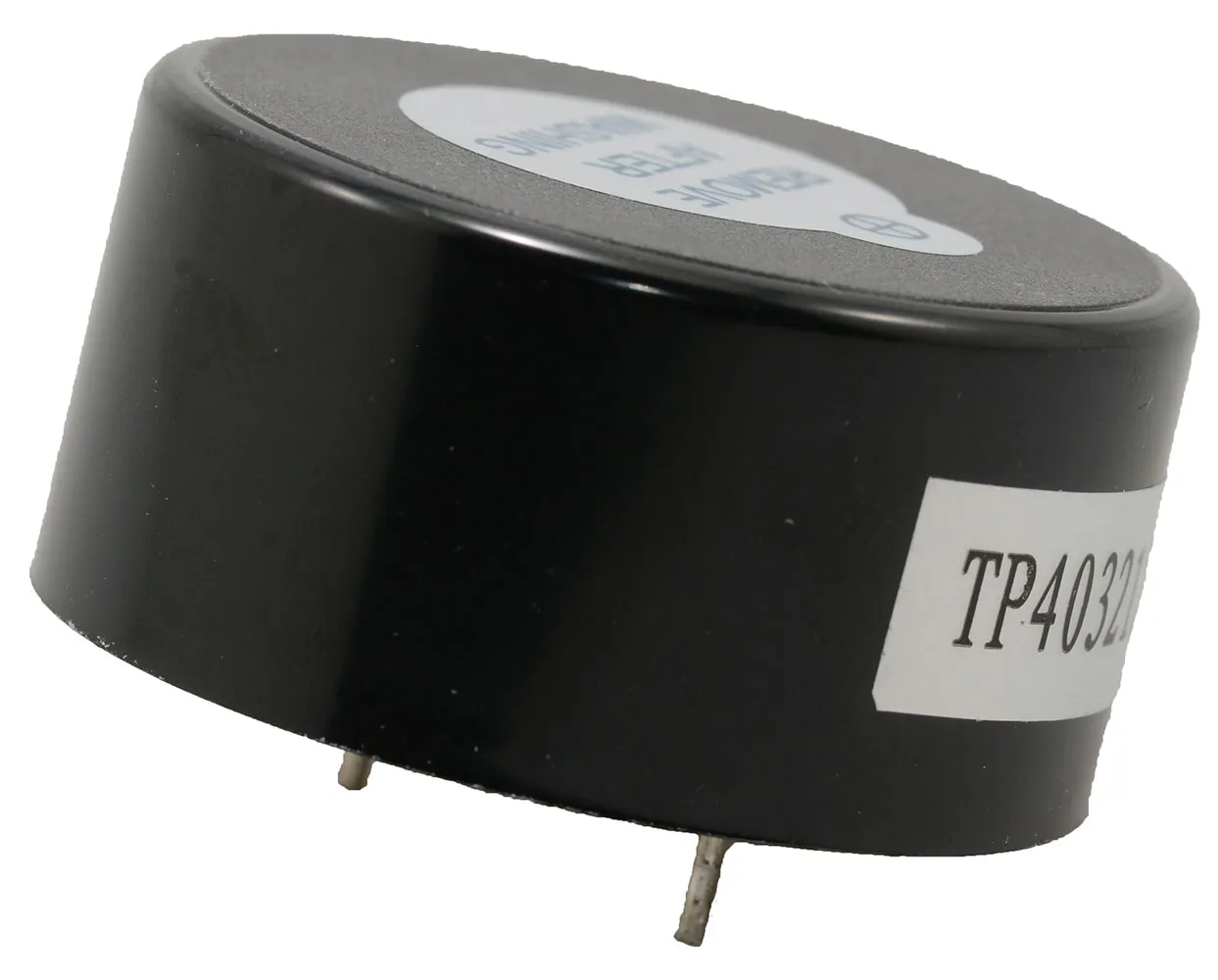

Piezo Transducer Buzzer 3200 Hz 12V 15mA 105dB 2-Pin Can

Specifications

  • Driver Circuitry: Transducer, Externally Driven
  • Input Type: Peak-Peak Signal
  • Voltage - Rated: 12 V
  • Voltage Range: 1 to 30 V
  • Frequency: 3.2 kHz
  • Technology: Piezo
  • Sound Pressure Level (SPL): 105 dB @ 12 V, 10 cm
  • Current - Supply: 15 mA
  • Port Location: Top
  • Operating Temperature: -20°C to 70°C
  • Mounting Type: Through Hole
  • Termination: PC Pins
  • Size: 1.575" Dia. x 0.787"H (40 mm x 20 mm)

Dimensions & Appearance

Diameter:1.575 in.
Height:0.787 in.
Size (H" x Dia."):0.787 x 1.575
Mounting:Through Hole

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Voltage:12 V

Output

Output:105 dBA

Features

Voltage Range (Vp-p):1-30
Tone Mode:Transducer/Speaker
Technology:Piezo
Termination Style:PC Pins
Frequency:3200 Hz
Frequency Range:N/A
Current Rating:15 mA
,
