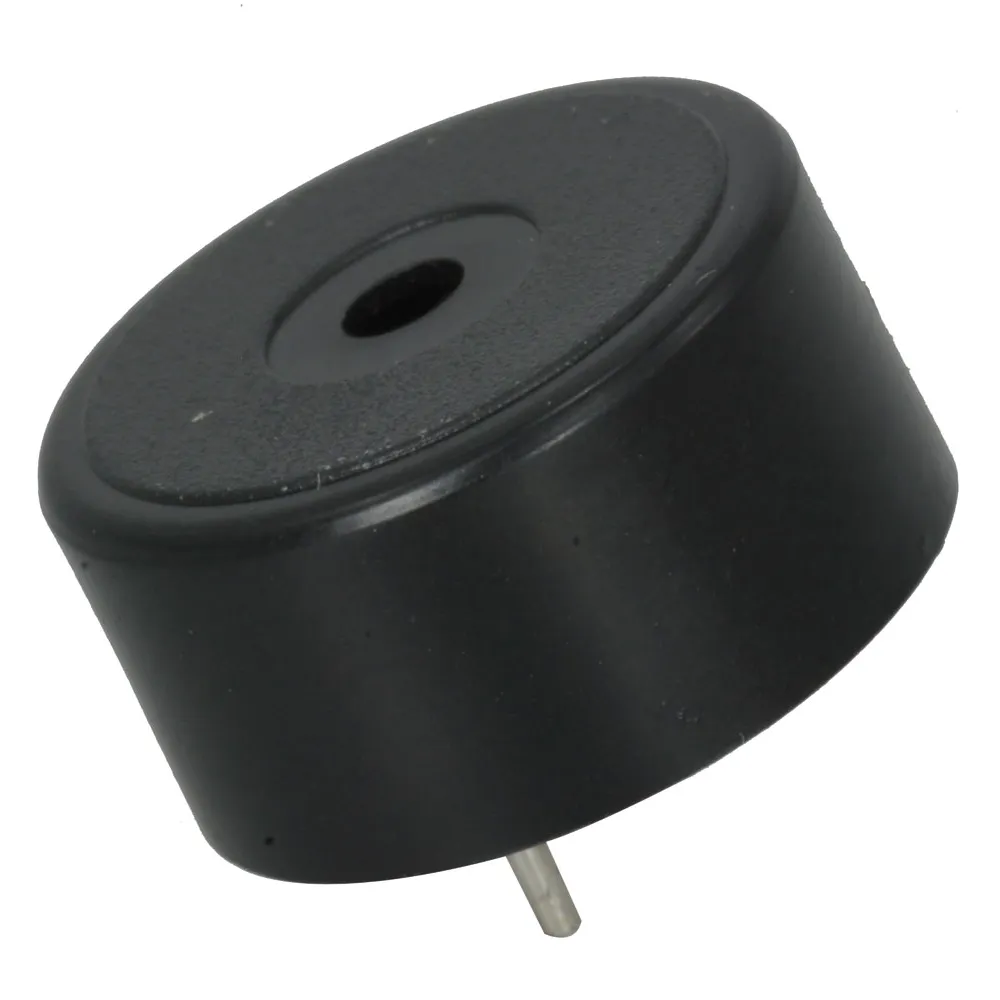

Piezo Transducer 5V p-p 3 mA 4000Hz 80dB PC Pins

Specifications

  • Voltage - Rated: 5V p-p (square wave)
  • Max. Allowable Voltage: 25 Vp-p square wave
  • Rated Current (max.): 3 mA @ 4 KHz /5Vp-p square wave
  • Sound (dB): 80 @ 10 cm
  • Resonant Frequency: 4000 Hz ±500 Hz
  • Mounting Type: Through Hole
  • Termination: PC Pins
  • Pin Spacing: 7.6 mm
  • Lead Length: 5.5 mm
  • Diameter: 14 mm
  • Height: 7 mm
  • Shape: Round
  • Product Type: Piezo Transducer
  • Technology: Piezo
  • Minimum Operating Temperature: -20°C
  • Maximum Operating Temperature: 70°C
  • Capacitance @ Frequency: 12000 pF ±30%
  • Case Color: Black

Dimensions & Appearance

Diameter:0.55 in.
Height:0.28 in.
Mounting:Through Hole
Size (H" x Dia."):0.28 x 0.55

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Voltage:5 V

Output

Output:80 dBA

Features

Tone Mode:Transducer/Speaker
Technology:Piezo
Voltage Range (Vp-p):5-25
Termination Style:PC Pins
Frequency:4000 Hz
Frequency Range:3500 Hz to 4500 Hz
Current Rating:3 mA
,
