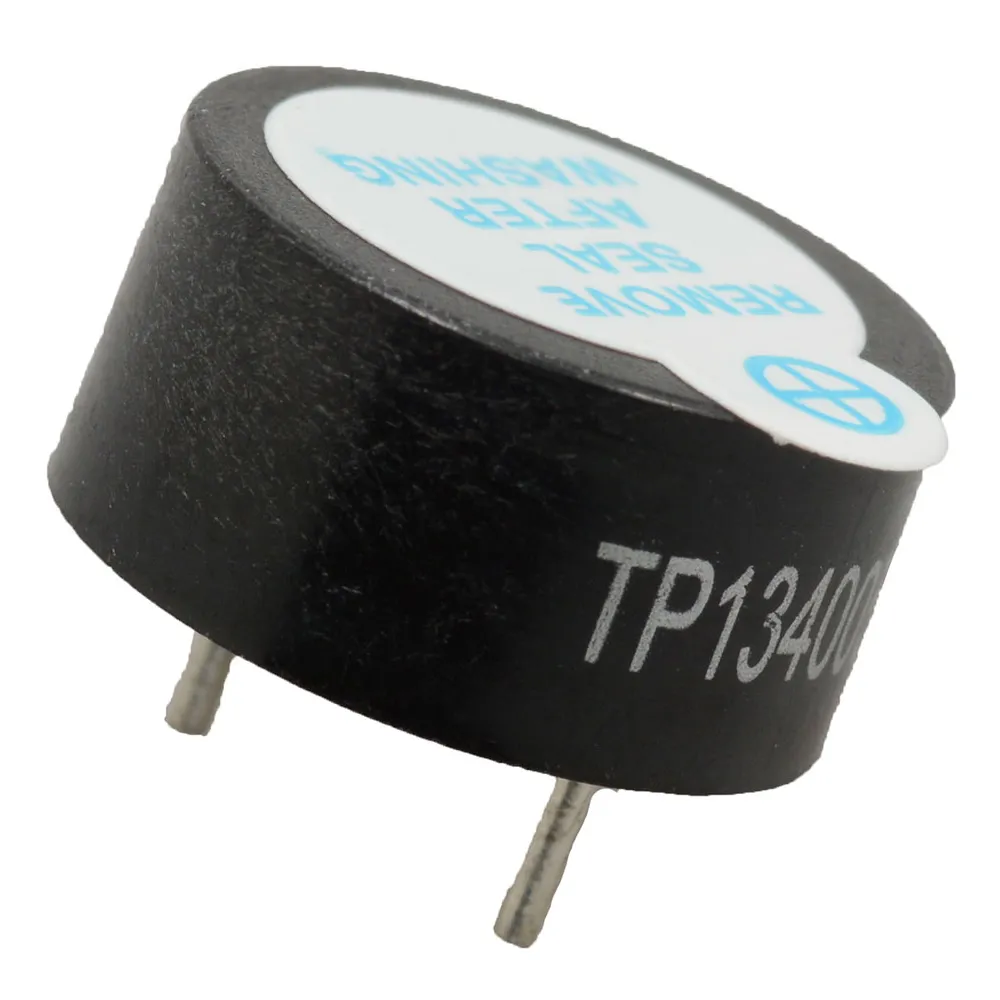

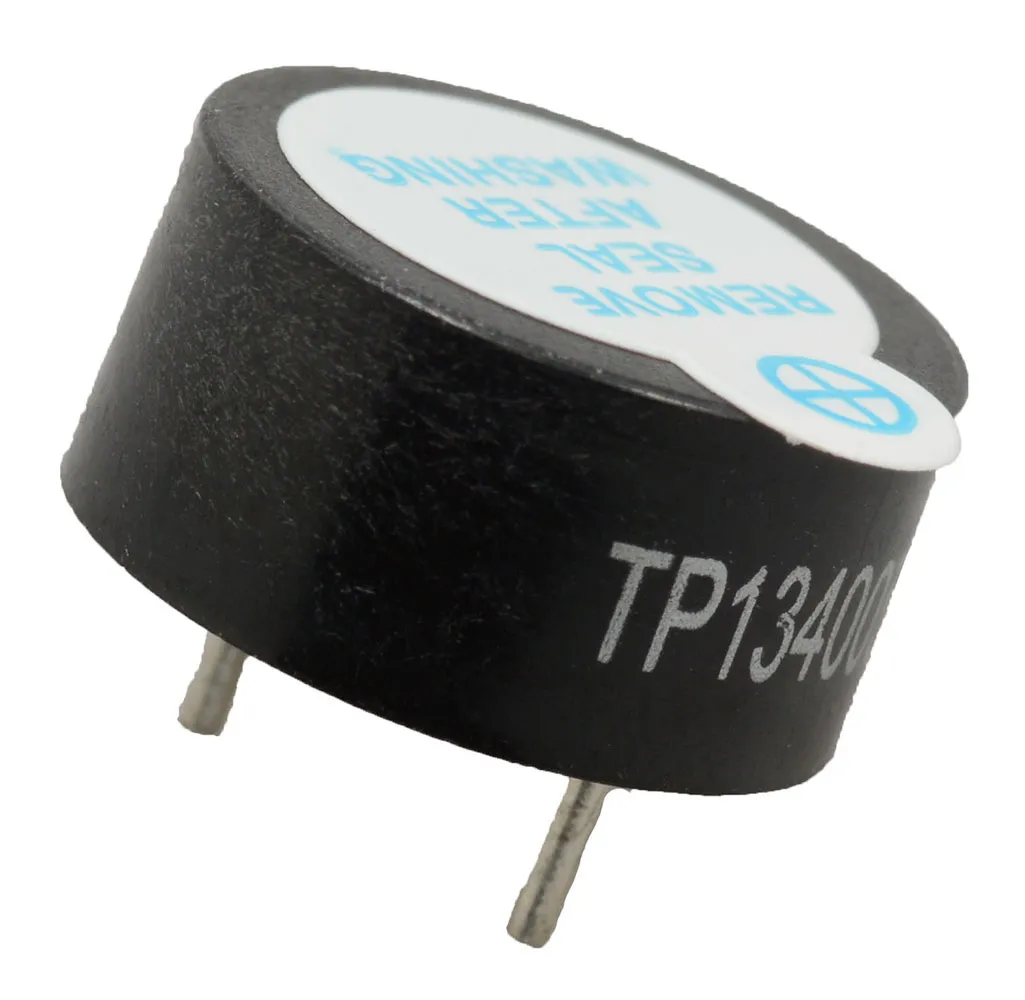

Piezo Transducer 4000 Hz 5V 1mA 80dB 2-Pin Can

Specifications

  • Driver Circuitry: Transducer, Externally Driven
  • Input Type: Peak-Peak Signal
  • Voltage - Rated: 5 V
  • Voltage Range: 1 to 20 V
  • Frequency: 4 kHz
  • Technology: Piezo
  • Sound Pressure Level (SPL): 80 dB @ 5 V, 10 cm
  • Current - Supply: 1 mA
  • Port Location: Top
  • Operating Temperature: -20°C to 70°C
  • Mounting Type: Through Hole
  • Termination: PC Pins
  • Size: 0.543" Dia. x 0.287"H (13.8 mm x 7.3 mm)

Dimensions & Appearance

Diameter:0.543 in.
Height:0.267 in.
Mounting:Through Hole
Size (H" x Dia."):0.267 x 0.543

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Voltage:5 V

Output

Output:80 dBA

Features

Voltage Range (Vp-p):1-20
Tone Mode:Transducer/Speaker
Technology:Piezo
Termination Style:PC Pins
Frequency:4000 Hz
Frequency Range:N/A
Current Rating:1 mA
,
