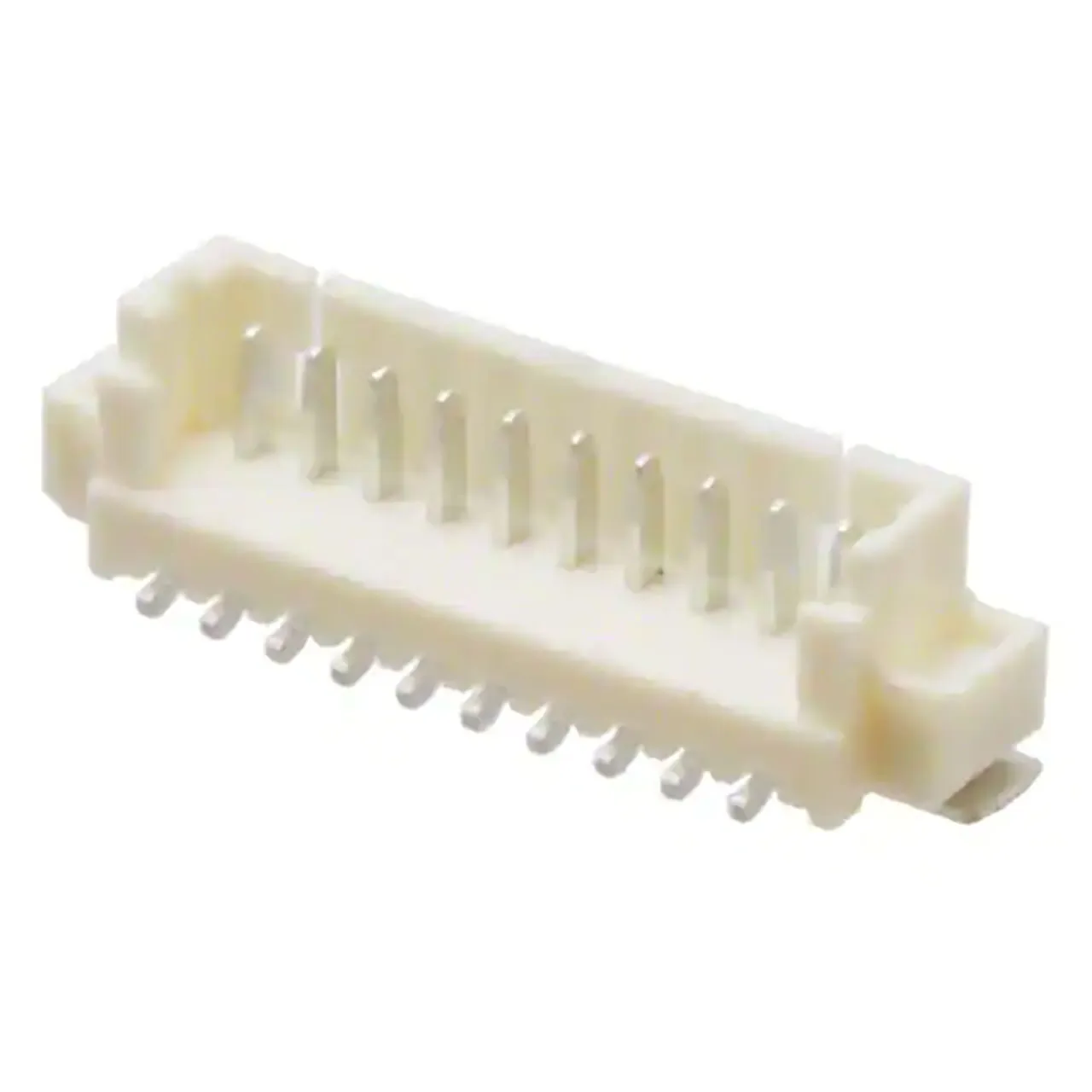

PicoBlade 53398 Connector Header Surface Mount 10 position 0.049" (1.25mm)

Features

• Series: PicoBlade 53398
• Connector Type: Header
• Contact Type: Male Blade
• Pitch - Mating: 0.049" (1.25 mm)
• Number of Positions: 10
• Number of Rows: 1
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 3 Wall
• Mounting Type: Surface Mount
• Termination: Solder
• Fastening Type: Detent Lock
• Insulation Height: 0.185" (4.70 mm)
• Contact Shape: Rectangular
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: 39.4µin (1µm)
• Contact Finish - Post: Tin
• Contact Material: Phosphor Bronze
• Insulation Material: Polyamide (PA), Nylon
• Features: Solder Retention
• Material Flammability Rating: UL94 V-0
• Insulation Color: Natural
• Applications: Automotive, General Purpose, Industrial, Medical
• Base Number: 053398
