Silicon NPN Phototransistor, Ambient Light Sensor

Ambient Light Sensor Transistor, VISHAY TEPT5600

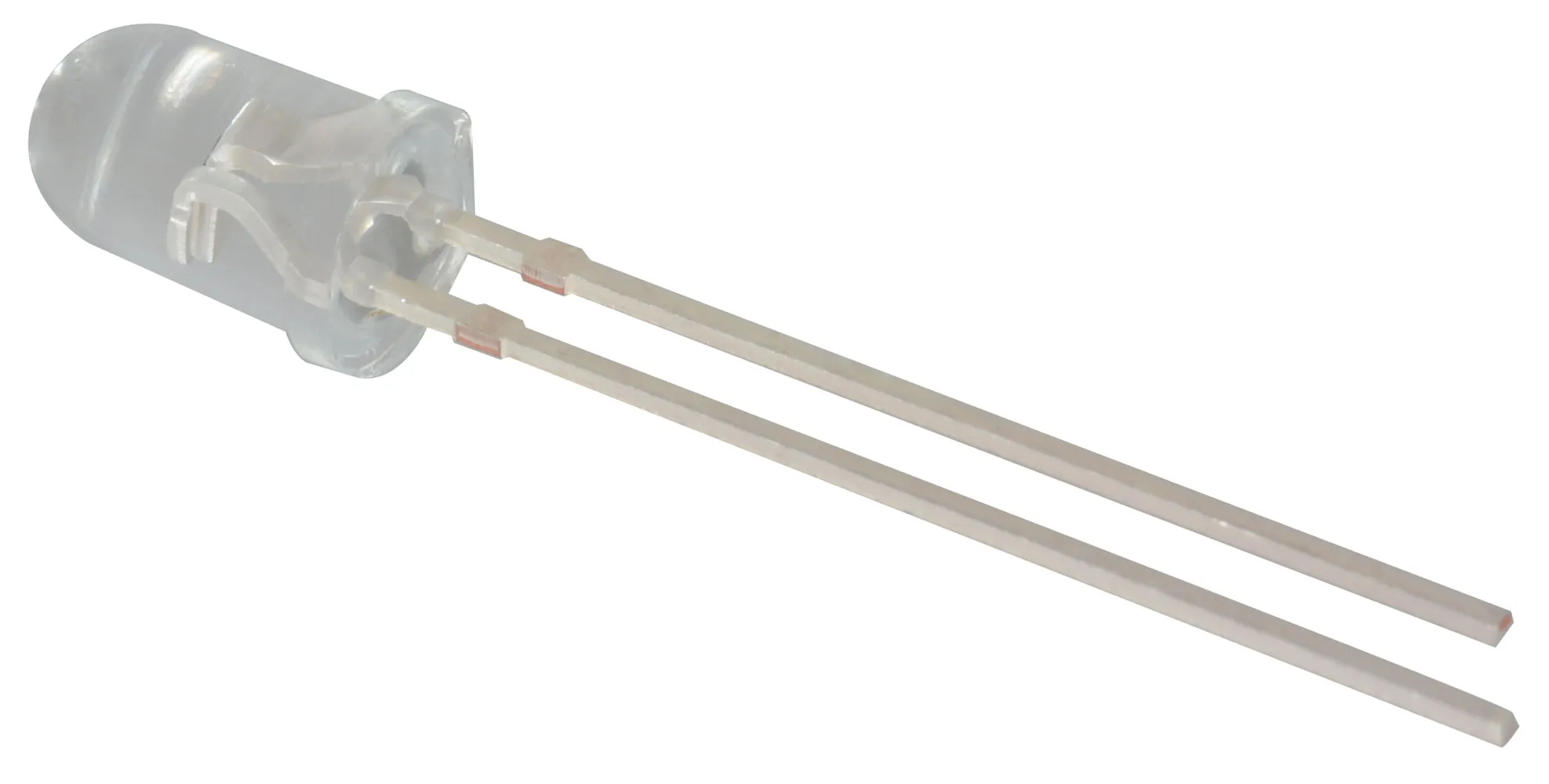

TEPT5600 is a silicon NPN epitaxial planar phototransistor in a standard T-1 3/4" plastic package. Peak of responsivity is in the visible spectrum. Infrared spectrum is suppressed

Features

  • Size: T1-3/4, 5mm
  • Wavelength: 570
  • Forward Voltage: 6V @ 20mA
  • Power Dissipation: 100mW
  • Detector Height: 0.30in
  • Detector Diameter: 0.97in
  • Terminal Length: 1.03in
  • Detector Lip/Step Height: 0.04in

    • Product Identification

    Product Type:Phototransistor

    Dimensions & Appearance

    Mounting:Through Hole

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:85°C

    Packaging

    Package:T-1 3/4

    Features

    Maximum Collector Emitter Voltage:6V
    Maximum Emitter Collector Voltage:1.5V
    Pins:2
    Maximum Dark Current:50 nA
    Half Intensity Angle Degrees:20
    Maximum Light Current:N/A
    Maximum Rise Time:N/A
    Maximum Fall Time:N/A
    Polarity:NPN
    Lens Type:Water Clear
    Peak Wavelength:570 nm
    Maximum Collector Current:20 mA
    Power Dissipation:100 mW
    Maximum Collector Emitter Saturation Voltage:N/A
    ,
