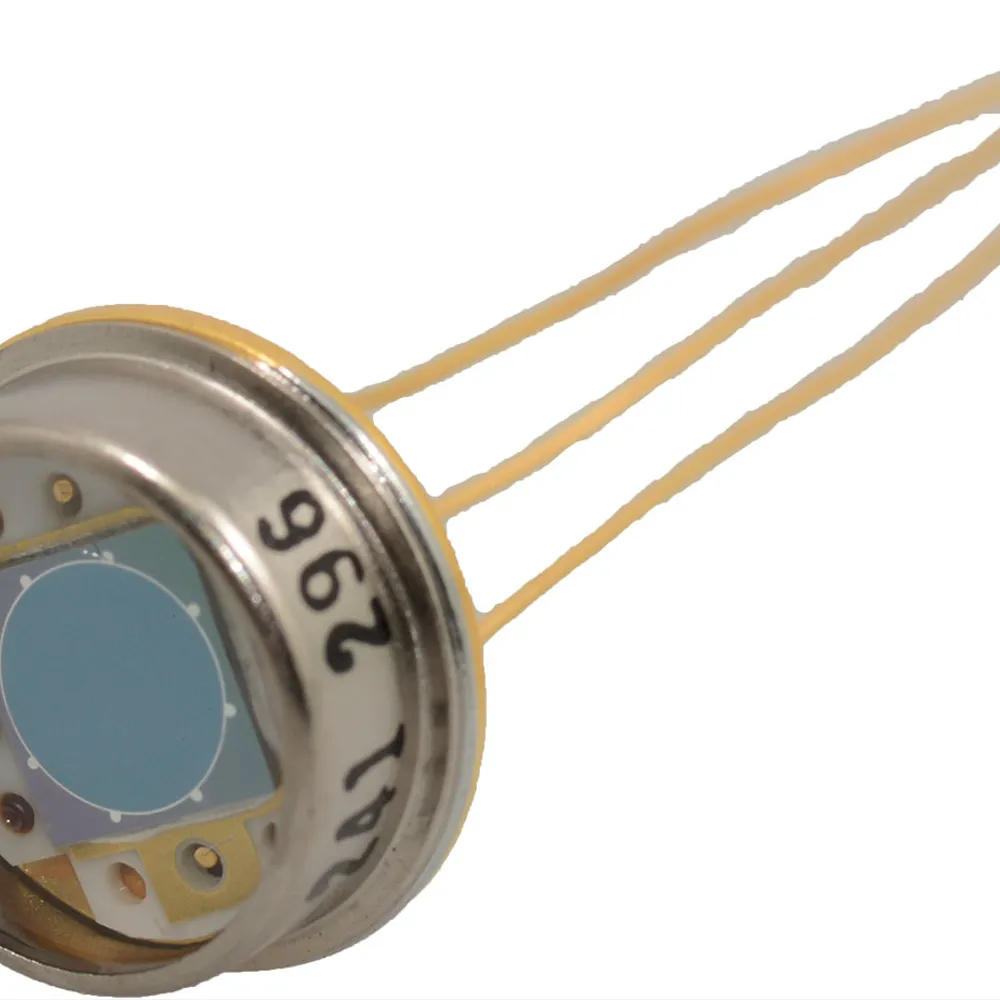

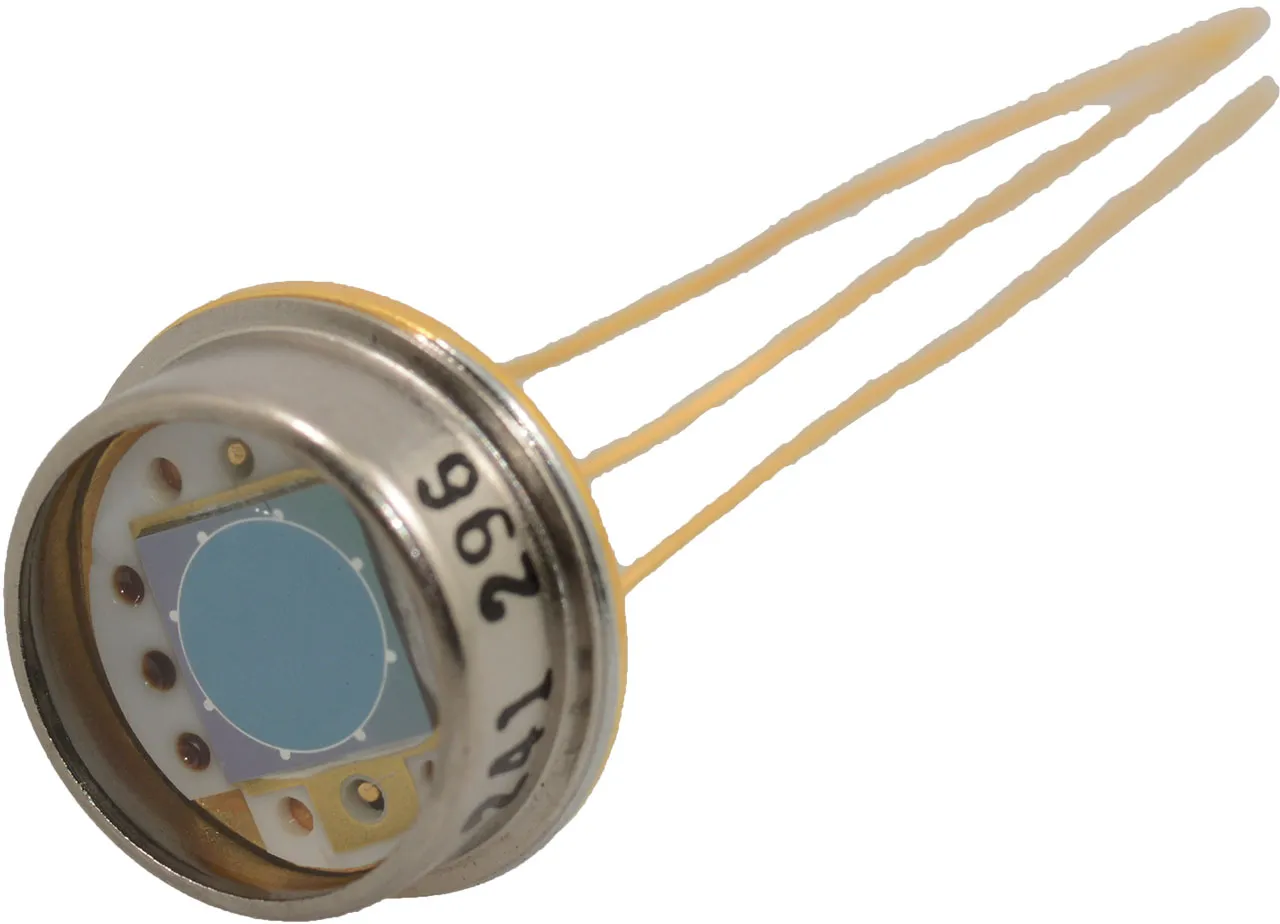

Photodiode Sensor 660nm 13ns 90°
Features
- Wavelength: 660nm
- Color - Enhanced: Red
- Spectral Range: 350nm to 1100nm
- Diode Type: PIN
- Responsivity at nm: 0.55 A/W at 900nm
- Response Time: 13ns
- Voltage - DC Reverse (Vr) (Max): 75 V
- Current - Dark (Typ): 6.5nA
- Active Area: 20.27mm²
- Viewing Angle: 90°
- Operating Temperature: -40°C to 125°C
- Mounting Type: Through Hole
- LUNA Optoelectronics (formerly Advanced Photonix)
Product Identification
Product Type:Photodiode Sensor
Dimensions & Appearance
Mounting:Through Hole
Operating conditions
Maximum Operating Temperature:110°C
Minimum Operating Temperature:-40°C
Packaging
Package:3-pin
Features
Maximum Dark Current:13nA
Pins:3
Maximum Light Current:N/A
Half Intensity Angle Degrees:60
Maximum Emitter Collector Voltage:N/A
Maximum Collector Emitter Voltage:50V
Maximum Rise Time:70 ns
Maximum Fall Time:N/A
Polarity:N/A
Lens Type:Water Clear
Maximum Collector Current:4.76 mA
Peak Wavelength:900 nm
Power Dissipation:N/A
Maximum Collector Emitter Saturation Voltage:N/A
