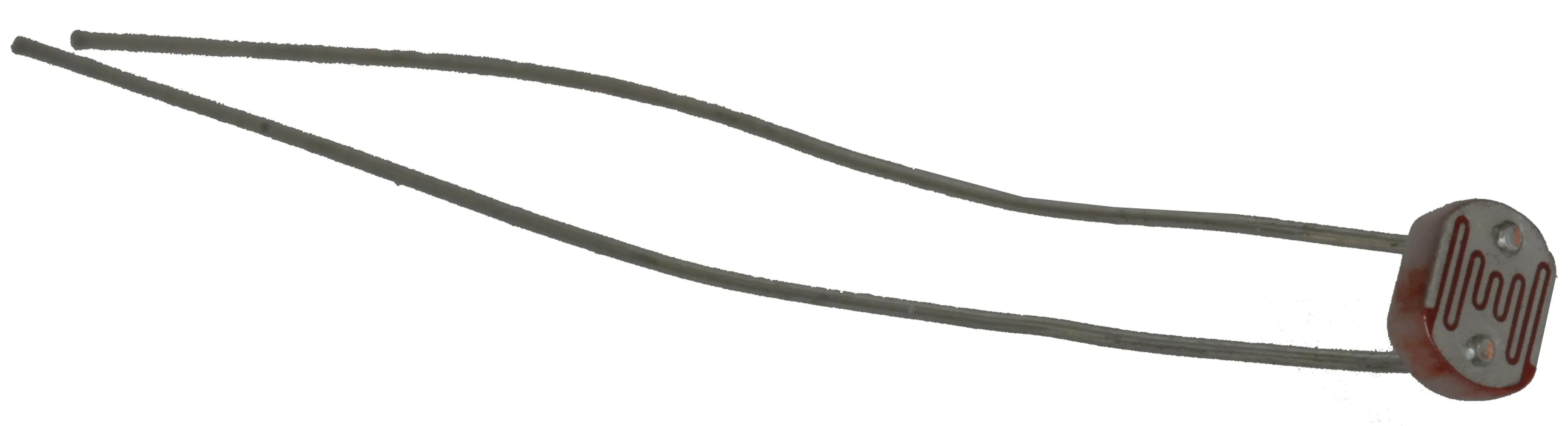

125mW Cadmium Sulfide (CdS) Photocell
Generate variable signals based on detection of light levels.Features
- Maximum voltage rating @ 25°C: 150 VDC
- Maximum allowable power dissipation @ 25°C: 125 mW
- Resistance (Dark): 2M Ω
- Resistance (Light): 27k Ω
- Lead length: 1.44"
- Operating temperature: -30°C to +70°C
- Able to withstand soldering at 230°C for 3 seconds
Applications
- Auto-focus lenses
- Exposure meters
- Contrast controls for televisions
- Dimmer or light switches
- Flame detectors
- Electronic toys
- Street lamp switches
- Optocouplers
Dimensions & Appearance
Height:0.14 in.
Width:0.17 in.
Input
Maximum Input Voltage:150 VDC
Features
Peak Spectral Response (nm):570
Cell Resistance Min (K ohms):27
Cell Resistance @ 0 Lux/10sec. (K ohms):2000
Cell Resistance Min-Max @ 10 LUX (K ohms):27 to 60
Typical Fall Time:25
Typical Rise Time:60
Lead Pitch:1.44 mm, 0.1 in.
Power Dissipation:125 mW
