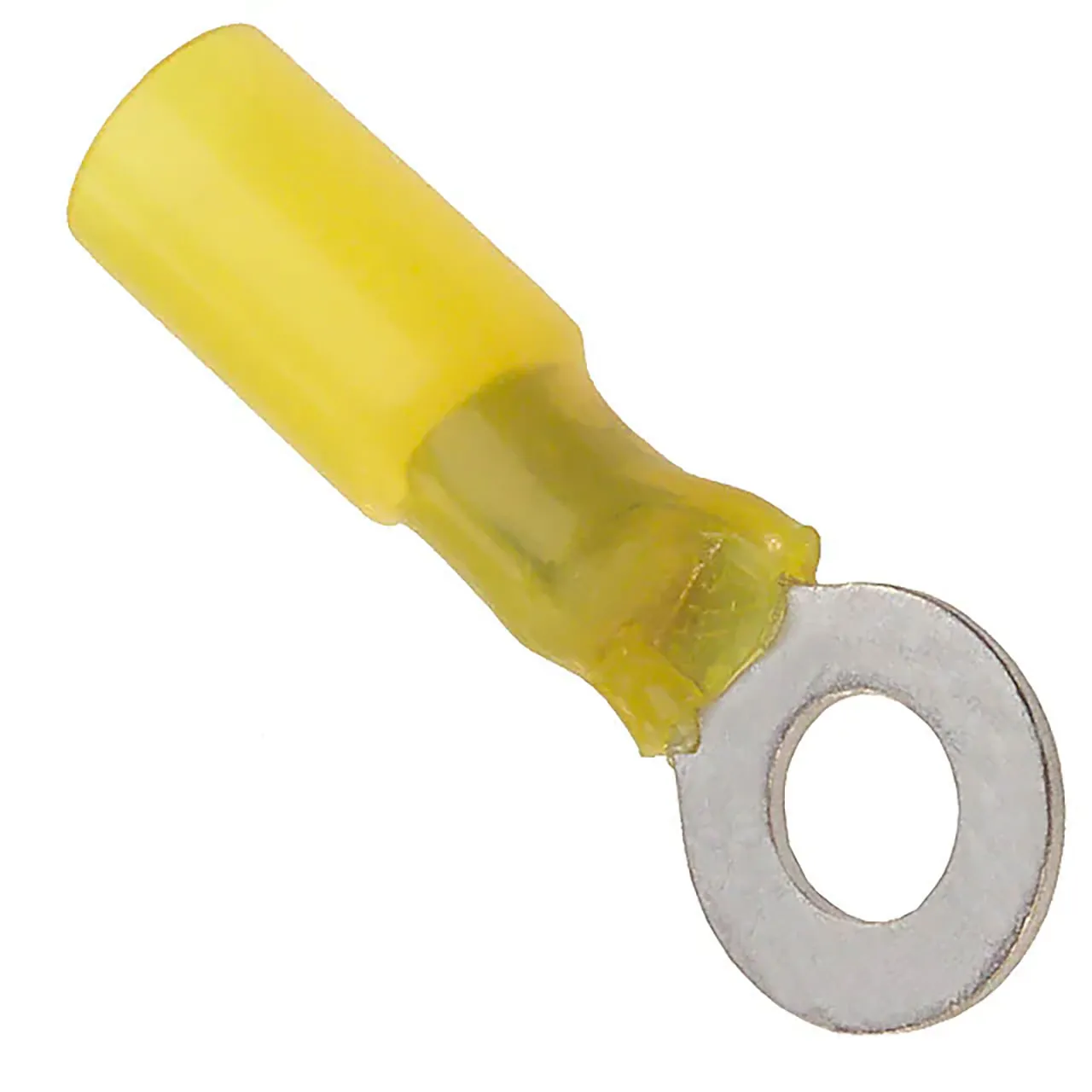

Perma-Seal Ring Terminal Connector 1/4 Stud Circular 10-12 AWG Crimp
Features
- Series: Perma-Seal
- Terminal Type: Circular
- Stud/Tab Size: 1/4 Stud
- Thickness: 0.031" (0.79 mm)
- Width - Outer Edges: 0.540" (13.72 mm)
- Length - Overall: 1.550" (39.37 mm)
- Mounting Type: Free Hanging (In-Line)
- Termination: Crimp
- Wire Gauge: 10-12 AWG
- Insulation: Insulated with Heat Shrink
- Features: Serrated Termination
- Color: Yellow
- Contact Material: Copper Alloy
- Contact Finish: Tin
- Insulation Diameter: 0.310" (7.87 mm)
- Material - Insulation: NiAc
- Base Number: 019164
