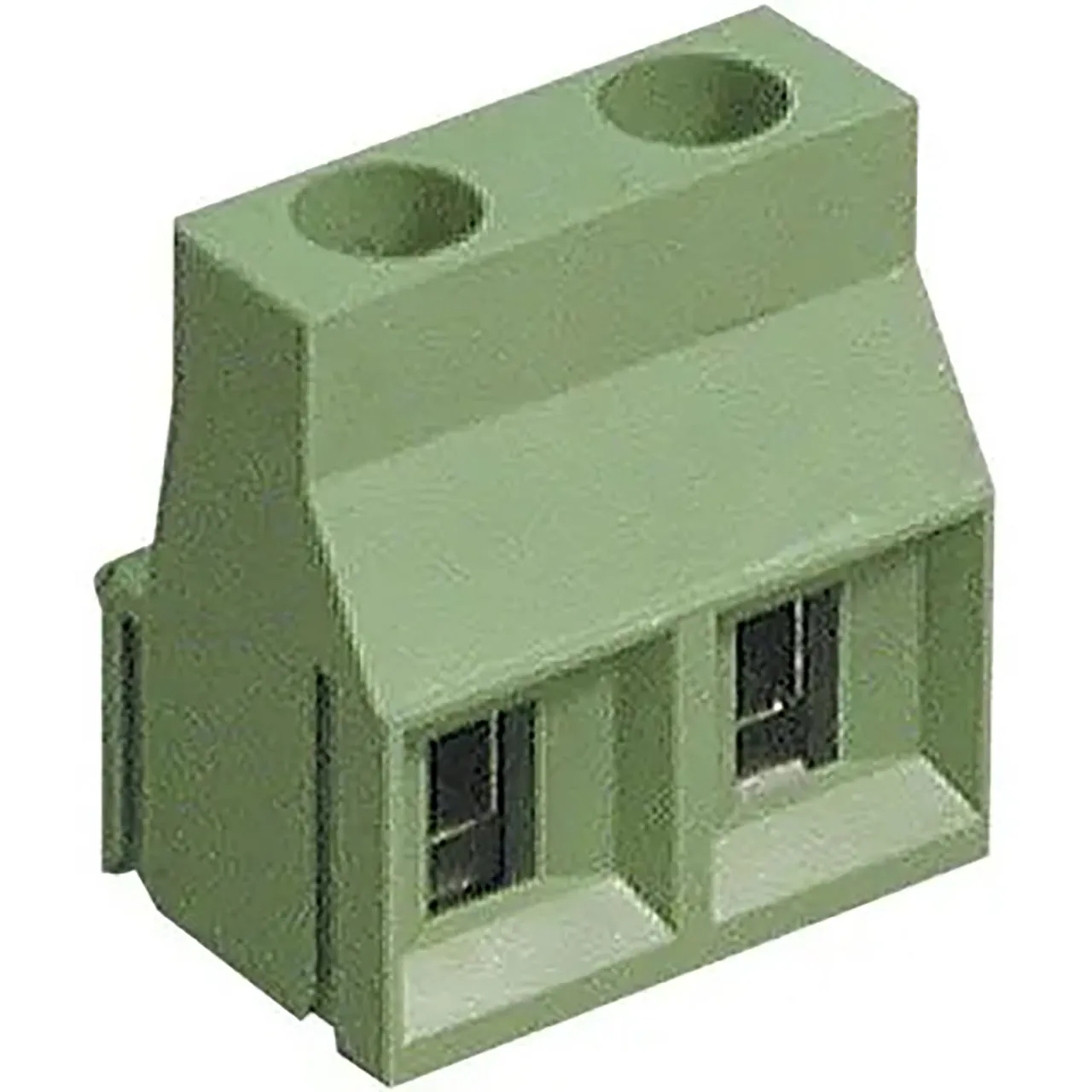

PCB Terminal Block 9.52mm 2 Pole Front Wire Green 30A 300V 10-30AWG 21mm Height Modular
Features
- Product Type: Terminal Block
Overview
PCB Terminal Block 9.52mm 2 Pole Front Wire Green 30A 300V 10-30AWG 21mm Height Modular
Product Identification
Manufacturer Series:MV-49
Dimensions & Appearance
Length:19 mm
Mounting:Through Hole
Body Orientation:Horizontal
Operating conditions
Maximum Operating Temperature:105°C
Features
Number of Positions:2
Number of Rows:1
Housing Color:Green
Bottom Termination:PC Pins
Top Termination:Screw Cage
Gender:Female
Pitch:0.375 in., 9.53 mm
Housing Material:Polyamide
Contact Plating:Tin
Contact Material:Steel
Wire Gauge (AWG):12-30
Description:Terminal Block
Voltage Rating:300 VAC
Current Rating:20 A
