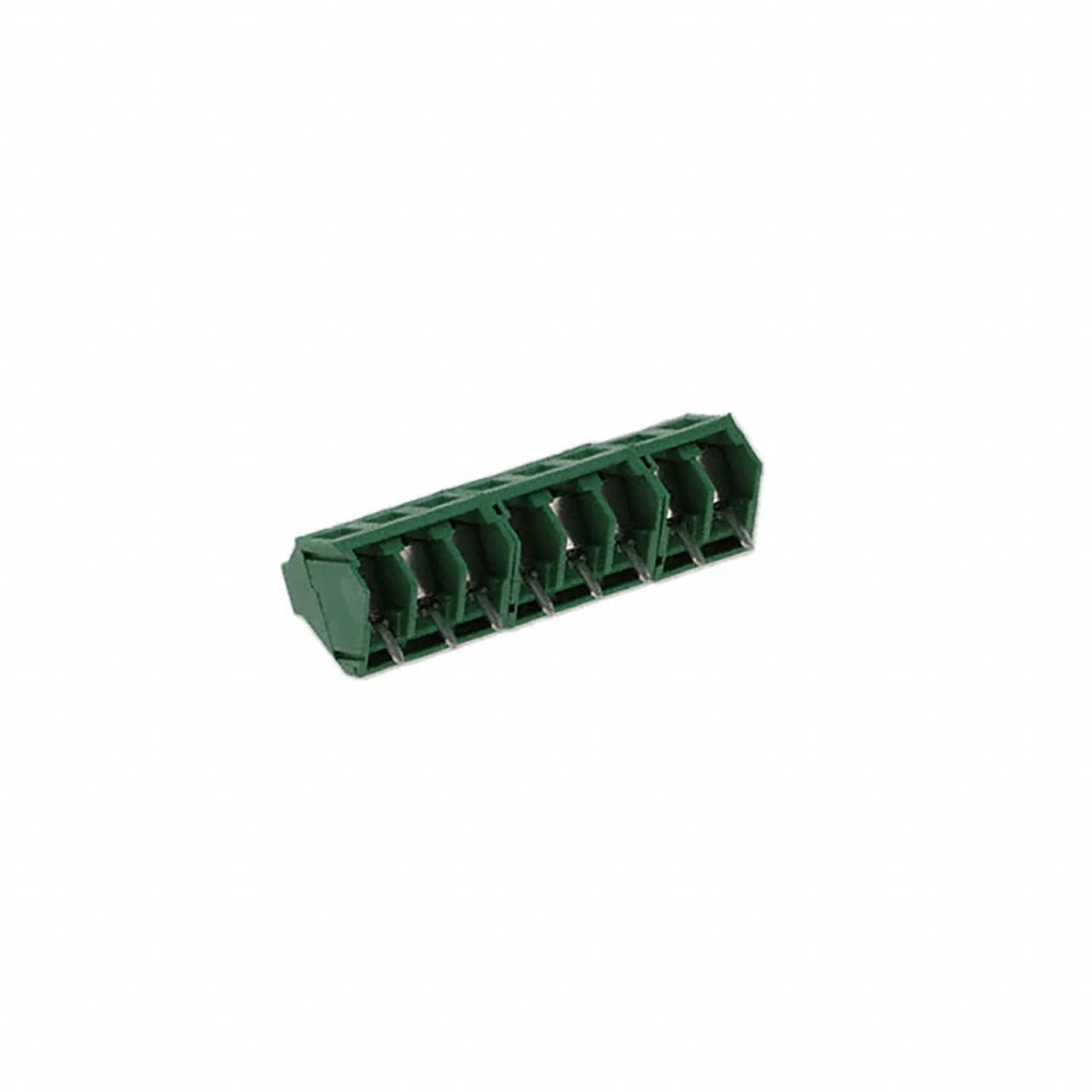

PCB Terminal Block 5.08mm 8 Pole 45° Green 16A 300V 14-30AWG 16.3mm Height Modular
Features
- Product Type: Terminal Block
Overview
PCB Terminal Block 5.08mm 8 Pole 45° Green 16A 300V 14-30AWG 16.3mm Height Modular
Product Identification
Manufacturer Series:MI-25
Dimensions & Appearance
Length:40.60 mm
Mounting:Through Hole
Body Orientation:45 Deg
Operating conditions
Maximum Operating Temperature:105°C
Features
Number of Rows:1
Number of Positions:8
Housing Color:Green
Bottom Termination:PC Pins
Top Termination:Screw Cage
Pitch:0.200 in., 5.08 mm
Gender:Female
Housing Material:Polyamide
Contact Plating:Tin
Contact Material:Steel
Wire Gauge (AWG):14-30
Description:Terminal Block
Voltage Rating:300 VAC
Current Rating:16 A
