Passive Probe 1.5GHz 10:1

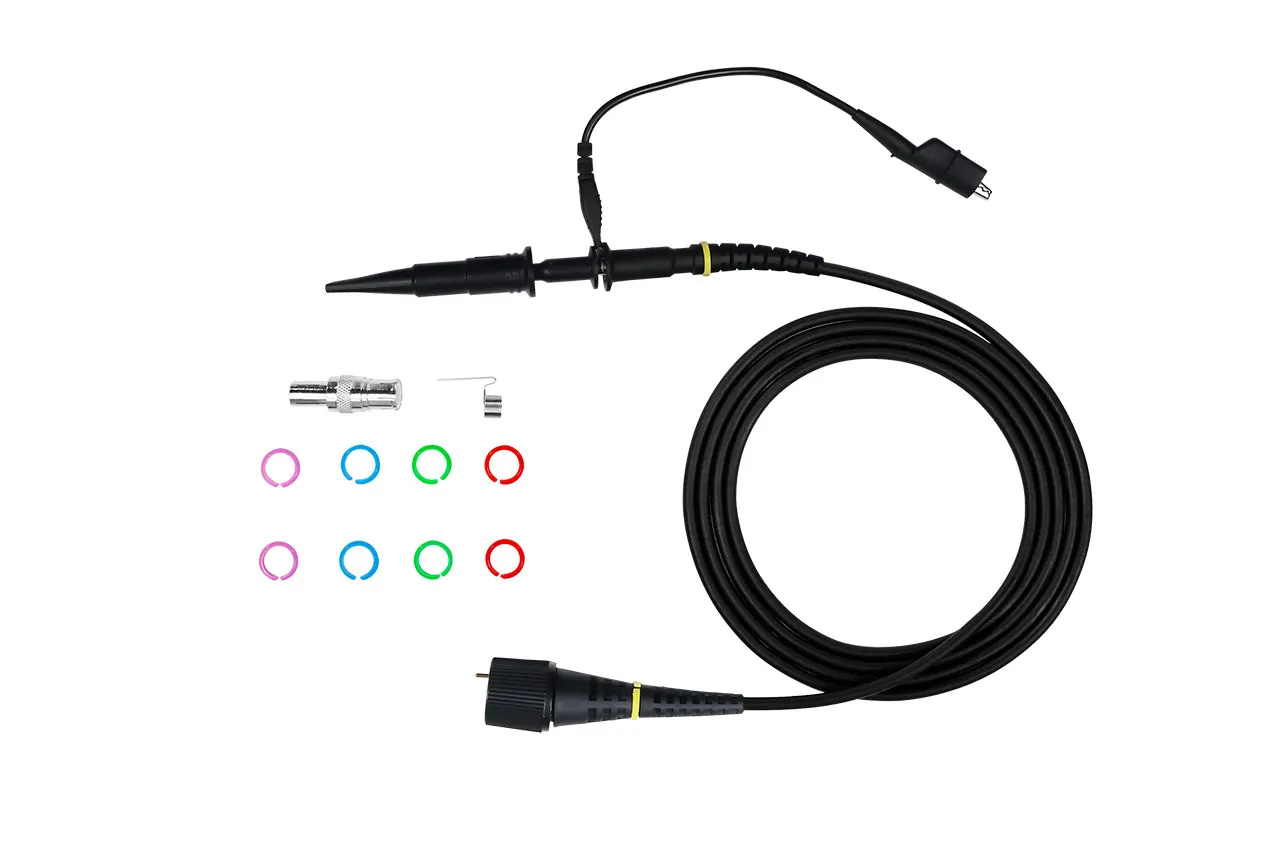

Features

• Ground Lead: Use the alligator clip to attach the probe to a ground reference
• Hook Tip: Retractable hook tip
• Ground Spring: Provides shorter grounding path for better signal integrity
• BNC Adapter: Realize the mutual conversion of signal
• Marker Rings: Attach the matched color rings onto the probe cable and shaft to identify different channels

Overview

The SP6150A passive probe offers bandwidth of 1.5GHz and 10:1 attenuation ratio to address a wide range of measurement needs. For general purpose probing, the SP6150A's low capacitance and low inductance ground connection keep probe loading low enough to achieve high signal integrity measurements. A low input capacitance, 1.8pF, for measuring fast edges more accurately, makes it a good low-cost alternative to an active probe. The SP6150A probe is automatically recognized wen connected to a Siglent oscilloscope.
