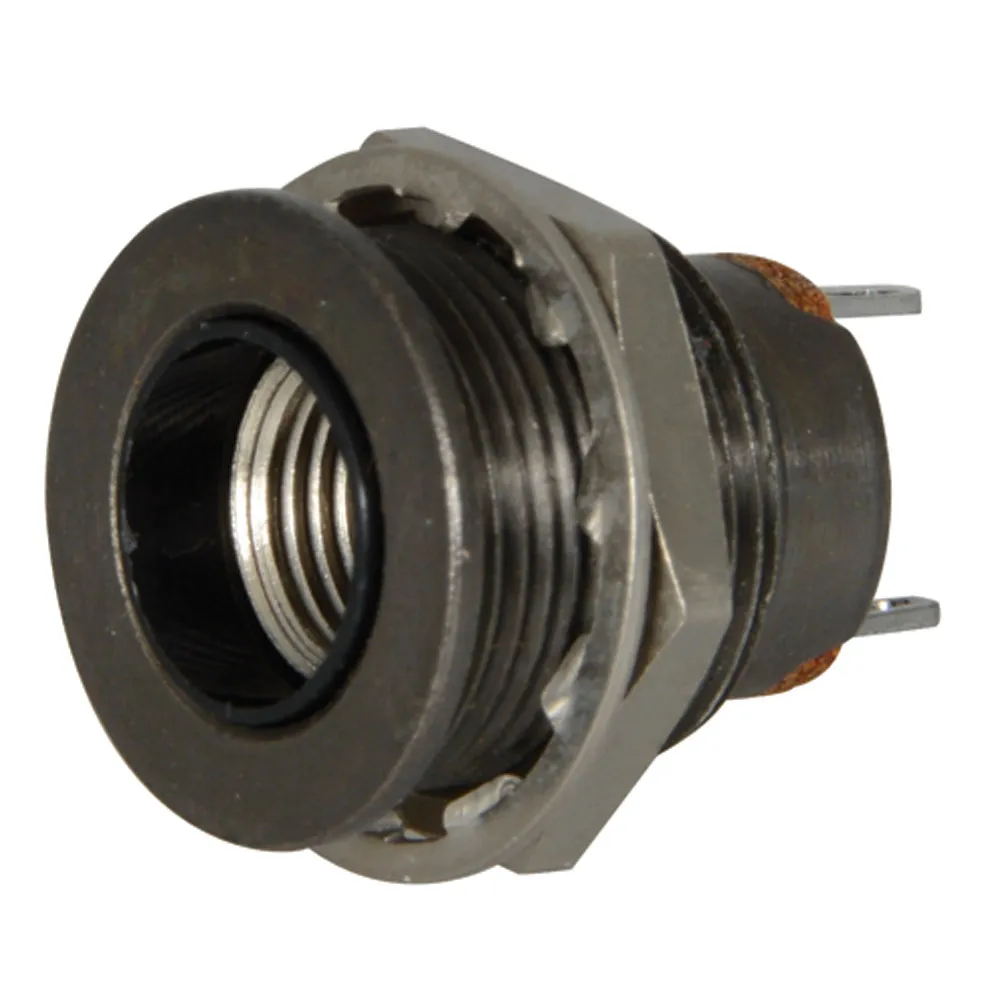

Subminiature Panel Mount Indicator Lamp Holder

Features:

• Rugged-phenolic insulated: the socket, lamp and all connections are well insulated from the mounting bushing by means of phenolic material of military specification grade
• Lens cap assembly unscrews from front of panel for easy replacement
• Two terminals (soldering) are provided for electrical connections
• Front mounting with fixed flange

Specification:

• Voltage rating (max.): 110-125VAC (neon T2 bulb), 30VDC (incandescent)
• Lamp size: T-1¾ Midget
• Termination: Solder terminals
• Finish: black nickel
• Hardware: brass
• Mounting: panel mount

Recommended Mating Components (Not Included)
