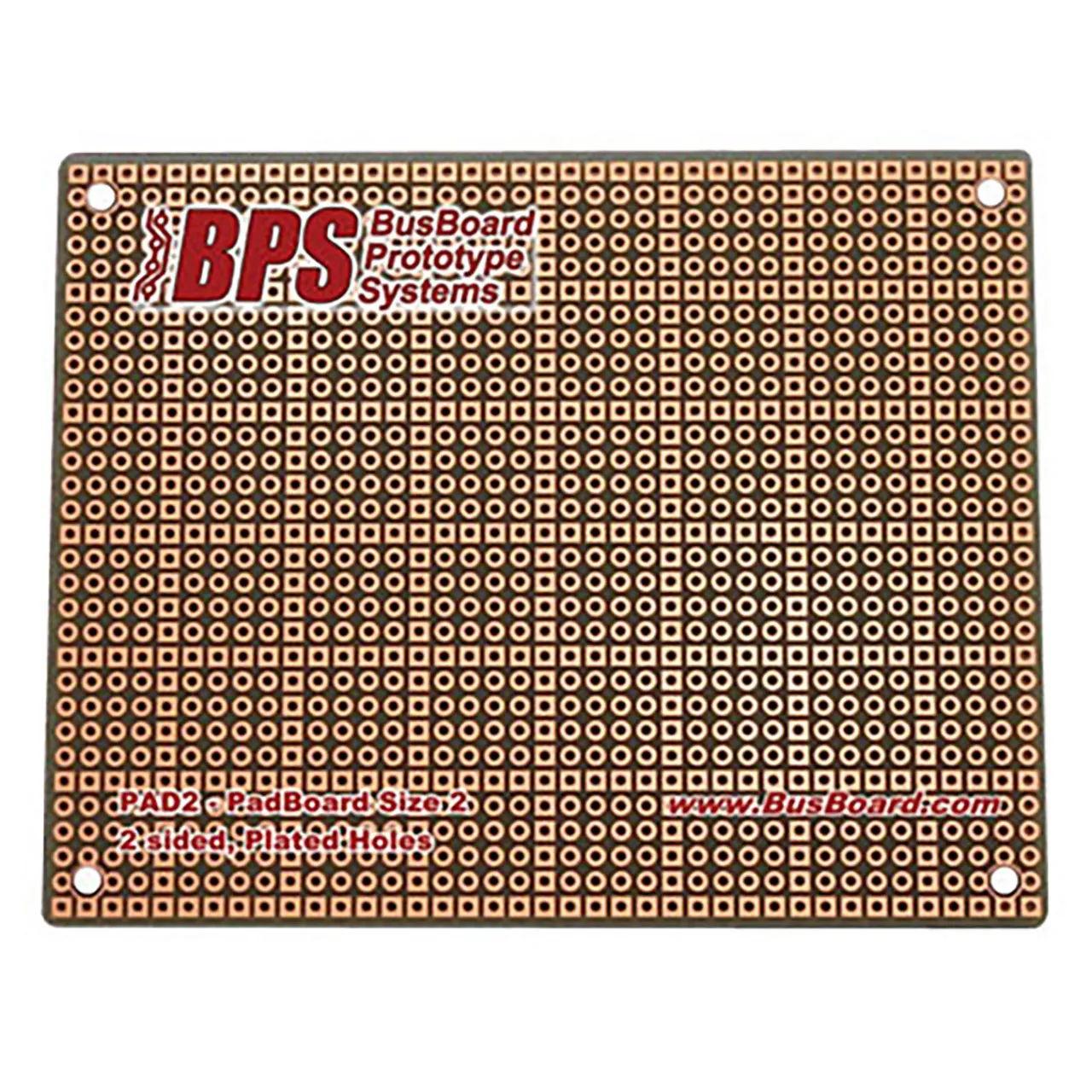

Pad-Per-Hole Prototyping Circuit Board

PAD2 PadBoard-Size2, Pad-per-Hole, Plated holes, Square Locator Holes

The PadBoard-2 prototyping circuit board has a general-purpose pad-per-hole pattern which is good for analog and digital use. It is a double-sided board with plated holes, which allows components to be soldered to either side of the board. A square pad is provided every 5th hole, which makes it easy to align components on the top and bottom of the board.

Features

• Pad-per-hole prototyping board with plated-thru holes. A square pad every 5th hole makes it easy to align components on top and bottom
• Double-sided high-quality FR4 glass-epoxy circuit board with plated holes. Components can be soldered to either side
• 1oz/ft² copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible
• 31 x 39 holes
• 0.037" holes are drilled on 0.1" (2.54mm) centers
• Four 0.125" mounting holes
• Size: 100 x 80mm (3.94 x 3.15in), 1/16" thick (1.6mm)
