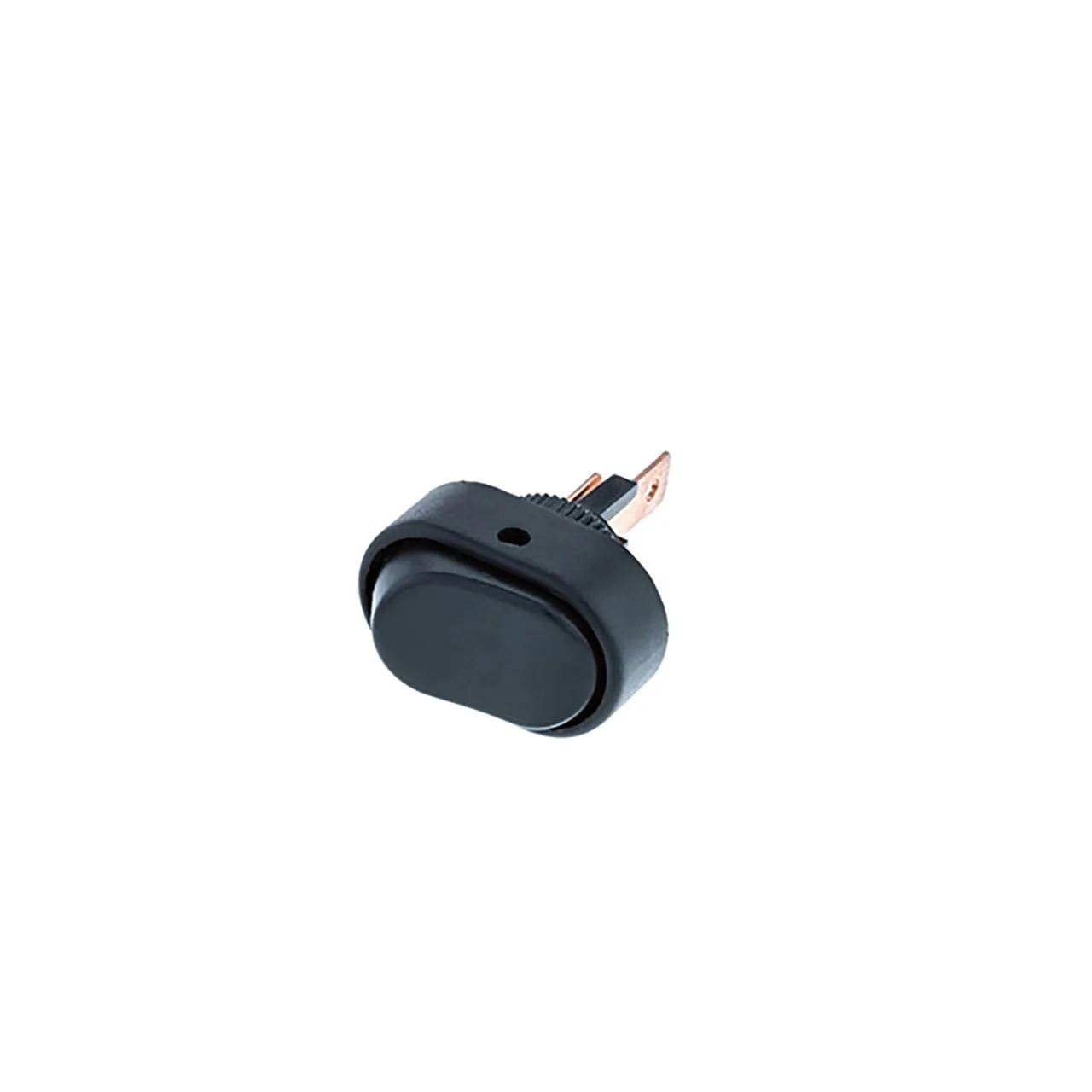

Oval Shaped Rocker - 2P SPST OFF-ON

Features

  • Series: RD1
  • Mounting Type: Panel Mount, Threaded Body with Nut
  • Circuit: SPST
  • Switch FunctiON: ON-OFF
  • Current Rating (Amps): 30A (DC)
  • Voltage Rating - DC: 12 V
  • Actuator Type: Concave (Curved)
  • Color - Actuator/Cap: Black
  • Actuator Marking: No Marking
  • Termination Style: Quick Connect - 0.250" (6.3mm)
  • Panel Cutout Dimensions: Circular - 12.20mm Dia
  • Operating Temperature: -25°C to 85°C
  • Product Type: Rocker Switch
  • Harmonized Code: 8536.50.4000
  • ECCN: EAR99
  • 360 Animation Download (.zip)

Overview

Oval Shaped Rocker - 2P SPST OFF-ON.

Product Identification

Product Type:Rocker Switch

Dimensions & Appearance

Mounting Style:Panel Mount, Threaded Body with Nut
Depth:0.74 in.
Height:0.63 in.
Width:0.77 in.
Length:1.20 in.
Body Color:Black

Features

Pins:2
Color - Actuator/Cap:Black (No Marking)
Lead Spacing A (inch):0.130
Termination Style:Quick Connect - 0.250" (6.3mm)
UL Flammability Code:N/A
Switch Function:ON-OFF
Actuator Type:Concave (Curved) - Illuminated
Actuator Length:0.240 in.
IP Rating:none
Contact Form:SPST
Current Rating:30A @ 12VDC
,
