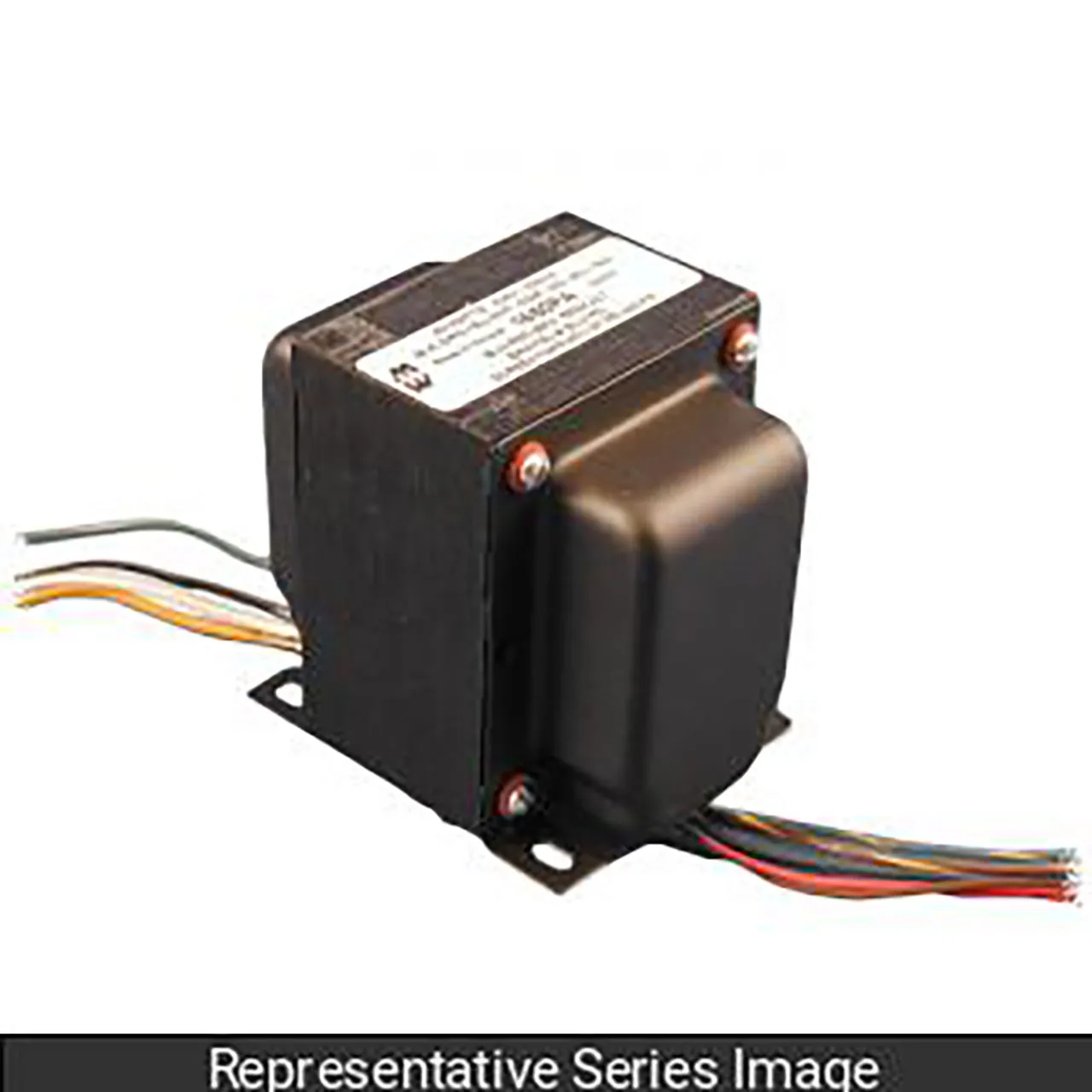

Output Transformer Push-Pull, 35W, Primary 6,600 CT, 200 Ma., Secondary 3.5/8/16/250/500

Features

• Material: N/A
• Audio Watts (RMS): 35
• Impedance (Ohms): 6,600 ct
• Maximum D.C. Per Side: 200 ma.
• Secondary Impedance (Ohms): 3.5/8/16/250/500
• Operation: Push-Pull (2 Tubes)
• Suggested Tube Types: 6L6GC, 807, 5881, EL34
• USMCA Compliant: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes
• ECCN: EAR99

Overview

Output transformer, push-pull, 35W , primary 6,600 ct, 200 ma., secondary 3.5/8/16/250/500.

Resources & Downloads

• CAD PDF
