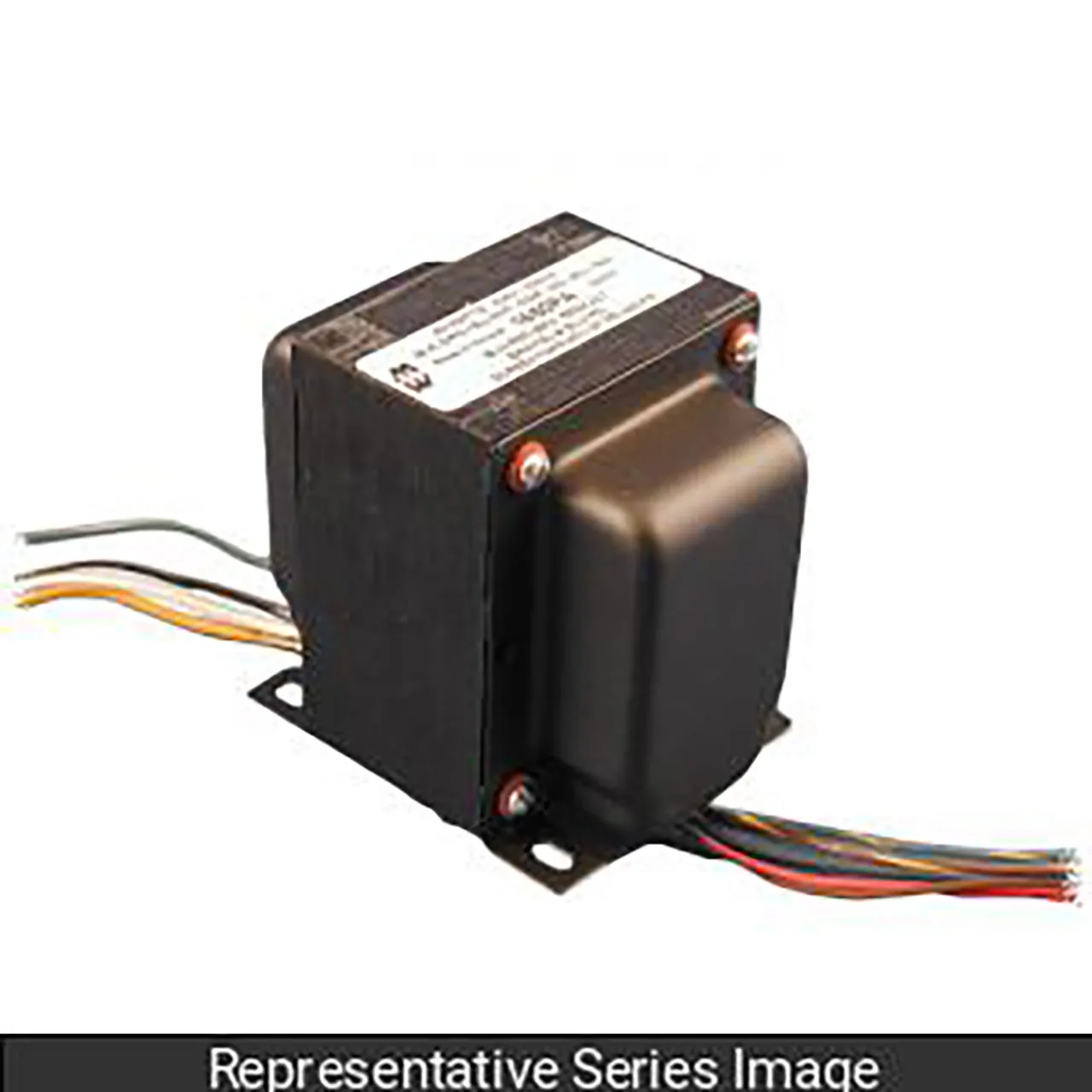

Output Transformer Push-Pull 20W Primary 6,600 CT 158 Ma. Secondary 4-8-16

Features

• Material: N/A
• Audio Watts (RMS): 20
• Impedance (Ohms): 6,600 ct
• Maximum D.C. Per Side: 158 ma.
• Secondary Impedance (Ohms): 4-8-16
• Operation: Push-Pull (2 Tubes)
• Suggested Tube Types: 6AQ5, 6L6, 6V6
• USMCA Compliant: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes
• ECCN: EAR99

Overview

Output transformer, push-pull, 20W , primary 6,600 ct, 158 ma., secondary 4-8-16.

Resources & Downloads

• CAD PDF
