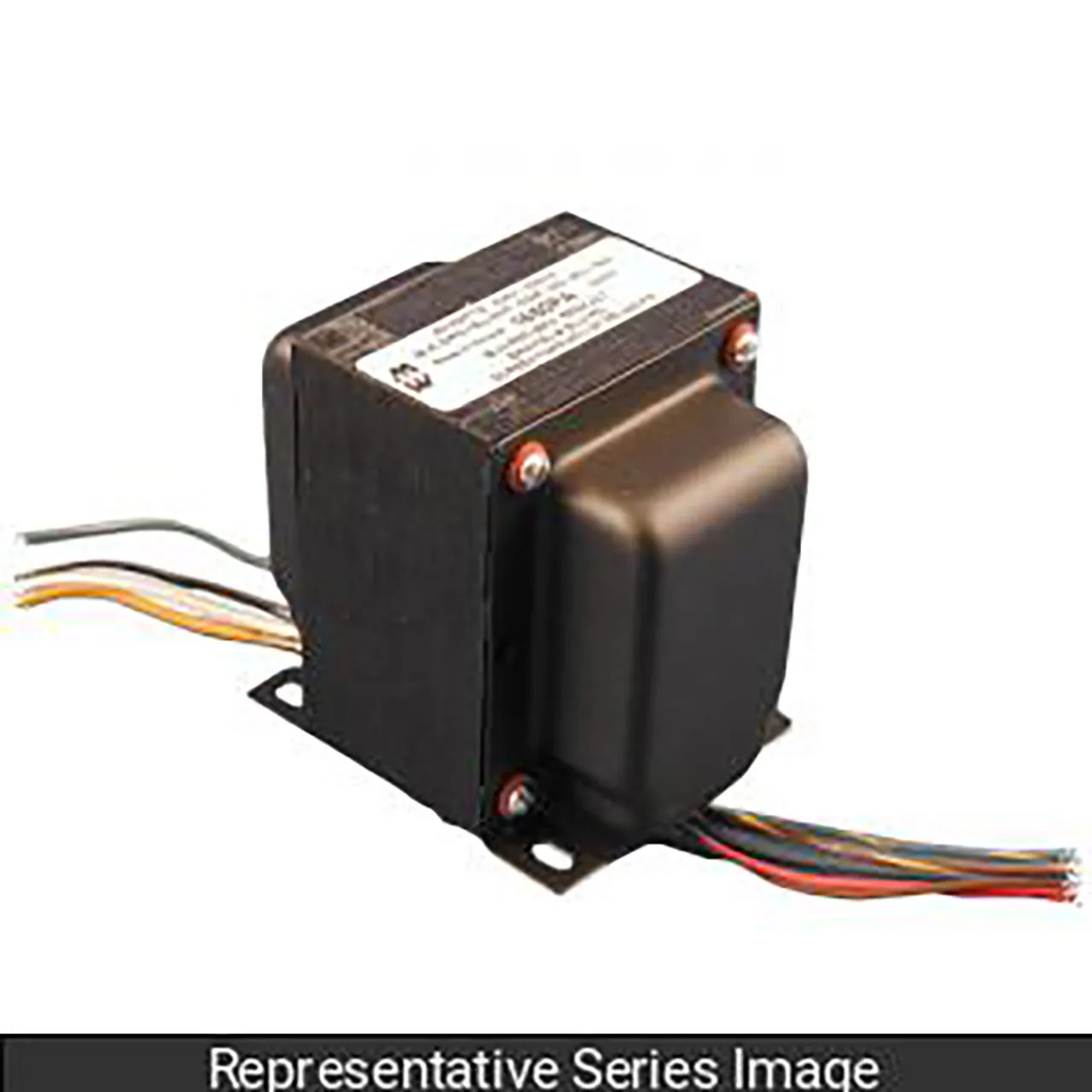

Output Transformer Push-Pull 120W Primary 1,900 CT 403 Ma. Secondary 4-8-16 Easy Hook-up

Features

• Material: N/A
• Audio Watts (RMS): 120
• Impedance (Ohms): 1,900 ct
• Maximum D.C. Per Side: 403 ma.
• Secondary Impedance (Ohms): 4-8-16
• Operation: Push-Pull Par. (4 or 6 Tubes)
• Suggested Tube Types: 6L6GC, 5881, EL34, 6550B, KT88
• USMCA Compliant: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes
• ECCN: EAR99

Overview

Output transformer, push-pull, 120W , primary 1,900 ct, 403 ma., secondary 4-8-16.

Resources & Downloads

• CAD PDF
