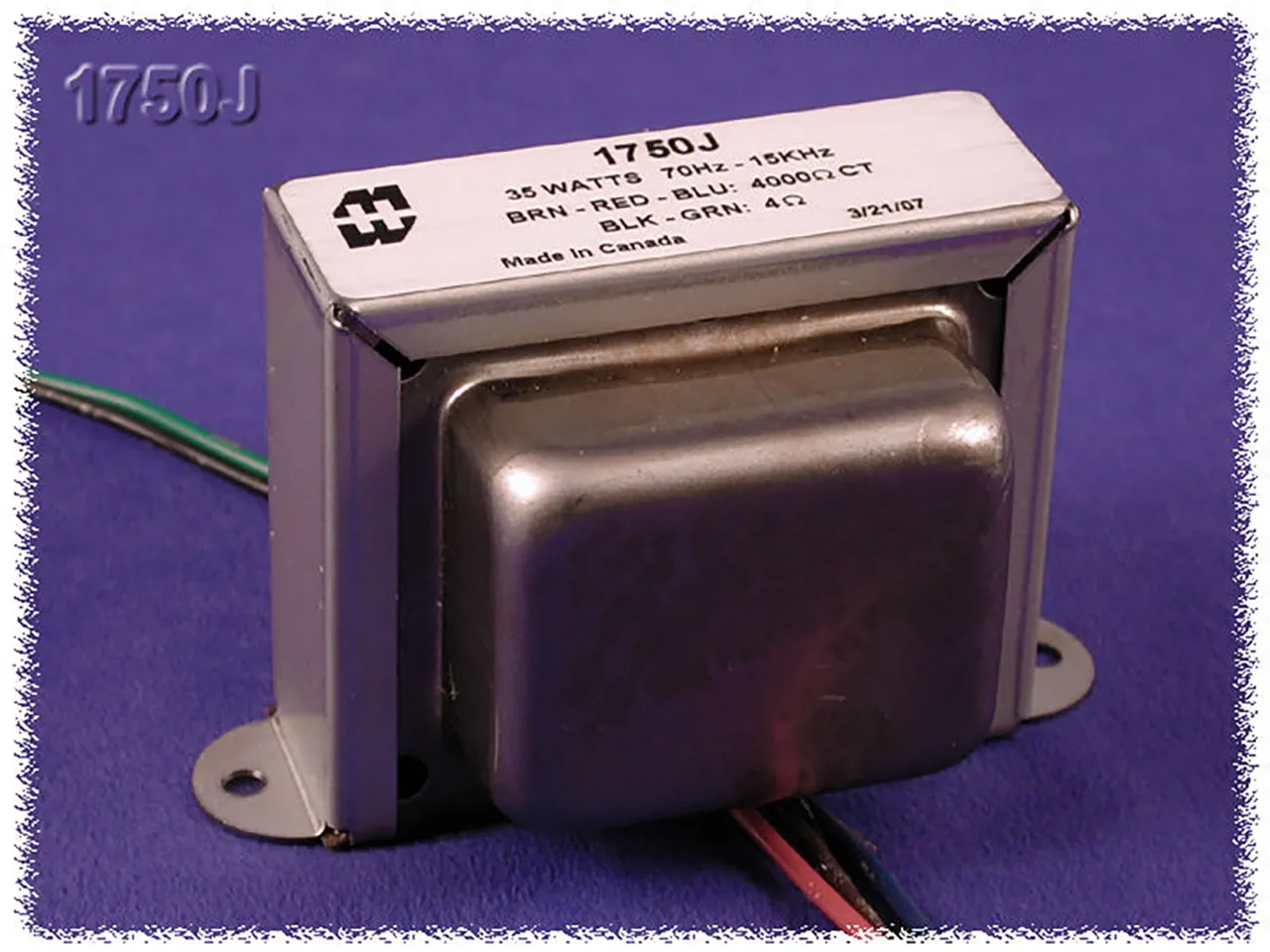

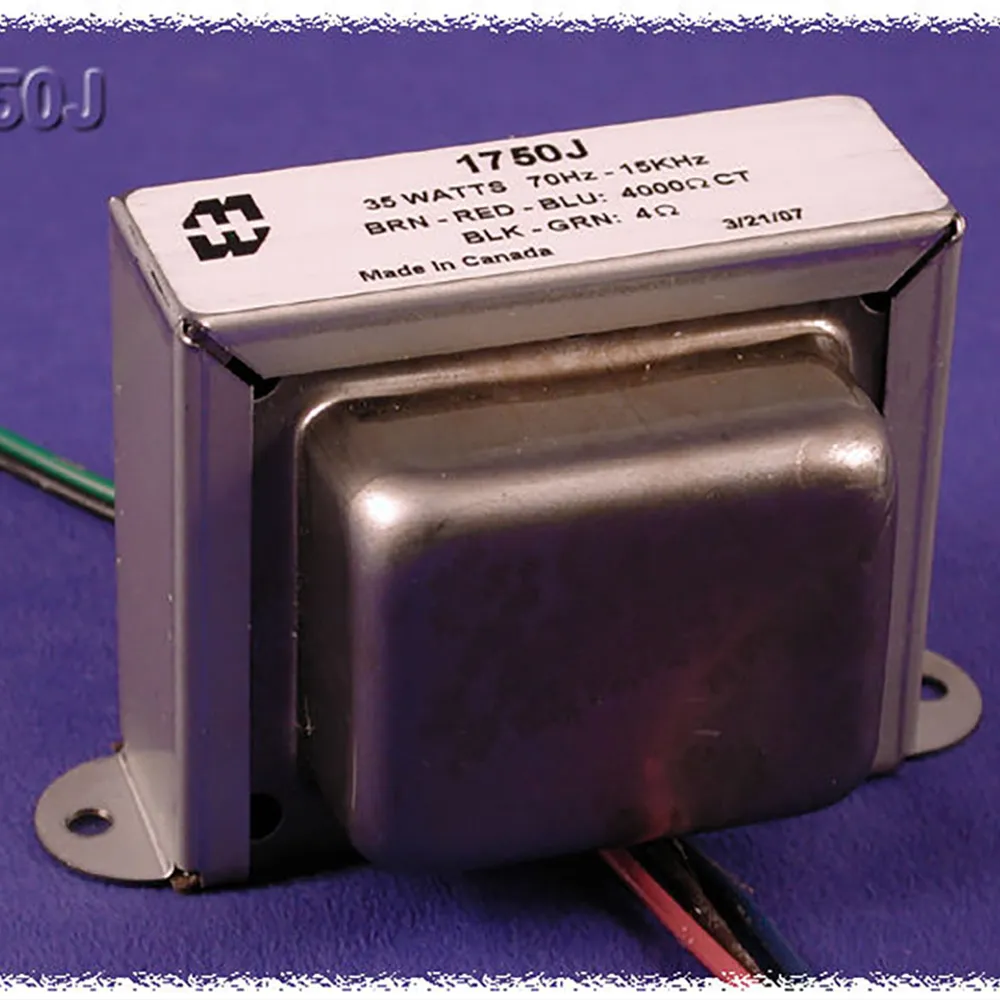

Output Transformer Guitar Amp, 4,000 C.T Ohm Pri., 4 Ohm Sec., 40W

Features

• Material: N/A
• Primary Impedance (Ohms): 4,000 C.T.
• Secondary Impedance (Ohms): 4
• Amplifier Type: Push-Pull
• Watts: 40
• Winding Type: Bobbin
• Original Amp Mfr: Fender
• Amp Model Name(s) (Ref. Only): Bandmaster*
• Similar to OEM Part Number (Ref. Only): 125A6A, 022848, 125A7A
• OEM Chassis Number (Ref. Only): Blonde, 6G7-A, Blackface, AA763, AB763, Silverface, AC568, AD1269, Blackface Reverb,Reverb, Reverb AA763, Silverface Reverb, Reverb AA1069, Reverb AA270
• USMCA Compliant: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes
• ECCN: EAR99

Overview

Output transformer, guitar amp, 4,000 C.T. ohm pri., 4 ohm sec., 40W.

Resources & Downloads

• CAD PDF
