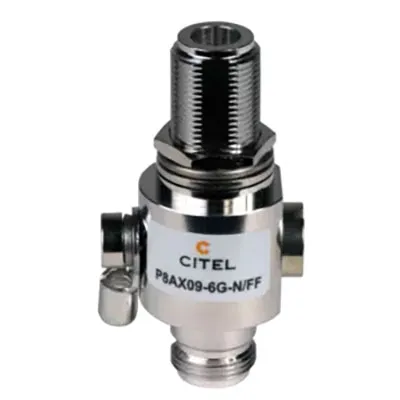

Outdoor N-Type RF Surge Protection Device GDT DC Pass 20kA IMAX

This IP67 outdoor-rated surge suppression device (SPD) is designed for 50 ohm coaxial cables using an N-type connector for frequencies from 0 to 7 GHz. It utilizes gas discharge tube (GDT) technology and DC pass to provides up to 20 kA (IMAX) surge current. The in-line design allows for fast and easy installation. It offers bi-directional protection, features a replaceable gas tube, and comes with a 10-year warranty. It is UL497E rated.

Specifications

• Protection Mode: Common Mode, Differential Mode
• Frequency Range: DC, 0 to 7 GHz
• Connector Type: N (female-female)
• Insertion Loss (@ Freq): <0.2 dB
• Return Loss: >22 dB
• Impedance: 50 ohm
• VSWR: <1.25:1
• Max Load Current (IL): 10 A
• Line Current Max: 10 A
• Volts: 48 V (RF)
• Residual Voltage: 90 V
• Power Rating: 25 W
• Wires: 1W+Ground
• Ambient Temp: -40°C to +85°C
• Surge Current (IMAX): 20 kA (10kA UL)
• Nominal Discharge Current (IN): 5 kA (8/20us)
• Technology: GDT, DC Pass
• Connection Method: Series Connector (In-Line), Bi-Directional

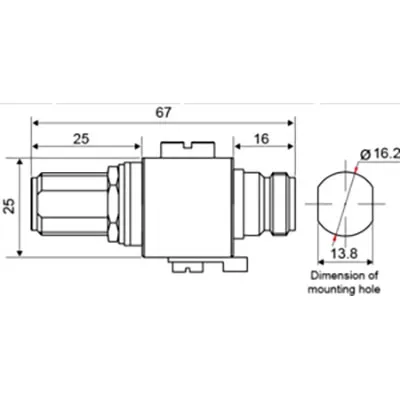

• Mounting: Bulkhead, Optional bracket
• Material: Cu, Zn, Sn plated Brass, PTFE
• Contacts: Bronze/Surface Au-Ag
• NEMA Rating (IP Rating): NEMA 6P (IP67)
• Spare Part: BA HF 90/20
• Certification: UL Listed
• UL Standard: UL497E
• UL Category: QVLA
• UL File Number: E349646
• Standards: NOM-003-SCFI-2014, NOM-001-SCFI-1993
