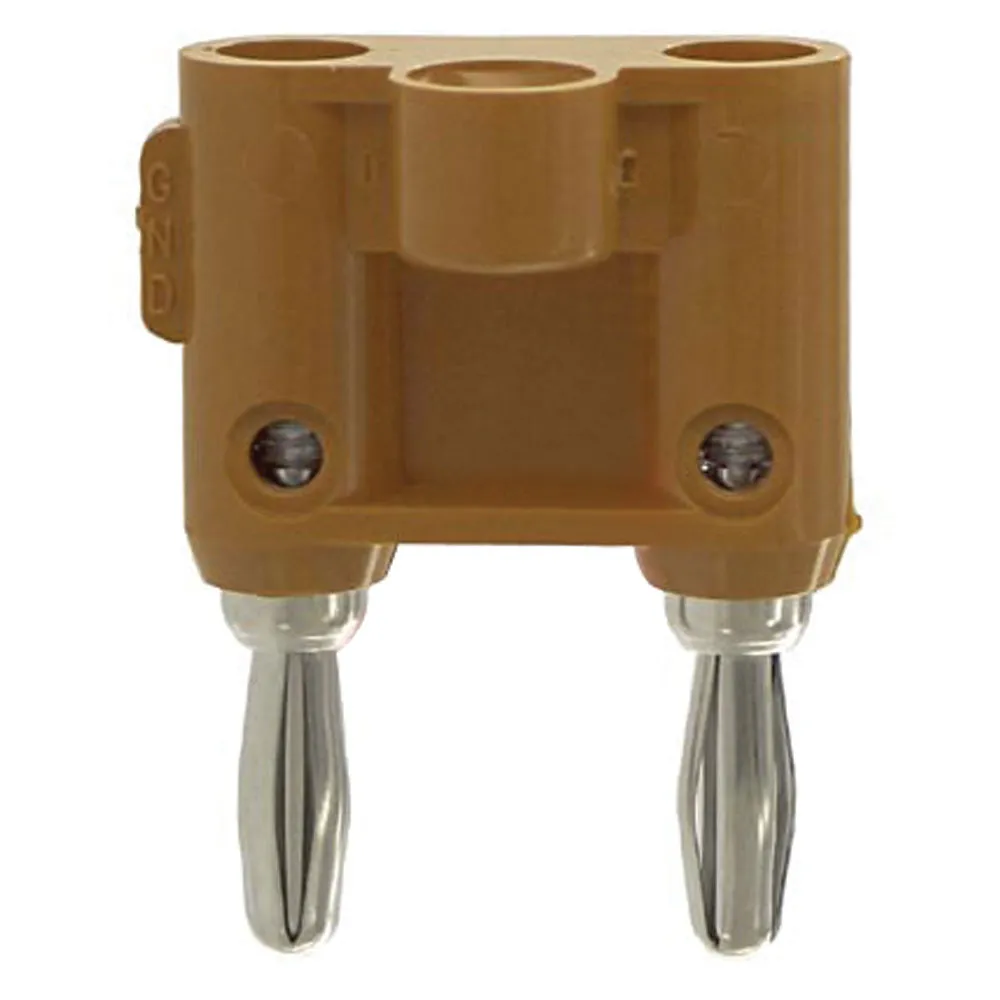

Orange Stackable Double Banana Plug with Cable Guide

Features:

  • Simplified attachment of cables or small components by means of set screws
  • For test versatility, banana plugs can be vertically stacked
  • Banana plug spring is Beryllium Copper for long insertion life
  • Banana Plug: Body - Brass, Nickel-plated; Spring - Beryllium Copper, Nickel-plated
  • Insulation: Polypropylene
  • Set screw: Steel, Zinc Plated, 8-32 Single Slot
  • Voltage rating: 5000Vrms max.
  • Current rating: 15 Amps
  • Maximum operating temperature: +122°F (+50°C) max
  • Dimensions: 1.13"L x 0.38"W x 1.55"H
  • Color: Orange

    • Product Identification

    Additional Feature:Cable Guide
    Product Type:Banana Plug, Double, Stackable

    Dimensions & Appearance

    Color:Orange
    Length:1.550 in.
    Body Material:Polypropylene (PP)
    Mounting Type:Free Hanging

    Features

    Contact Material:Beryllium Copper
    Insulation Material:Polypropylene (PP)
    Insulation:Yes
    Contact Plating:Nickel
    Gender:Male
    Wire Gauge (AWG):N/A
    Termination:Set Screw, Cross Hole
    Voltage Rating:5000 Vrms
    Current Rating:15 A
    ,
