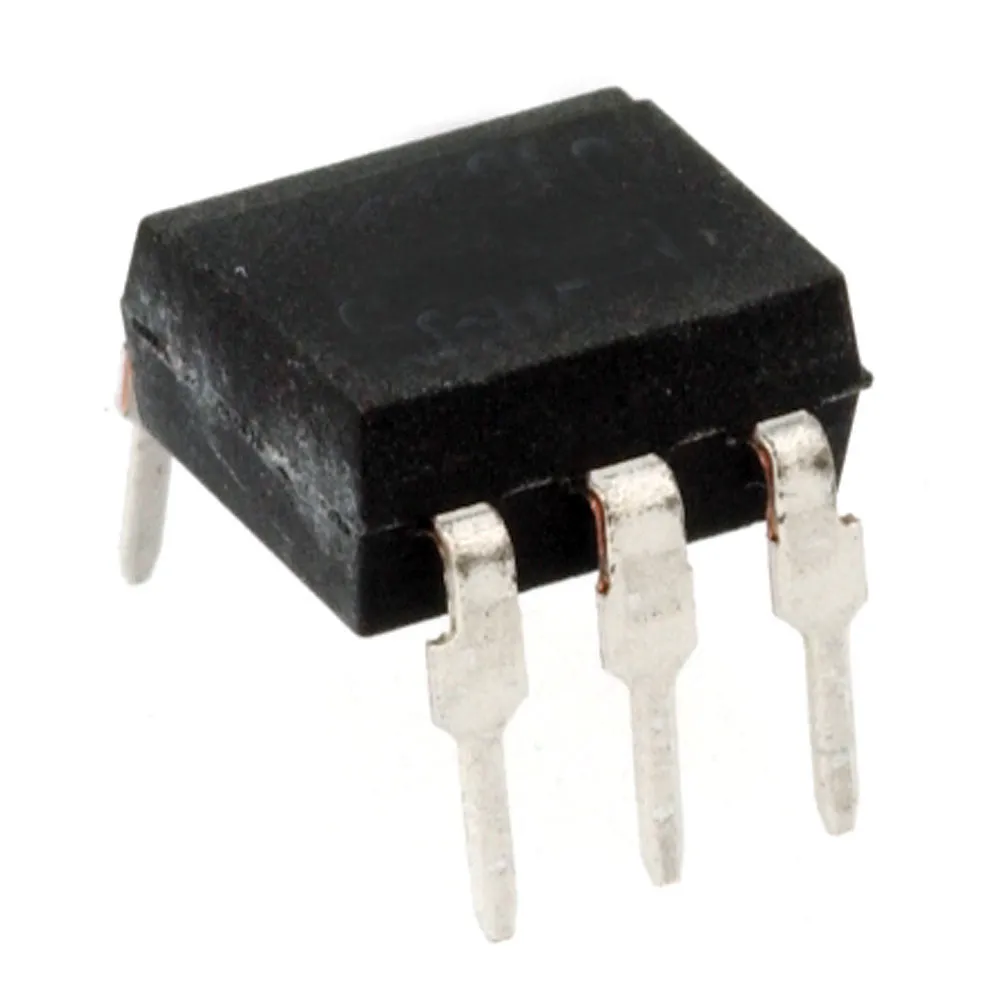

DIP-6 High Voltage Phototransistor Optocoupler

Features:

  • High voltage
  • High isolation voltage
  • 6-Pin dual-in-line package

    Specifications:

  • Voltage: 300V
  • Isolation voltage: 7500VAC peak
  • Collector current: 100mA
  • Operating temperature: -40°C to 100°C

    • Packaging

    Package:DIP-6

    Output

    Output Type:NPN

    Features

    Number of Channels:1
    Emitter Maximum Forward Voltage:1.5 V
    Emitter Maximum Forward Current:80 mA
    Detector Maximum Collector Current:100 mA
    Typical Fall Time:5 us
    Typical Rise Time:5 us
    Detector Maximum Collector Voltage:300 V
    Minimum Isolation Voltage:7500 Vrms
    Power Dissipation:300 mW
    ,
