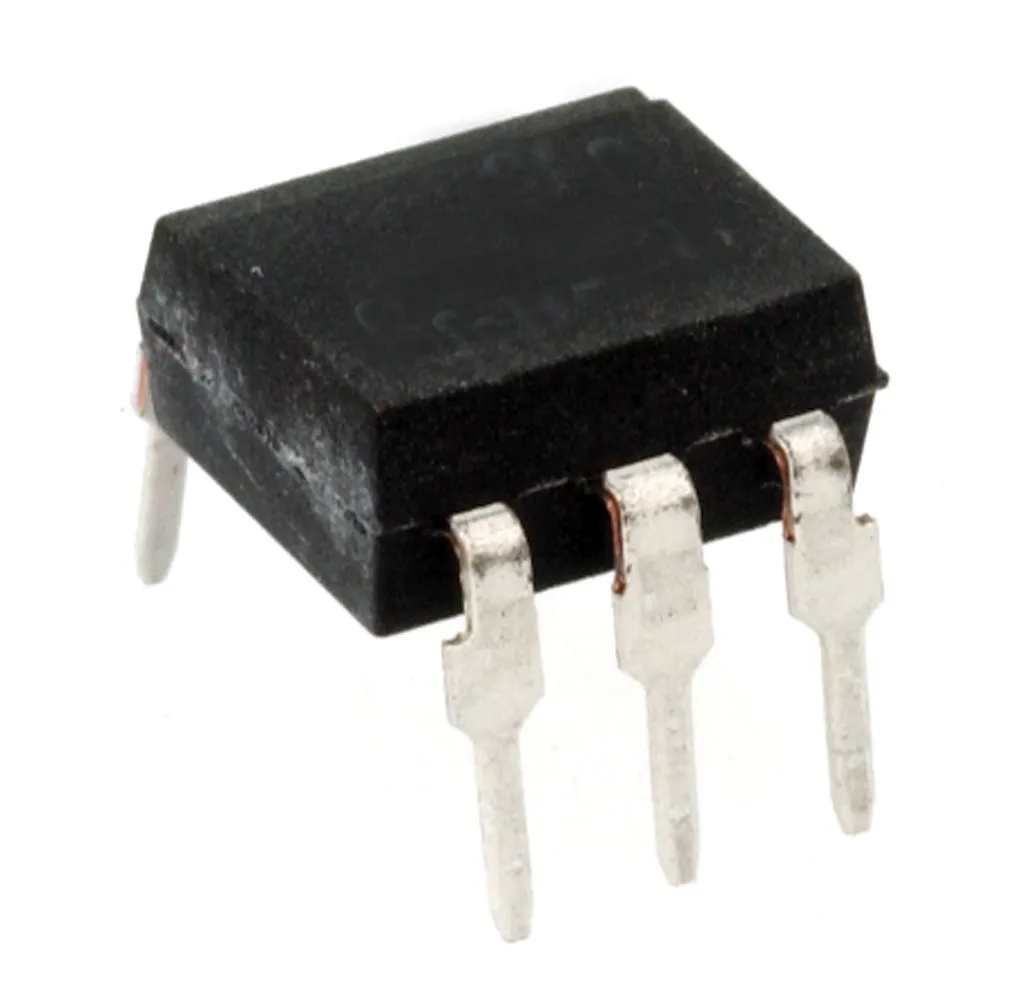

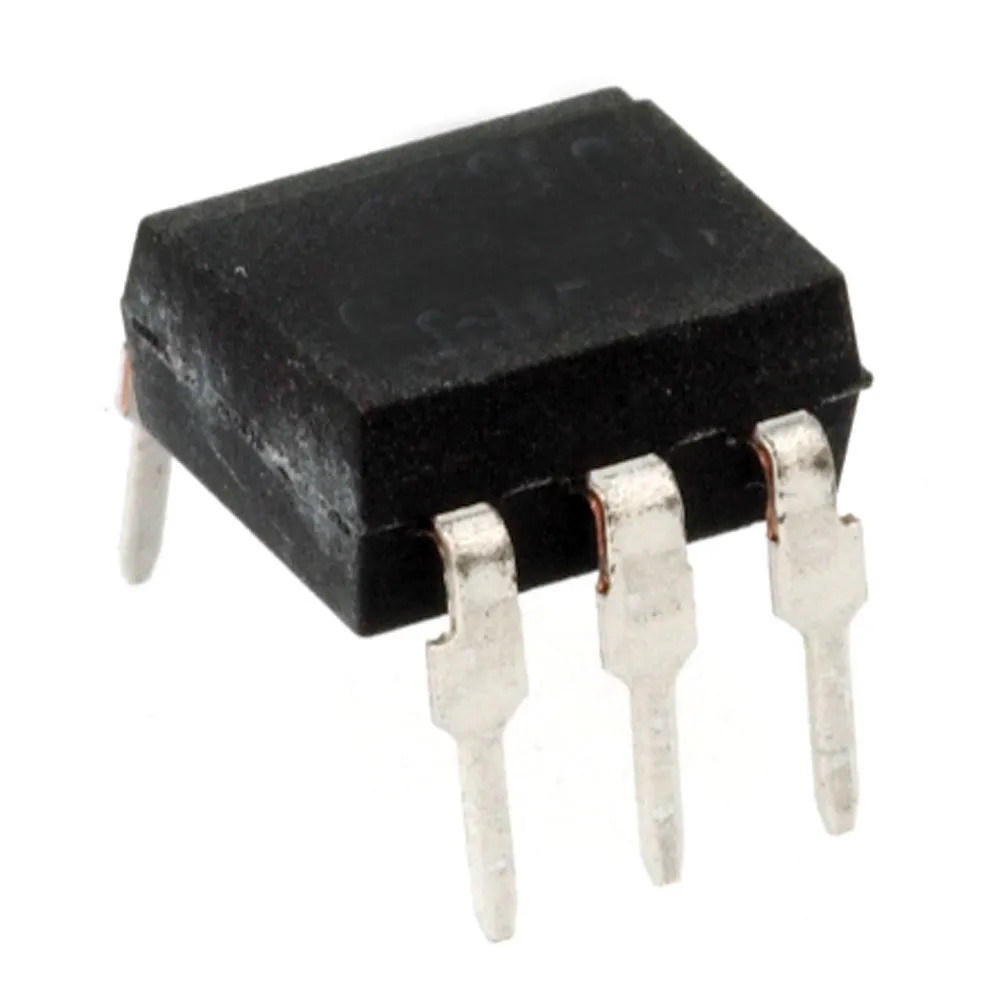

Optocoupler DC Input 1 Channel Trans w/ Base DC Output 6-Pin

Specifications

This optically coupled isolator consists of an infrared light emitting diode and NPN silicon photo transistor.
  • High current transfer ratio
  • High isolation voltage
  • All electrical parameters 100% tested

    • Packaging

    Package:DIP-6

    Output

    Output Type:NPN

    Features

    Number of Channels:1
    Detector Maximum Collector Current:50 mA
    Typical Rise Time:2 us
    Detector Maximum Collector Voltage:30 V
    Typical Fall Time:2 us
    Emitter Maximum Forward Voltage:1.5 V
    Emitter Maximum Forward Current:N/A
    Minimum Isolation Voltage:5300 Vrms
    Power Dissipation:160 mW
    ,
