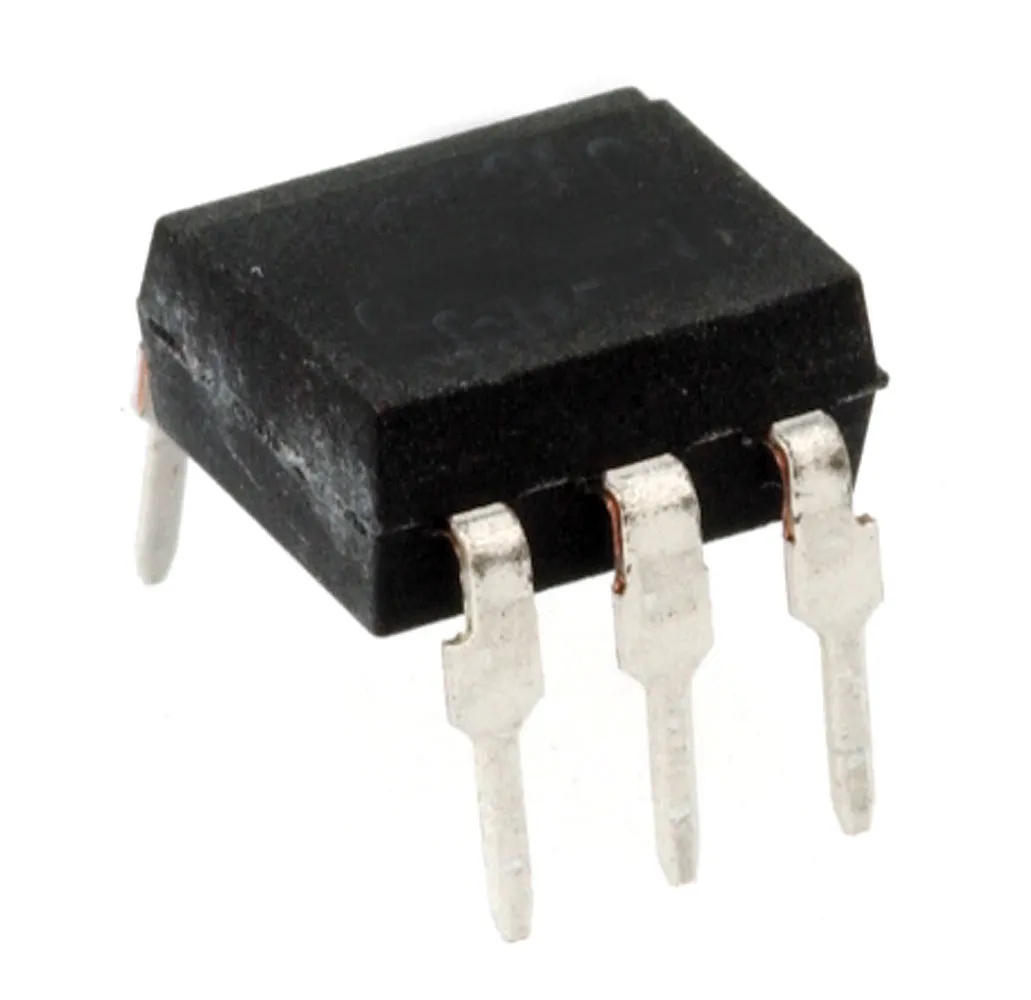

Optocoupler AC Input 1 Channel Trans w/ Base DC Output 6-Pin Black

Specifications

The H11AAX series consists of two gallium-arsenide infrared emitting diodes connected in inverse parallel driving a single silicon phototransistor output.

Features

  • Bi-polar emitter input
  • Built-in reverse polarity input protection
  • Underwriters Laboratory (UL) recognized - File #E90700
  • VDE approved - File #E94766 (ordering option '300')

    Applications

  • AC line monitor
  • Unknown polarity DC sensor
  • Telephone line interface

    • Packaging

    Package:DIP-6

    Output

    Output Type:NPN

    Features

    Number of Channels:1
    Detector Maximum Collector Current:50 mA
    Detector Maximum Collector Voltage:30 V
    Emitter Maximum Forward Voltage:1.5 V
    Typical Rise Time:3 us
    Emitter Maximum Forward Current:100 mA
    Typical Fall Time:5 us
    Minimum Isolation Voltage:5000 Vrms
    Power Dissipation:150 mW
    ,
