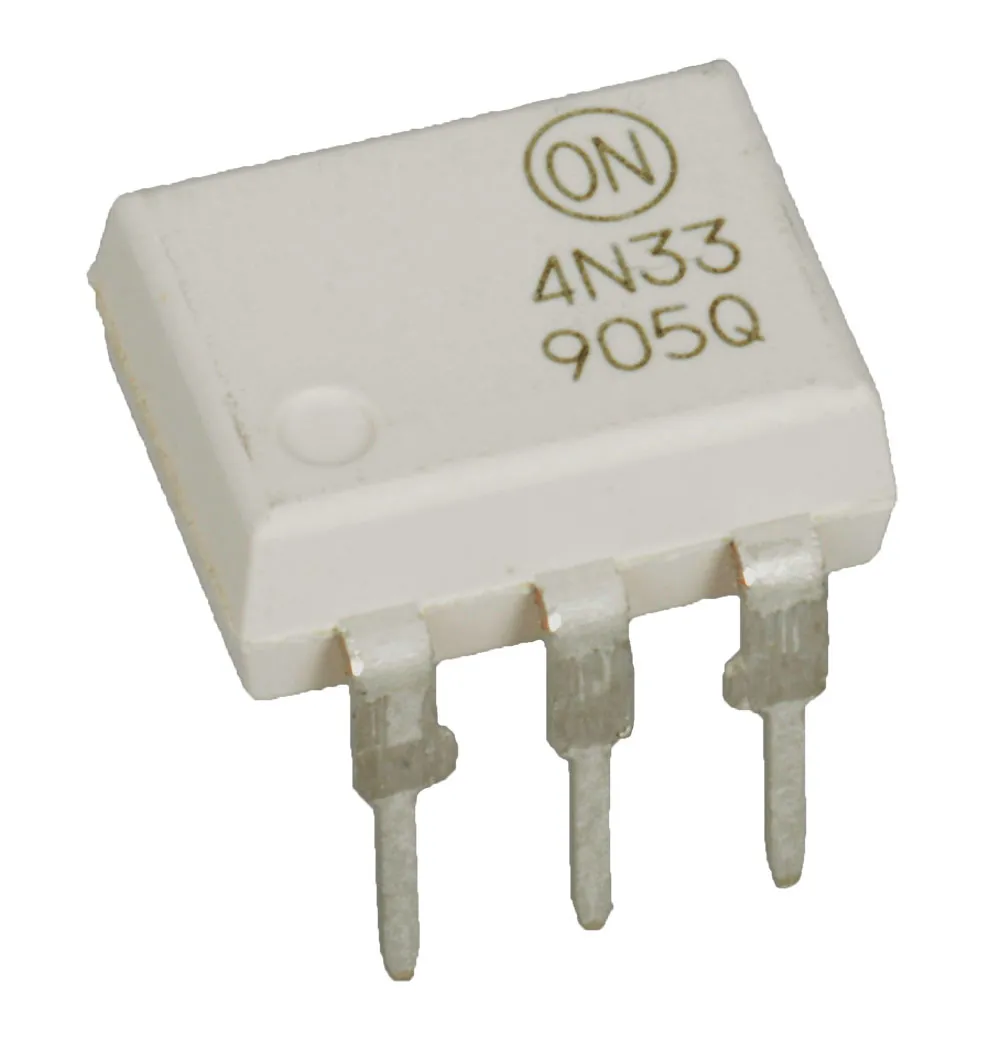

Optocoupler DC Input 1 Channel DARL w/ Base DC Output 6-Pin

Specifications

This series of optically coupled isolators consists of an infrared LED and NPN silicon photodarlington.
  • High current transfer ratio
  • High isolation voltage
  • All electrical parameters 100% tested

    Applications

  • Computer terminals
  • Industrial systems controllers
  • Signal transmission between systems of different potentials and impedances

    • Packaging

    Package:DIP-6

    Output

    Output Type:Darlington

    Features

    Number of Channels:1
    Detector Maximum Collector Current:50 mA
    Detector Maximum Collector Voltage:30 V
    Emitter Maximum Forward Voltage:1.5 V
    Emitter Maximum Forward Current:80 mA
    Typical Rise Time:5 us
    Minimum Isolation Voltage:5300 Vrms
    Typical Fall Time:100 us
    Power Dissipation:150 mW
    ,
