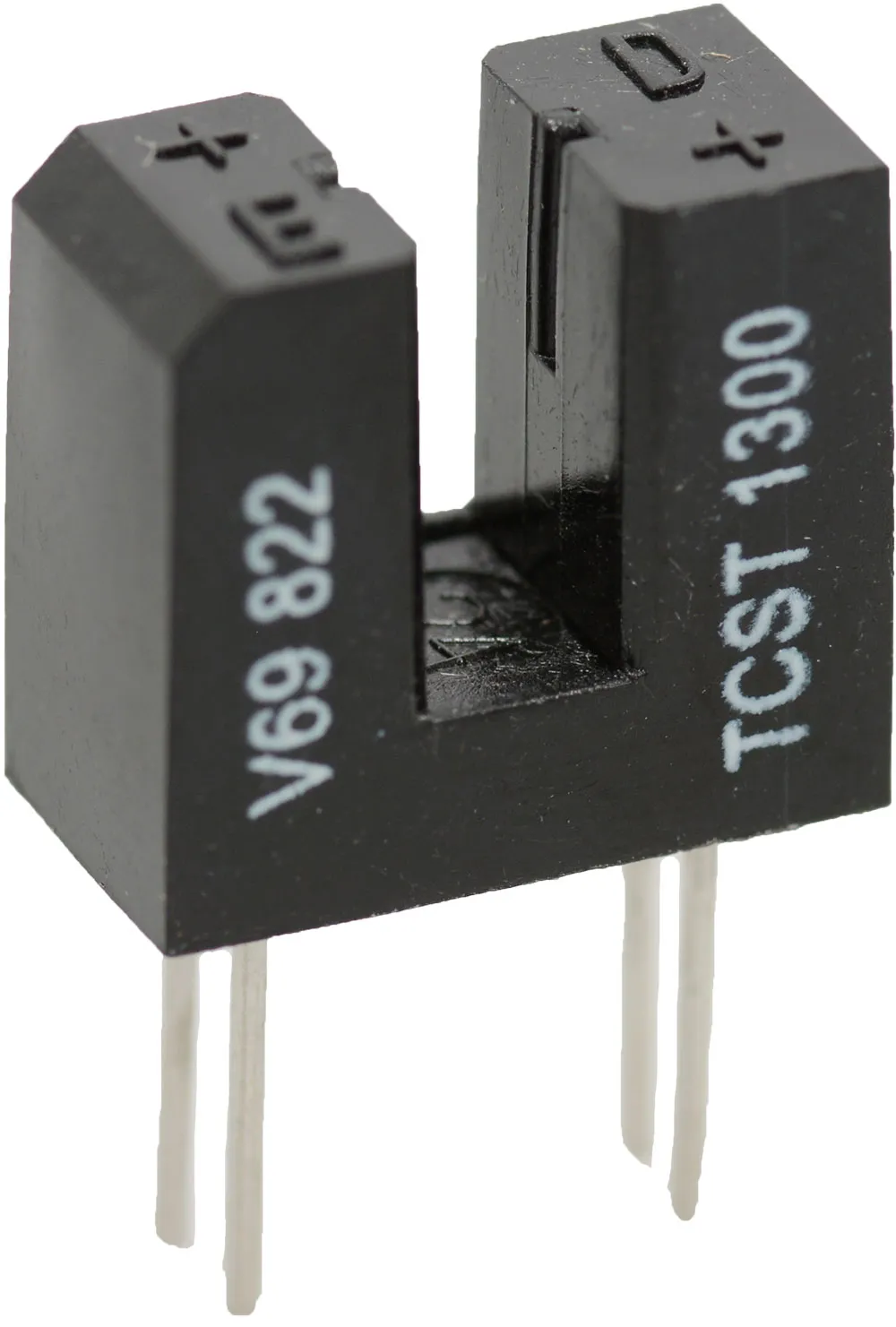

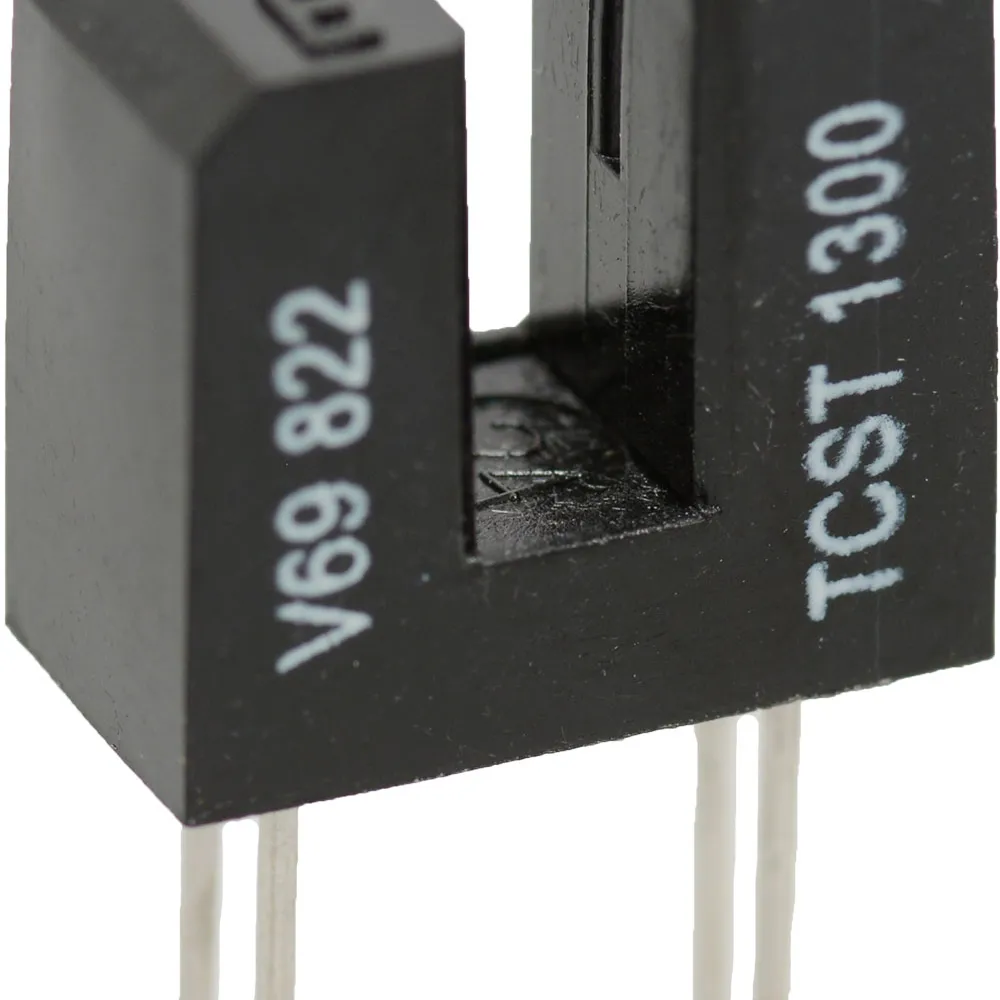

Optical Sensor Through-Beam 3.1mm Phototransistor Slotted Module 4-Lead Dual Row

Features

  • Sensing Distance: 3.1 mm
  • Sensing Method: Through-Beam
  • Output Configuration: Phototransistor
  • Current - DC Forward (If) (Max): 60 mA
  • Current - Collector (Ic) (Max): 500 µA
  • Voltage - Collector Emitter Breakdown (Max): 70 V
  • Response Time: 10µs, 8µs
  • Operating Temperature: -55°C to 85°C
  • Mounting Type: Through Hole
  • Package: Slotted Module, 4-Lead Dual Row
  • Type: Unamplified
  • Base Number: TCST1300

,
