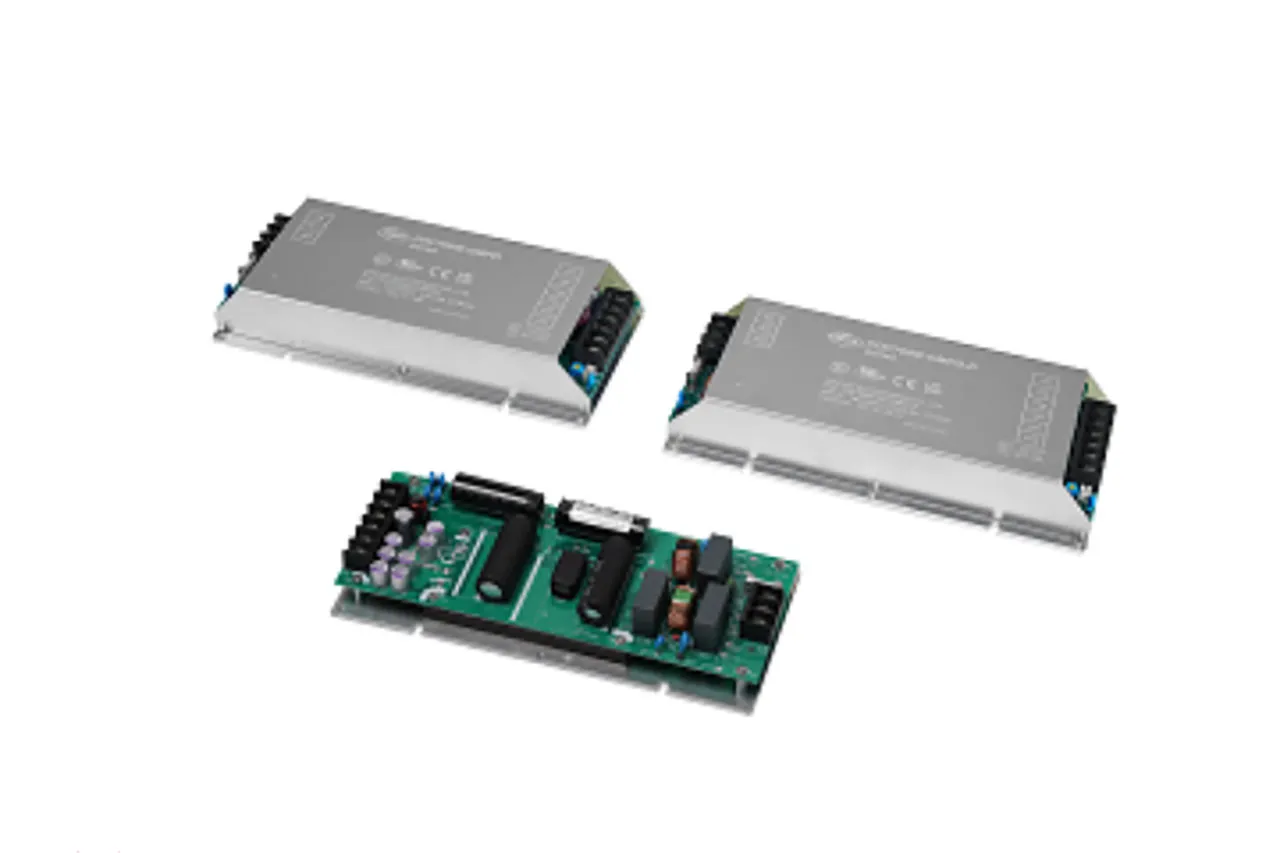

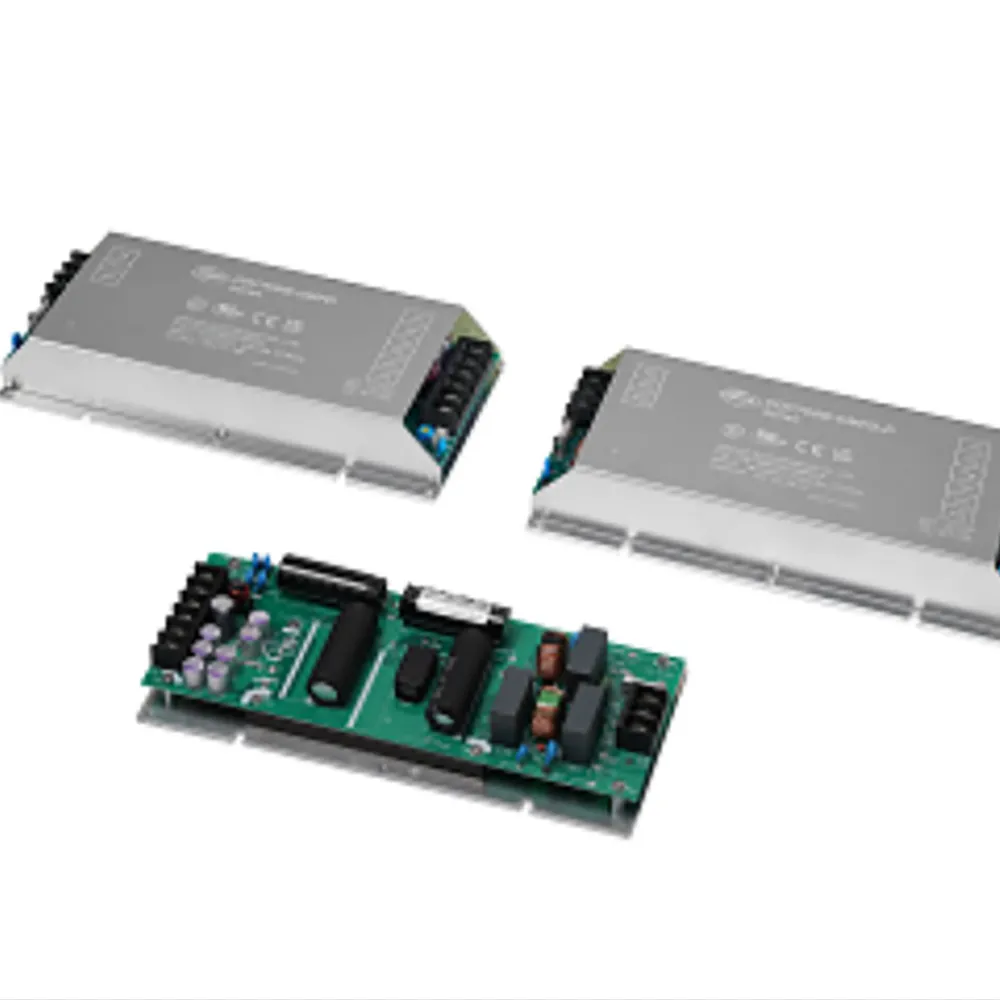

Open Frame Power Supply 48V 14.6A 700W with Built-in Filter

Features

  • Universal Input Range 90~264Vac
  • Efficiency up to 91.5%
  • Class I
  • Approval Safety IEC/EN/UL 62368-1 Ed 3.0
  • Operating Altitude 5000m
  • Remote On/Off
  • Over Temperature Protection
  • Over Voltage Protection
  • Continuous Short Circuit Protection
  • Chassis Mounting, Base Plate Cooled
  • Built-In EMI Filter
  • PDF700S-CMFD-P for Parallel Operation
  • Compliance to CE102/RE101 of MIL-STD-461F

Overview

Open Frame Power Supply 48V 14.6A 700W with Built-in Filter.

Product Identification

Product Type:AC-DC Power Supply with PFC
Manufacturer Series:PDF700S CMFC(D/D-P)

Compliance

Agency Approvals: CE, CUL, EN, UKCA, UL

Dimensions & Appearance

Style:Open Frame
Height:1.59 in.
Width:4.33 in.
Length:9.45 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:95°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:9 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Output Current:14.60 A

Features

PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:91%
Power Rating:700 W
,
