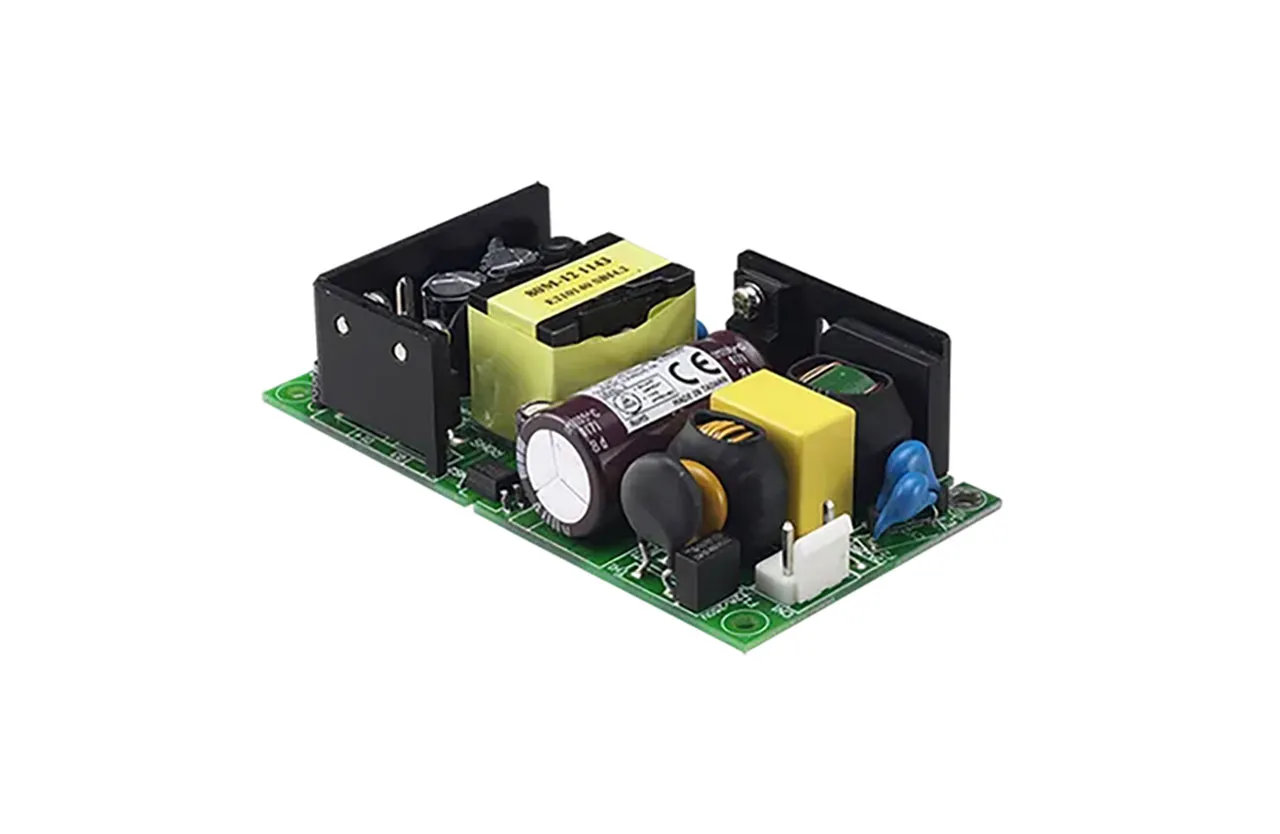

Open Frame Power Supply 24V 3.35A Class 1 90-264VAC UL

Features

  • Universal Input Range 90 to 264Vac
  • High Efficiency up to 90%
  • 2"x 4" Compact Size
  • Meets Class I
  • No Load Input Power Consumption <0.5W
  • Approval Safety IEC/EN/UL 62368-1 Ed 3.0
  • Meets EN 55032 and CISPR/FCC Class B
  • Operating Altitude 2000m
  • Continuous Short Circuit Protection

Overview

Open Frame Power Supply 24V 3.35A Class 1 90-264VAC UL.

Product Identification

Product Type:Open Frame AC-DC Power Module
Manufacturer Series:CFM80S

Compliance

Agency Approvals: CE, CUL, EN, FCC, TUV, UKCA, UL

Dimensions & Appearance

Style:Open Frame
Height:0.91 in.
Width:2 in.
Length:4 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:2 A

Output

Number of Outputs:1
Output Connector Type:JST VHR-6N or equiv.
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:3.35 A

Features

PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:90%
Power Rating:80 W
,
