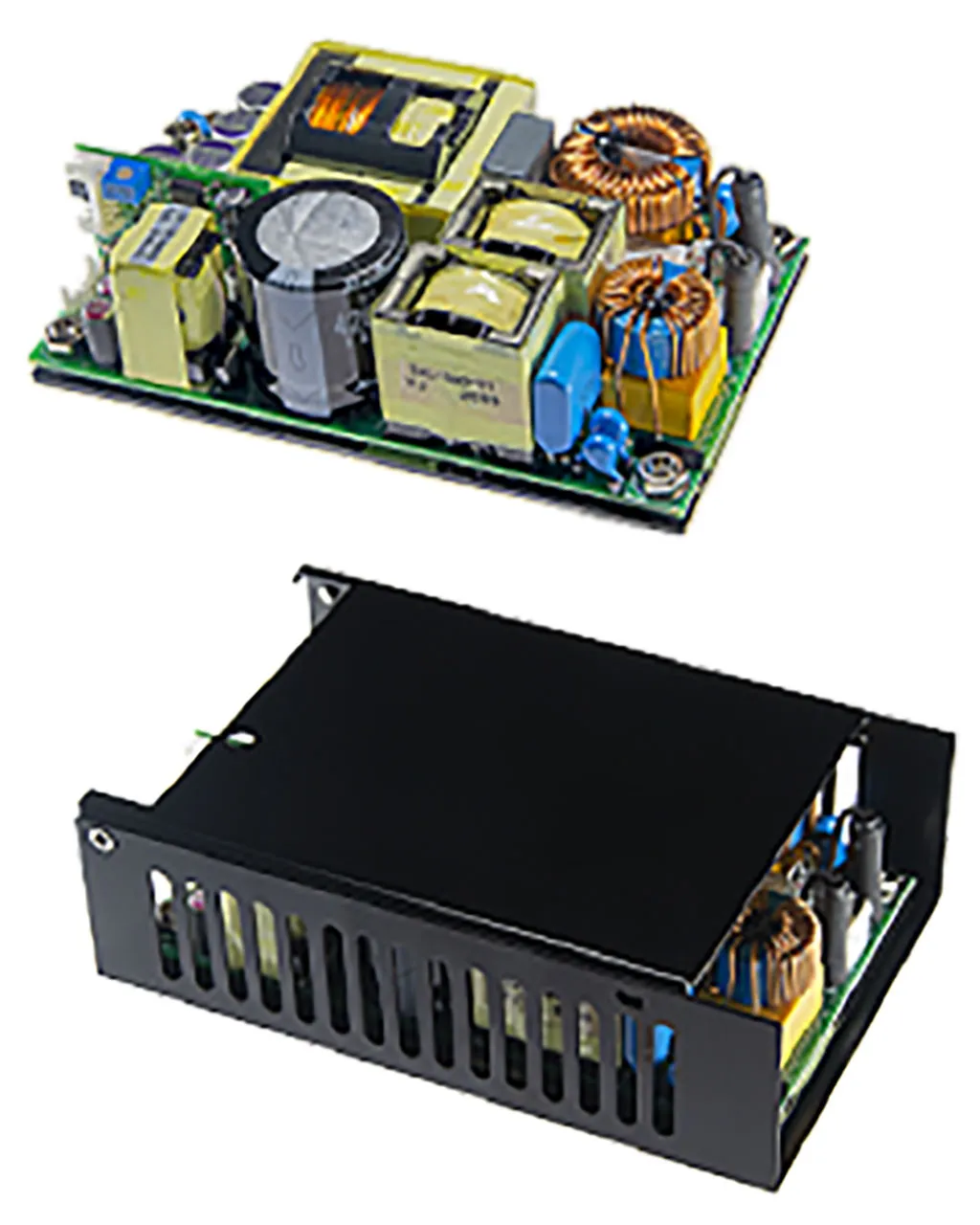

Open Frame Medical Approved AC-DC Power Module with Fan and PFC 24VDC 20.83A with Fan 15.83A 500W

Features

  • Universal Input Range 80 to 264 Vac
  • High Efficiency up to 94.5%
  • 3" x 5" Compact Size
  • Class I
  • No Load Power Consumption <0.5W
  • Peak Power Operation up to 600 Watt for 5s
  • Approval IEC/EN/UL 60601-1 2 MOPP
  • Approval EN 55011 47 CFR FCC Part 18
  • Active PFC Meets EN 61000-3-2
  • Design Meets IEC/EN 60335-1
  • Operating Altitude 5000m
  • High Power Density up to 21.64W/Inch³
  • 390W Natural 470 to 500W Conduction Convection
  • Over Temperature Protection
  • PS On/Off Remote Control
  • Power Good & Power Fail Signal
  • +5V Stand-by 12V Fan Output
  • Low Inrush Current
