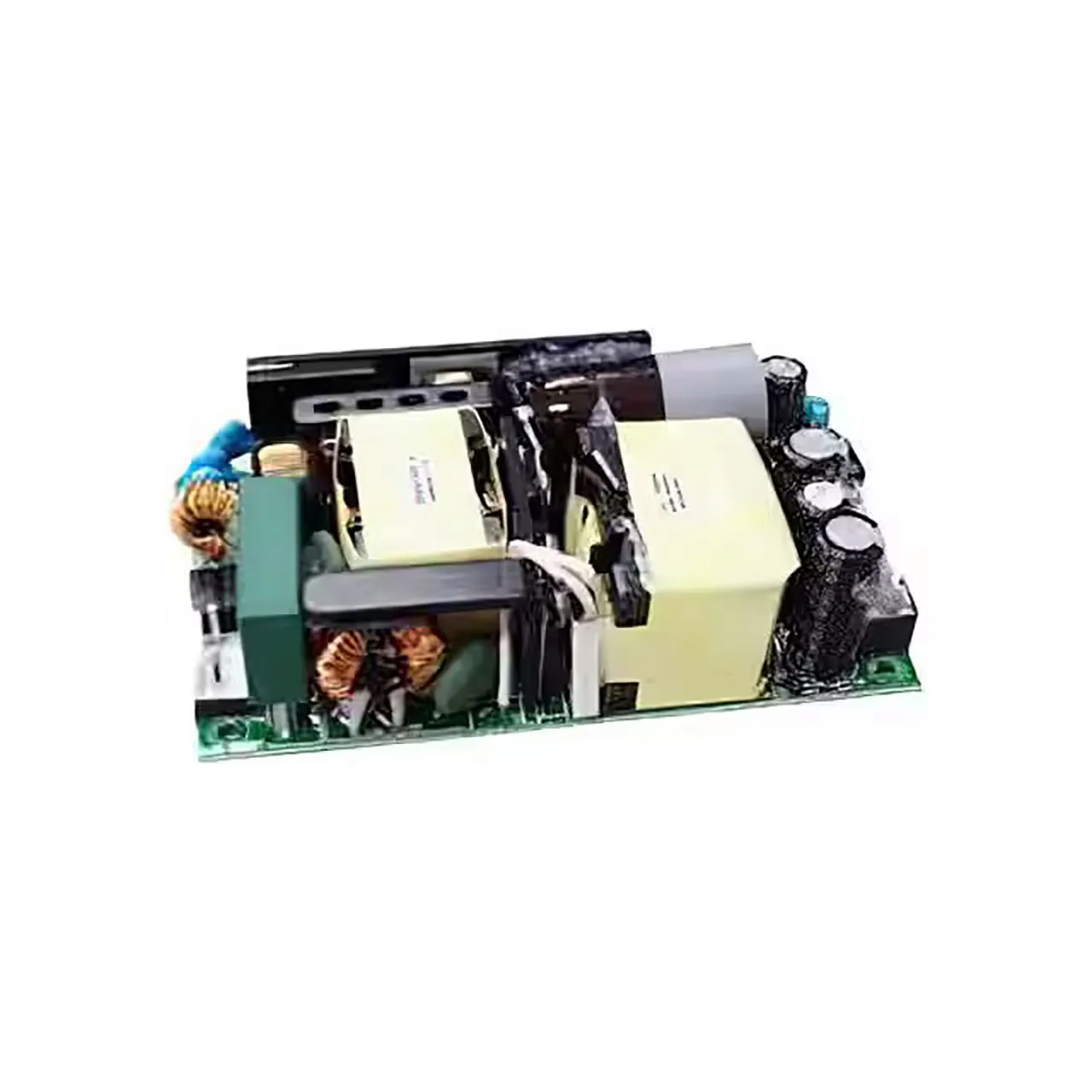

Open Frame Medical AC-DC Switching Power Supply 12 VDC 20 A 240 Watt

Features

  • Cooling by free air convection
  • 240W when using 10 CFM forced air fan
  • 2x MOPP insulated
  • Built-in active PFC
  • Built-in 12V / 0.5A fan supply
  • Family: HDM240O
  • Output Voltage - Channel 1: 12 VDC
  • Output Current - Channel 1: 20 A
  • Number of Outputs: 1
  • Maximum Output Power (W): 240
  • Input Voltage: 90 VAC to 264 VAC
  • Input Frequency: 47 Hz to 63 Hz
  • Maximum Input Current: 3 A
  • Type: Switching
  • Industry: Commercial, Industrial, Medical
  • Isolation Voltage: 4000V
  • Style: Open Frame
  • Mounting Style: Chassis
  • Length (inch): 4.02
  • Width (inch): 2.05
  • Height (inch): 1.09
  • Agency Approvals: UL, CUL, CB, CE, EN, IEC
  • Efficiency (%): 92.5
  • Output Connector Type: Screw Terminal Block

,
