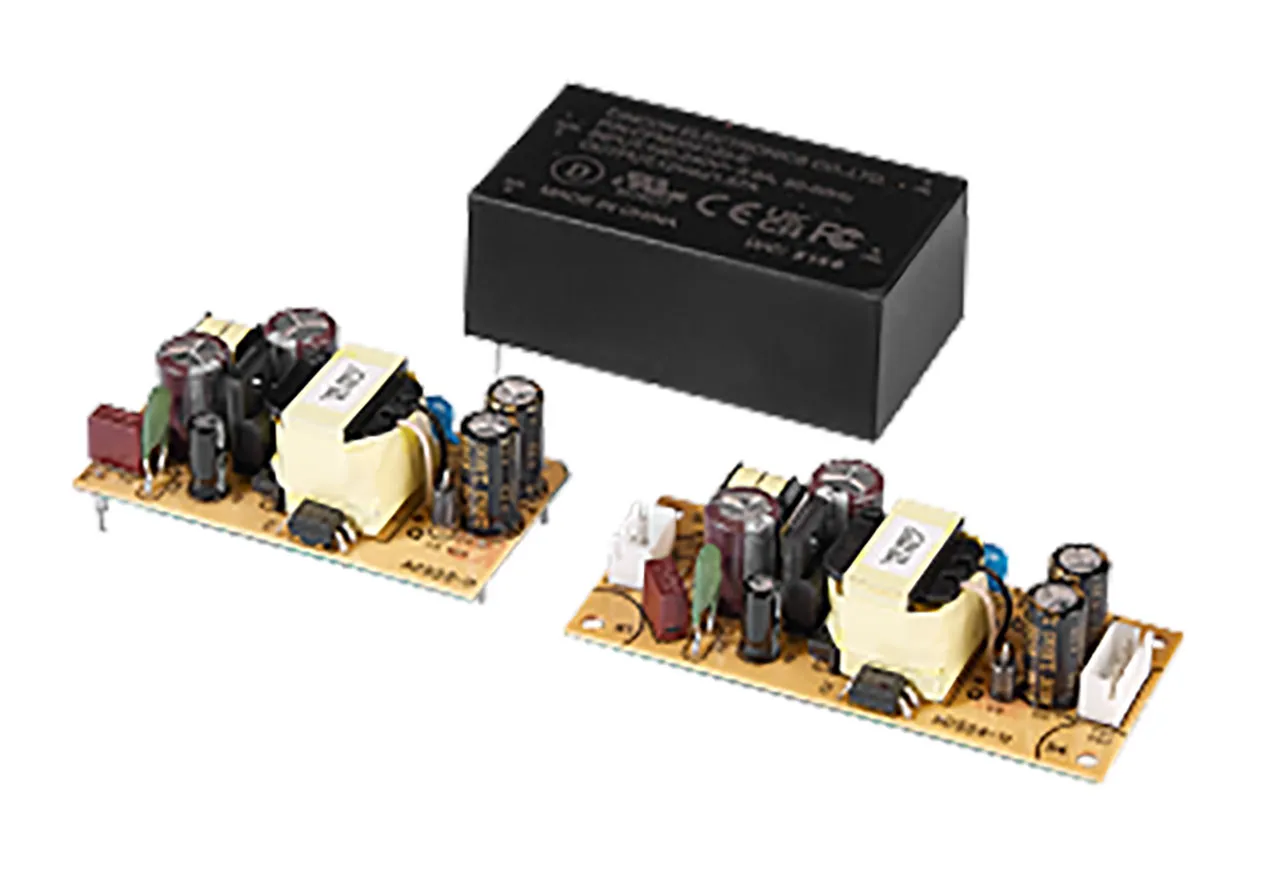

Open Frame Class 2 ITE AC-DC Power Module 12VDC 1.67A 20W JST B4B-XH

Features

  • Universal Input Range 90 to 264 Vac
  • High Efficiency up to 87%
  • 1.30" x 2.38" Size
  • Class II
  • No Load Power <0.1W
  • Approval IEC/EN/UL 62368-1 Ed 3.0
  • Design Meets IEC/EN 60335-1
  • Approval EN 55032 Class B and CISPR/FCC Class B
  • Operating Altitude 5000m
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • Over Voltage Category OVC II & OVC III

Overview

Product Identification

Manufacturer Series:CFM20S

Compliance

Agency Approvals: CE, CUL, EN, FCC, UKCA, UL

Dimensions & Appearance

Style:Open Frame
Height:0.83 in.
Width:1.30 in.
Length:3 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C

Input

Input Frequency:50 Hz to 60 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.6 A

Output

Number of Outputs:1
Output Connector Type:JST B4B-XH or equiv.
Output Voltage:12 VDC
Additional Output Voltages (VDC):N/A
Output Current:1.67 A

Features

PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:4300V
Efficiency:86%
Power Rating:20 W
,
