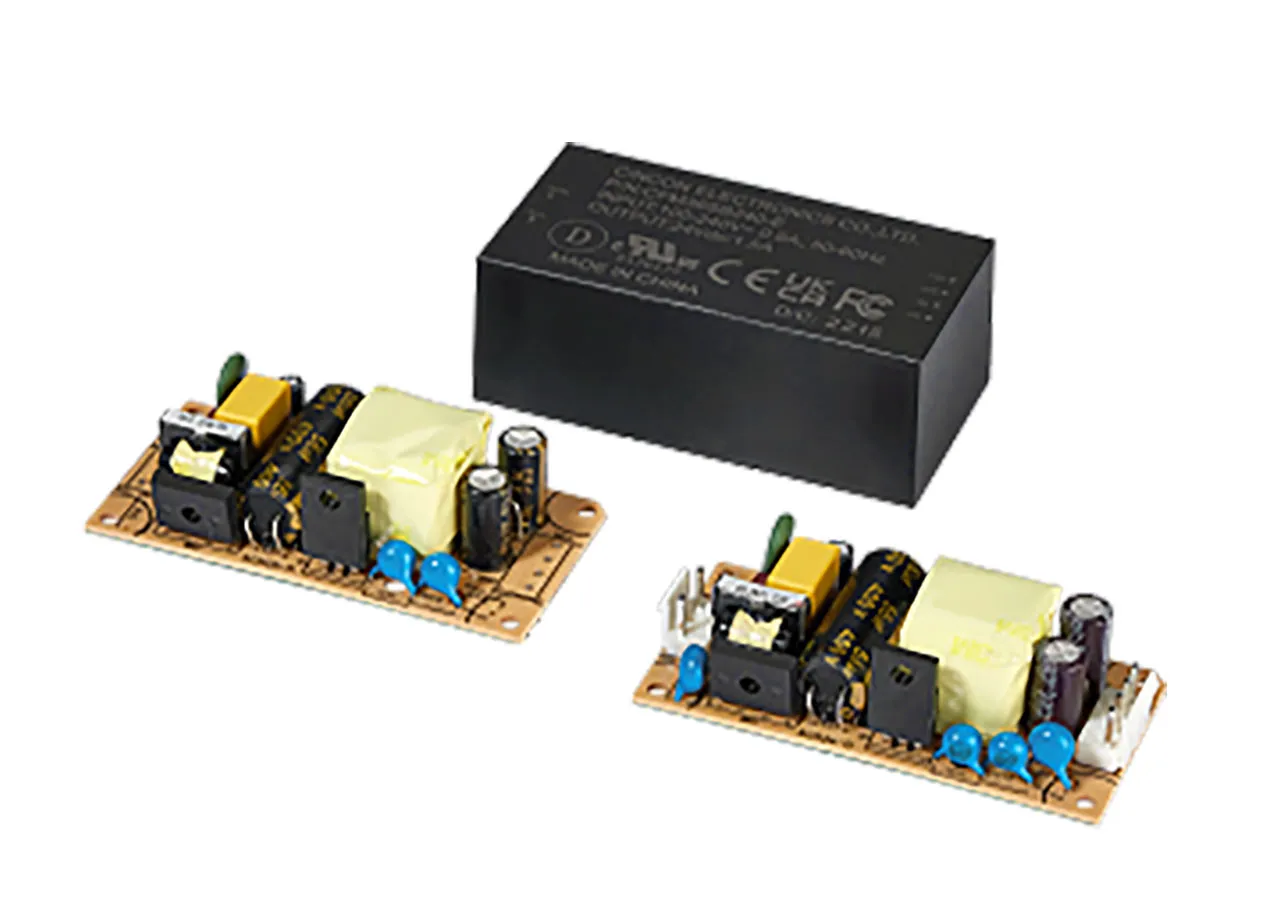

Open Frame Class 1 ITE AC-DC Power Module 12VDC 3A 36W JST-PH

Features

  • Universal Input Range 90 to 264 Vac
  • High Efficiency up to 89%
  • 1.5"x 3" Size
  • Class II or I
  • No Load Power <0.1W
  • Approval IEC/EN/UL 62368-1
  • Approval EN 55032 Class B and CISPR/FCC Class B
  • Design Meets IEC/EN 60335-1
  • Operating Altitude 5000m
  • Continuous Short Circuit Protection
  • Over Voltage Protection

Overview

Product Identification

Manufacturer Series:CFM36S

Compliance

Agency Approvals: CE, CUL, EN, FCC, UKCA, UL

Dimensions & Appearance

Style:Open Frame
Height:1 in.
Width:1.50 in.
Length:3 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C

Input

Input Frequency:50 Hz to 60 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.9 A

Output

Number of Outputs:1
Output Connector Type:JST-PH or equiv.
Output Voltage:12 VDC
Additional Output Voltages (VDC):N/A
Output Current:3 A

Features

PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:4000V
Efficiency:88%
Power Rating:36 W
,
