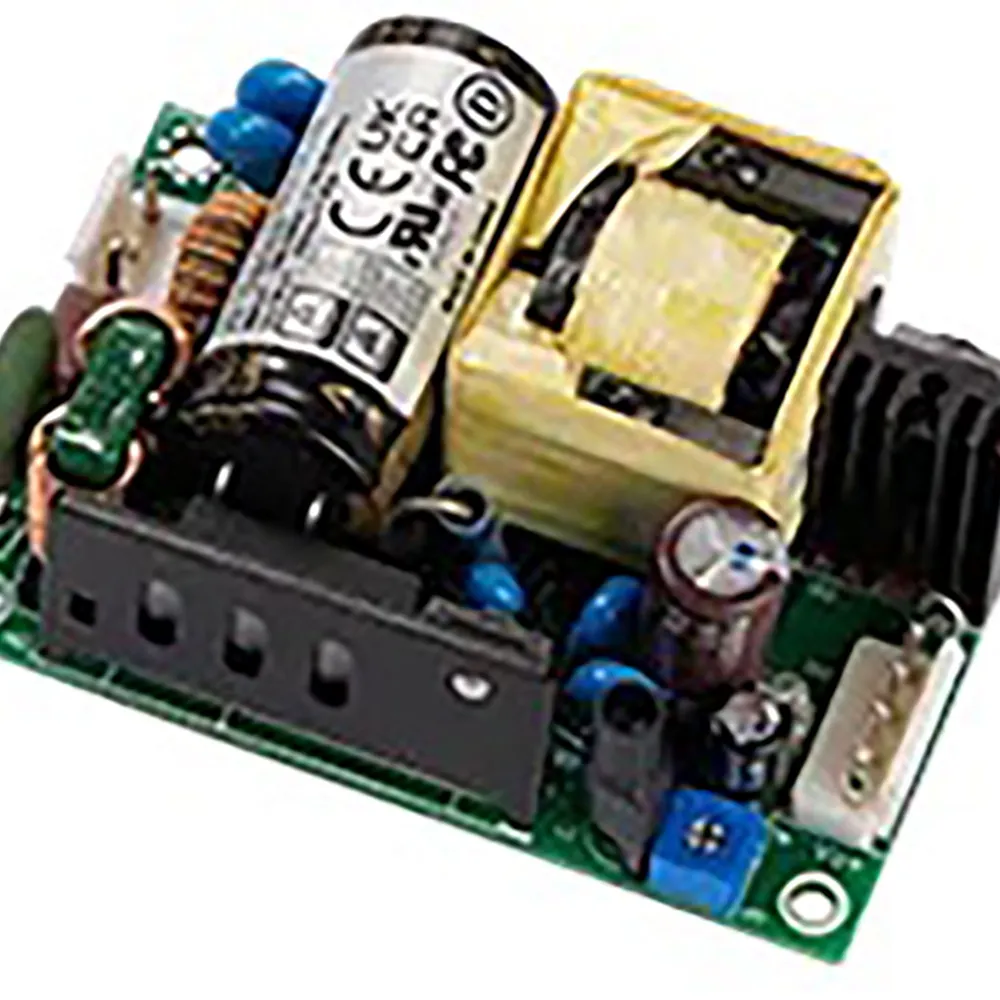

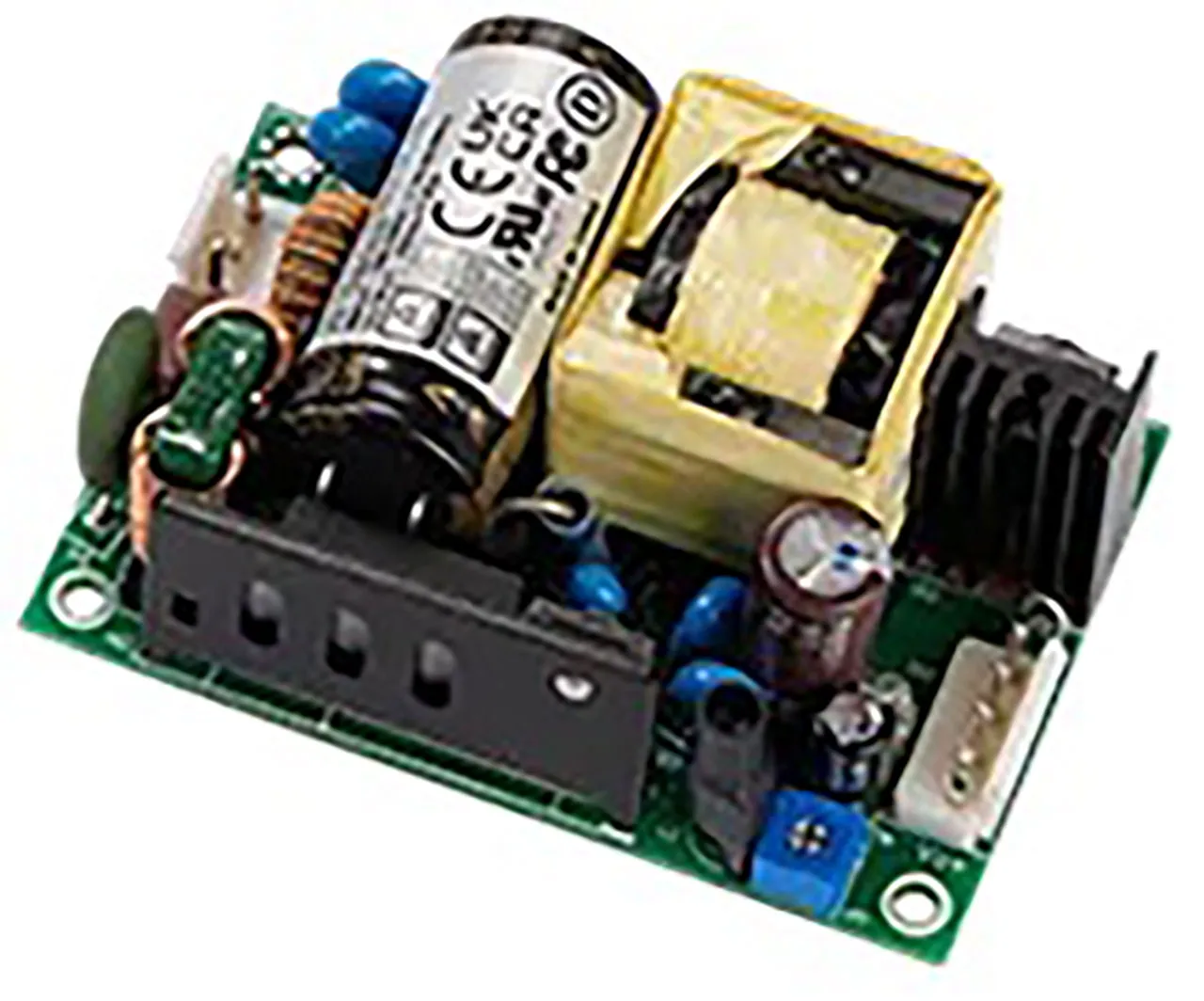

Open Frame AC-DC Power Supply 80W 15V 5.36A Wafer JST VHR and SVH Connectors
Product Identification
Additional Feature:Class 1, Class 2
Product Type:Open Frame AC-DC Power Module
Manufacturer Series:CFM81S
Compliance
Agency Approvals: CE, CUL, D, EN, FCC, TUV, UKCA, UL
Dimensions & Appearance
Style:Open Frame
Height:1.34 in.
Width:2 in.
Length:3 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:80°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.7 A
Output
Number of Outputs:1
Output Connector Type:JST VHR or equiv., JST SVH
Output Voltage:15 VDC
Additional Output Voltages (VDC):N/A
Output Current:5.36 A
Features
PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000VAC
Efficiency:89%
Power Rating:80 W
