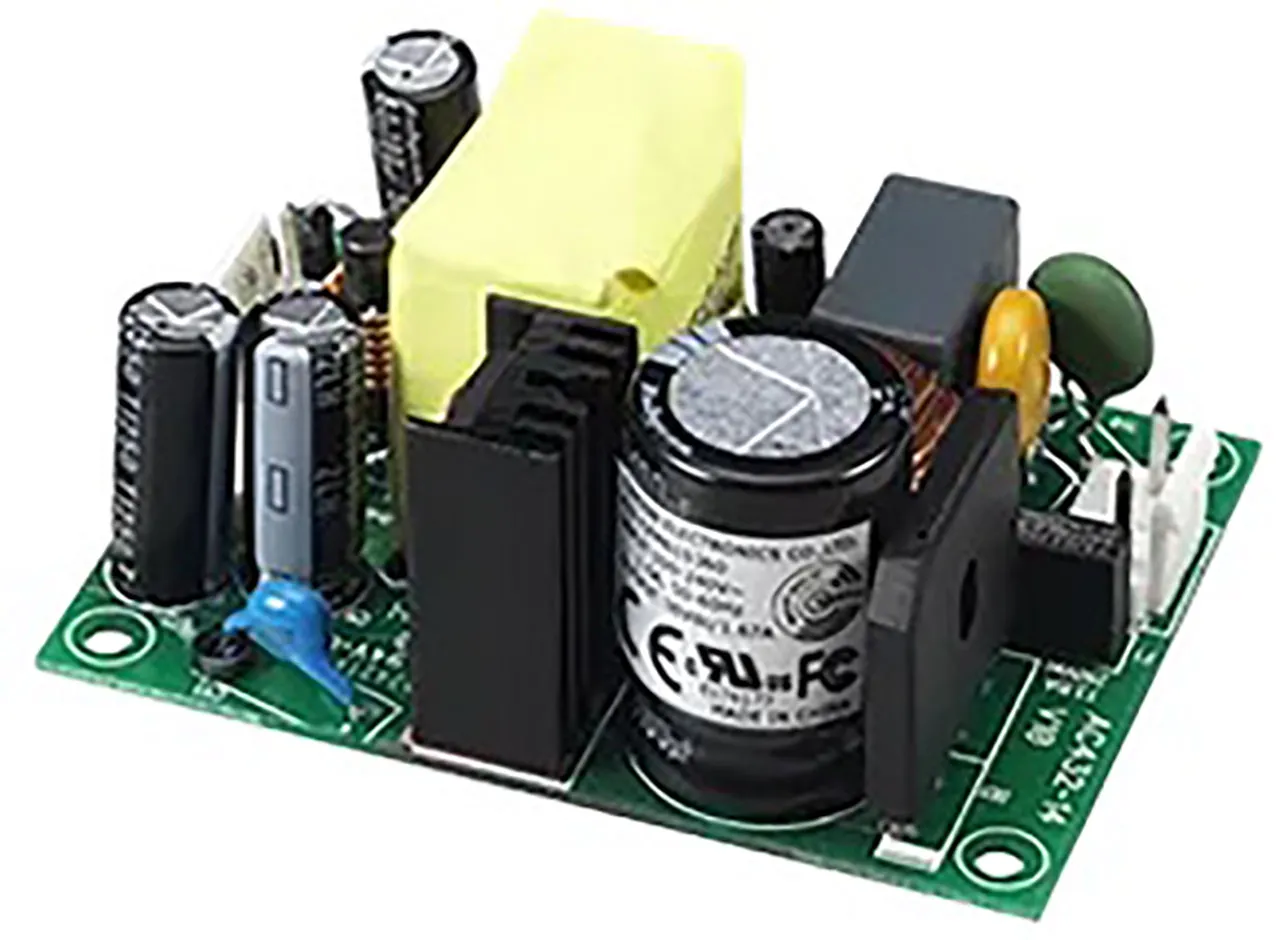

Open Frame AC-DC Power Supply 60W 48V 1250mA Wafer JST-VHR Connector Class 2
Product Identification
Additional Feature:Class 2
Product Type:Open Frame AC-DC Power Module
Manufacturer Series:CFM61S
Compliance
Agency Approvals: CE, CUL, D, EN, FCC, UKCA, UL
Dimensions & Appearance
Style:Open Frame
Height:1.34 in.
Width:2 in.
Length:2.70 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:80°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.5 A
Output
Number of Outputs:1
Output Connector Type:JST VHR-6N or equiv.
Output Voltage:48 VDC
Additional Output Voltages (VDC):N/A
Output Current:1.25 A
Features
PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000VAC
Efficiency:90%
Power Rating:60 W
