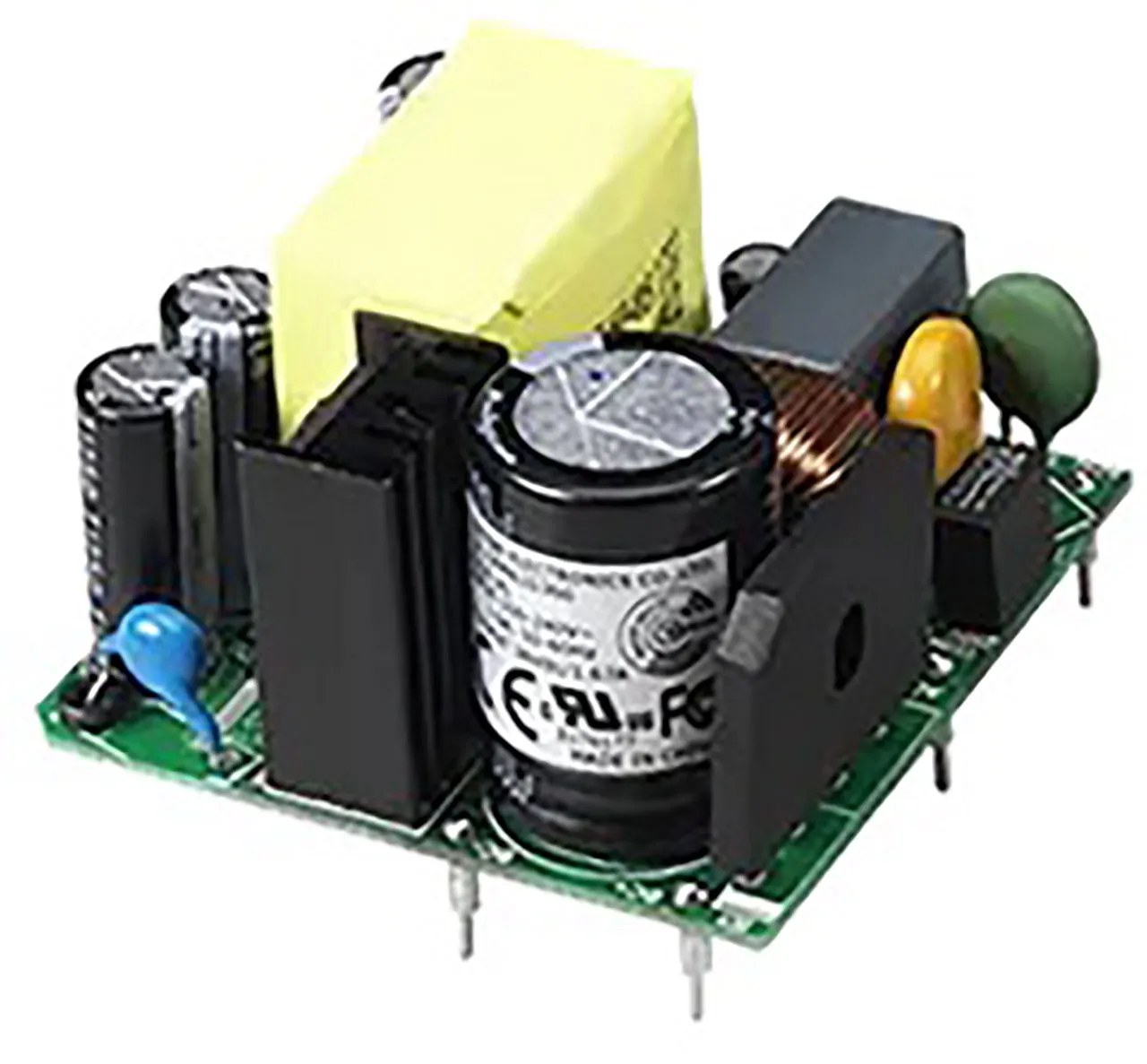

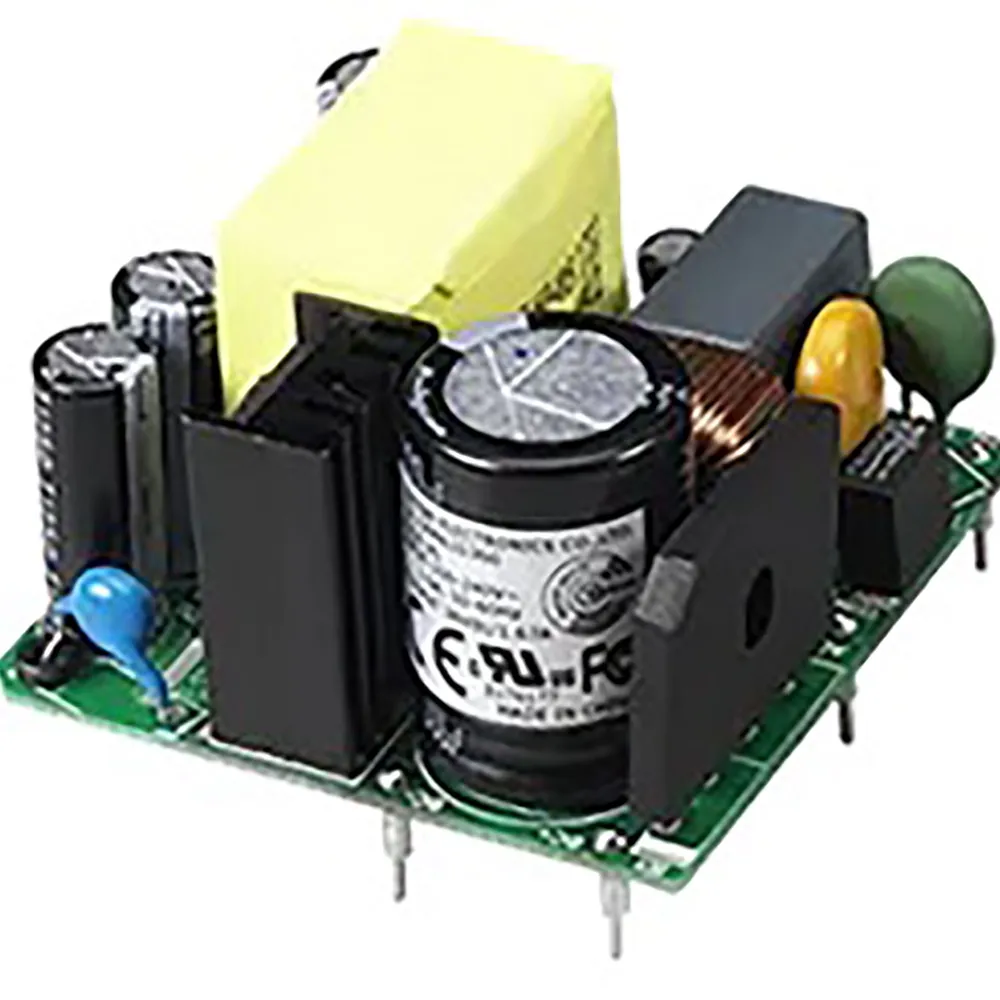

Open Frame AC-DC Power Supply 40W 5V 8A PCB Mount Class 2
Product Identification
Manufacturer Series:CFM61S
Compliance
Agency Approvals: CE, CUL, D, EN, FCC, UKCA, UL
Dimensions & Appearance
Style:Open Frame
Height:1.40 in.
Width:2 in.
Length:2 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:80°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.5 A
Output
Number of Outputs:1
Output Voltage:5 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:8 A
Features
PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000VAC
Efficiency:88%
Power Rating:40 W
