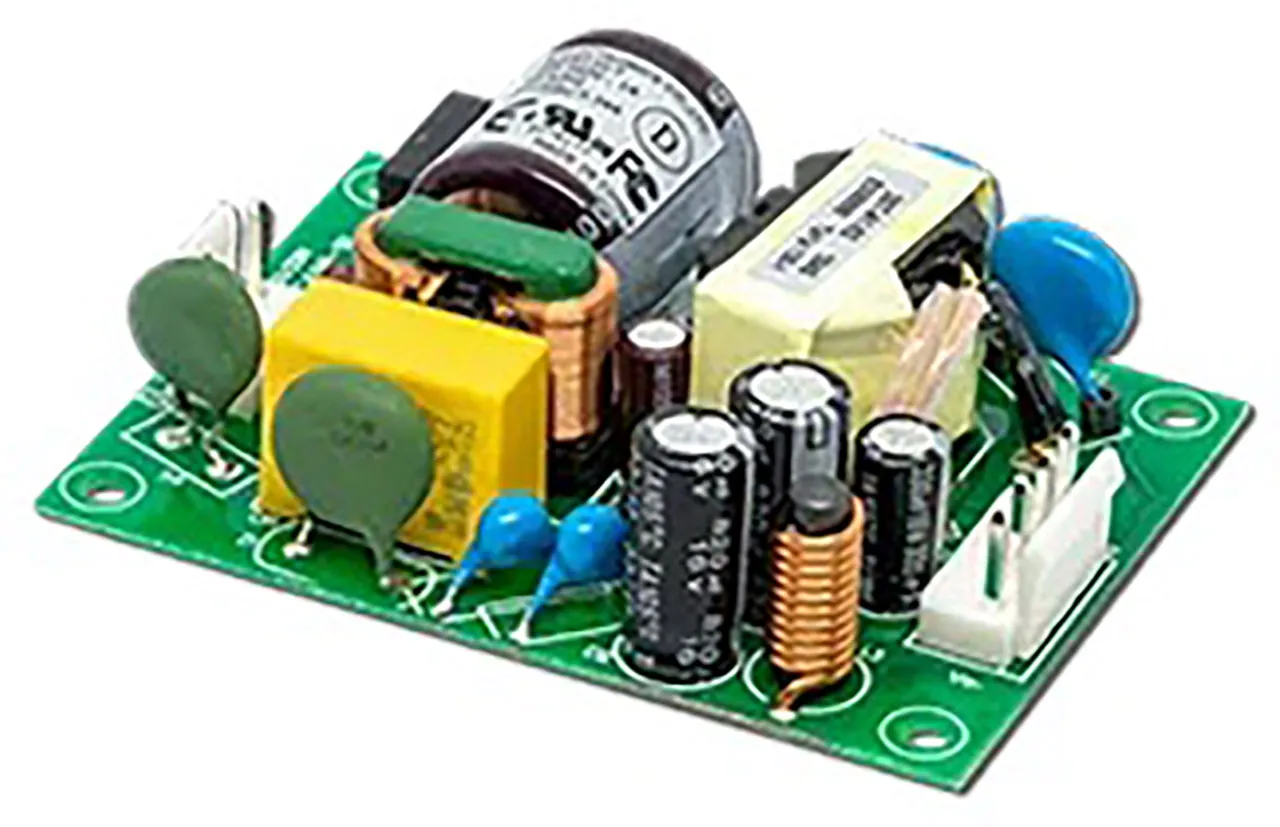

Open Frame AC-DC Power Supply 40W 48V 830mA Water JST-XH Connector Class 2
Product Identification
Product Type:AC-DC Open Frame Power Module
Manufacturer Series:CFM41S
Compliance
Agency Approvals: CE, CUL, D, EN, FCC, UL
Dimensions & Appearance
Style:Open Frame
Height:0.941 in.
Width:2 in.
Length:2.70 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1 A
Output
Number of Outputs:1
Output Connector Type:JST VHR or equiv.
Output Voltage:48 VDC
Additional Output Voltages (VDC):N/A
Output Current:0.83 A
Features
PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000VAC
Efficiency:90%
Power Rating:40 W
