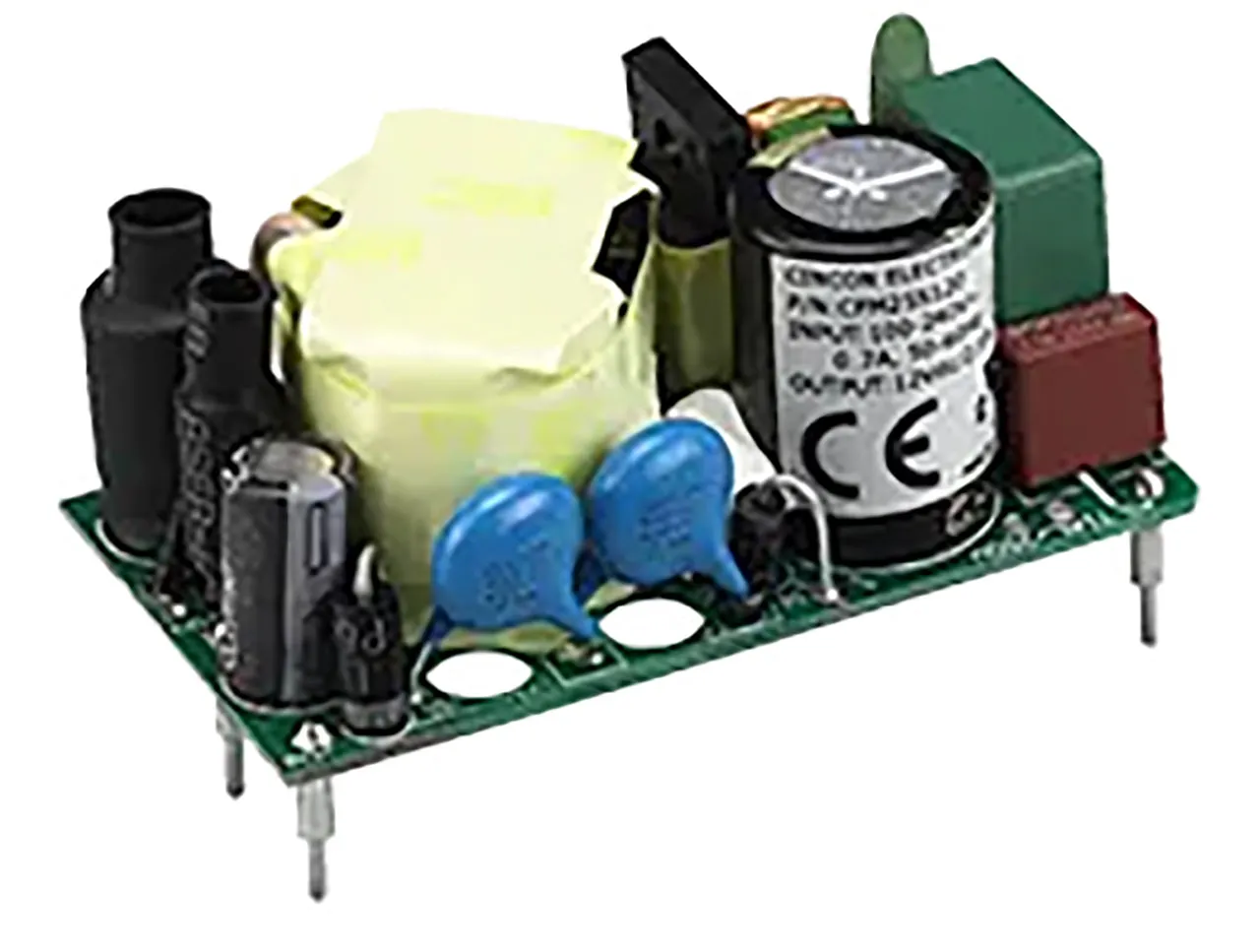

Open Frame AC-DC Power Supply 20W 12V 2100mA PCB Mount Class 2 Peak Load 2x Rated Current
Product Identification
Additional Feature:Peak Load 2x Rated Current
Product Type:Open Frame AC-DC Power Module
Manufacturer Series:CFM25S
Compliance
Agency Approvals: CE, CUL, D, EN, FCC, TUV, UKCA, UL
Dimensions & Appearance
Style:Open Frame
Height:0.77 in.
Width:1.10 in.
Length:2 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.7 A
Output
Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:2.10 A
Features
PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:4250VAC
Efficiency:84%
Power Rating:25 W
