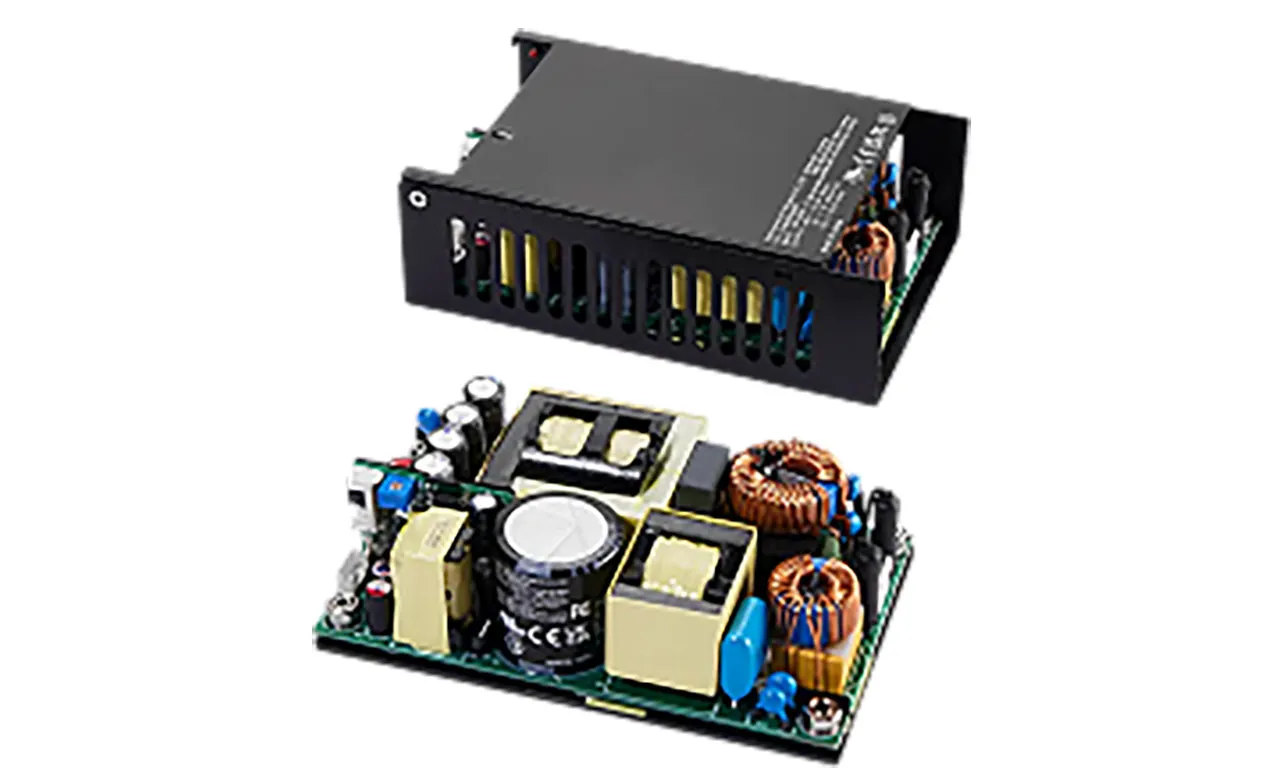

Open Frame AC-DC Power Module with Cover 18VDC 15.56A 280W PFC

Features

  • Universal Input Range 80 to 264 Vac
  • High Efficiency up to 94%
  • 3" x 5" Compact Size
  • Class I
  • No Load Power Consumption<0.5W (PS-Off)
  • Approval IEC/EN/UL 62368-1
  • Approval EN 55032 47 CFR FCC Part 15
  • Active PFC Meets EN 61000-3-2
  • Meets IEC/EN 60335-1
  • High Power Density up to 17.3W/Inch3
  • 370W Natural 400W Conduction Convection
  • Over Temperature Protection
  • PS On/Off Remote Control
  • Power Good & Power Fail Signal
  • +5V Stand-by 12V Fan Output
  • Low Inrush Current

Overview

Product Identification

Manufacturer Series:CFM400S

Compliance

Agency Approvals: CE, CUL, EN, FCC, UKCA, UL

Dimensions & Appearance

Style:Open Frame with Cover
Height:1.67 in.
Width:3.43 in.
Length:5.35 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:6 A

Output

Number of Outputs:1
Output Connector Type:Connector
Output Voltage:18 VDC
Additional Output Voltages (VDC):N/A
Output Current:17.78 A

Features

PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:4000V
Power Rating:320 W
,
